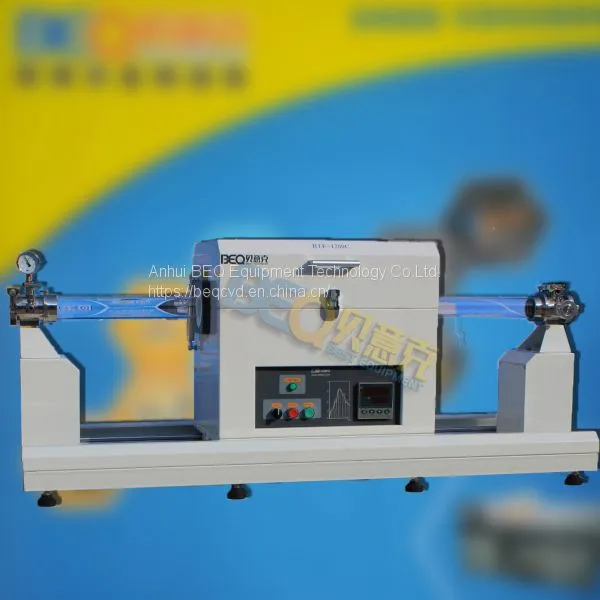

Single zone sliding rapid heating tube furnace, BTF-1200C-SL
Main features:
1) Can pull in the required high temp. to sample to get a rapid heating rate; also pull out the high temp. furnace and let the sample in the room temp. Environment to get a rapid cooling rate.
2) Used for graphene growing or CVD experiment with RTP requirement
Technical Parameters
|
Power
|
· Power rated: 3KW |
|
Voltage
|
· Voltage rated: AC208-240V 50/60HZ |
|
Working Temperature
|
· Max. Temperature: 1200 °C · Continuous working temperature: ≤1100℃ · Max. Heating/colling Rate: ≤20°C /S |
|
|
· PID automatic control and auto-tune function. · 30 programmable segments for precise thermal processing. · Built-in protection for the over-heated and broken thermocouple.
|
|
Length of heating zone
|
· 440mm |
|
Length of constant zone
|
· 200mm |
|
Heating Elements
|
· Resistance wire, Fe-Cr-Al Alloy doped by Mo |
Temperature Accuracy |
+/- 1 °C |
|
Processing tube
|
· Φ50/60/80/100*1200mm(optional) · Two tube blocks are included for blocking heat radiation generated from tube center， must be fully inserted into the furnace chamber before heating in the correct position(quartz or ceramic optional).
|
|
Dimensions
|
· Furnace size : 1500*380*620mm(L*W*H without tube & flange)
|
|
Net Weight
|
130kg |
|
|
· KF25 quick clamp flange
|
|
Vacuum Pressure
|
· 10^-1pa can be achieved by mechanical pump · 10^-4 pa can be reached by molecular pump
|
|
Warranty
|
One year limited warranty with lifetime support (Such consumable parts as tube, quartz block, and O-rings, etc. are NOT supported by the warranty)
|
|
Compliance
|
· CE Certified
|
