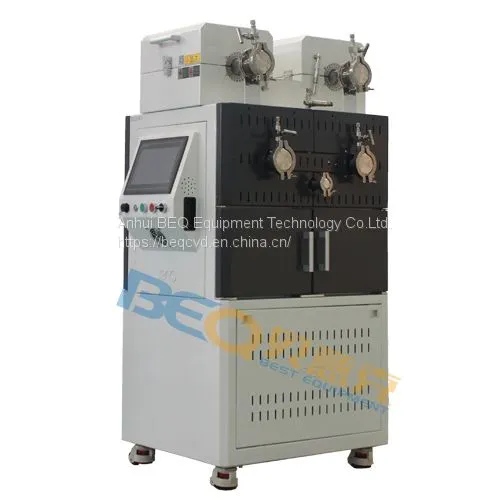

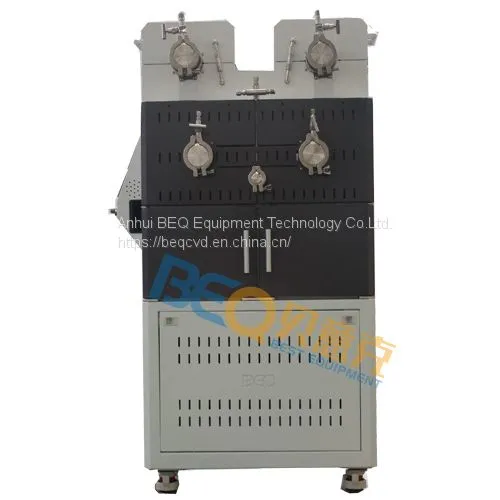

Multi-channels 8 Tube Furnace

US$ 15000 - 30000 MOQ: 1 Set

Key Specifications

Business Type:

Manufacturer

Year Established:

2012

Overseas Office:

Yes

Anhui BEQ Equipment Technology Co.Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

7 days

Integrated 8 furnaces in one unit

Main features：

Save space and time：

1) 8 furnaces are integrated to save lab space.

2)Under the same test conditions, 8 devices work simultaneously under different process conditions, greatly improving efficiency.

Data collection is more accurate and convenient：

1) Under the same test environment, the data collected by different test processes is more accurate.

2) set the USB interface, eight sets of test data one-key export, more convenient for later data processing.

More convenient and safer operation：

1) The touch screen controls 8 devices at the same time, the operation is more convenient; the data is more intuitive;

2)8 sets of equipment can realize parallel switching in series and series; realize synchronous and independent free operation.

3)optional vacuum, gas inlet port: simply to achieve functional expansion; more convenient operation, higher security.

More economical:

1)1 to 8: 8 sets of furnaces share a set of vacuum equipment.

2)8 devices can share the gas flow meter.

Technical Parameters

Tube furnace
Max. Temp	1200°C
zone length	Heating：230mm4 Constant：100mm4
Temperature Controller	l PID automatic control and auto-tune function. l 30 programmable segments for precise thermal processing. l Built-in protection for the over-heated and broken thermocouple. l Operation interface is 10 “ touch screen
Heating Elements	Resistance wire, Fe-Cr-Al Alloy doped by Mo
Temperature Accuracy	+/- 1 °C
Processing tube	Material:high purity quartz Size:50*600mm
Muffle furnace
Max. Temp	1100°C
chamber	100100100mm,1L*4
Temperature Controller	l PID automatic control and auto-tune function. l 30 programmable segments for precise thermal processing. l Built-in protection for the over-heated and broken thermocouple. Operation interface is 10 “ touch screen
Heating Elements	Resistance wire, Fe-Cr-Al Alloy doped by Mo
Power	12KW
Voltage	220V
