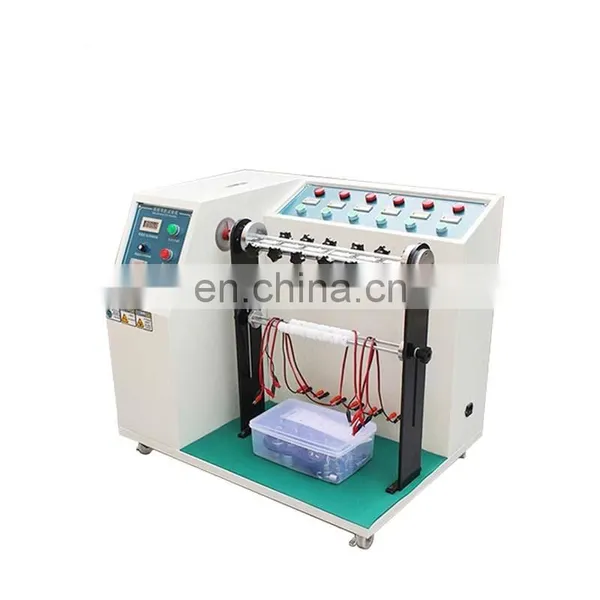

Cable Pull Testing Machine/Power Cord Bending WIre Flexing Tester

Standard wooden case

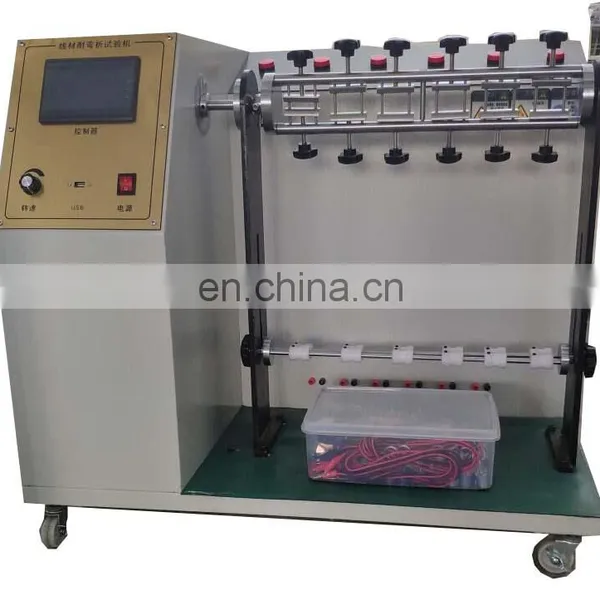

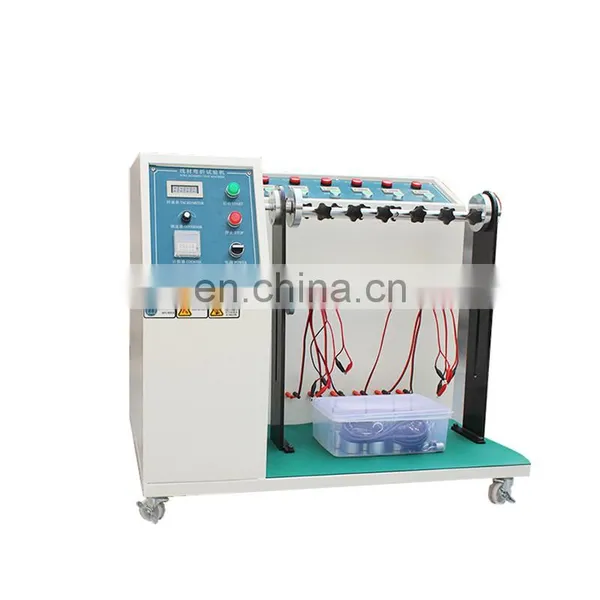

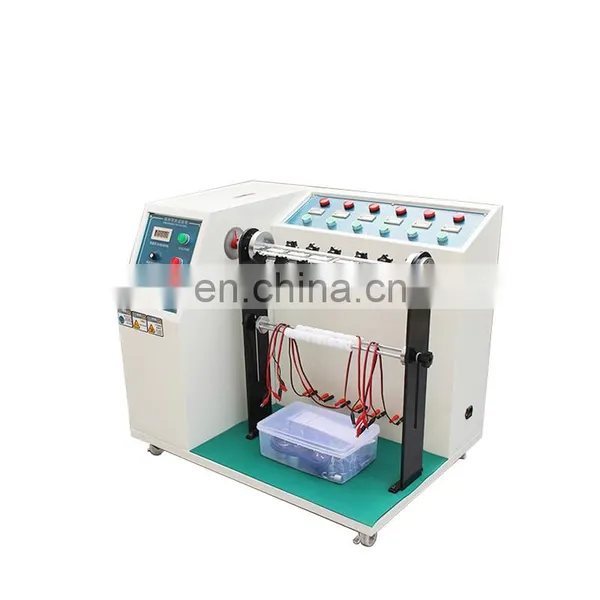

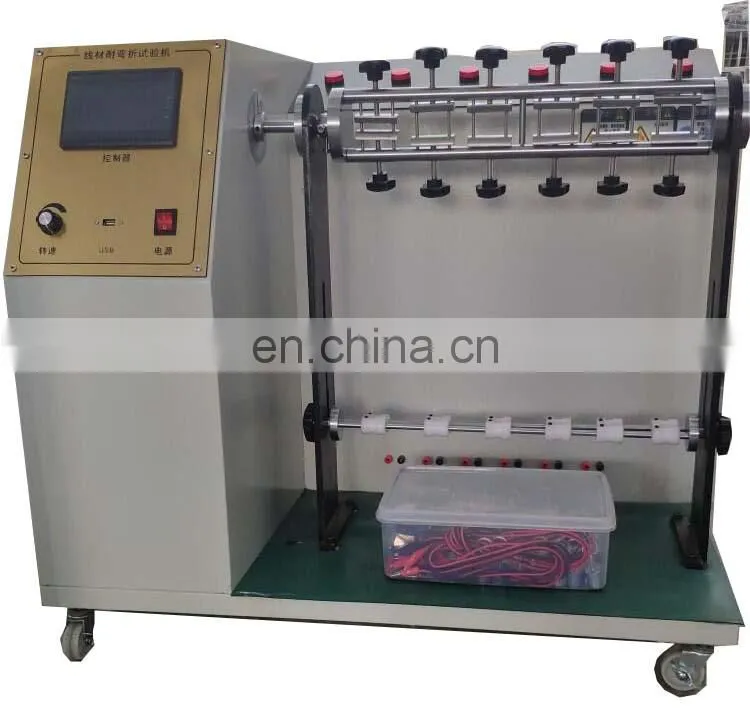

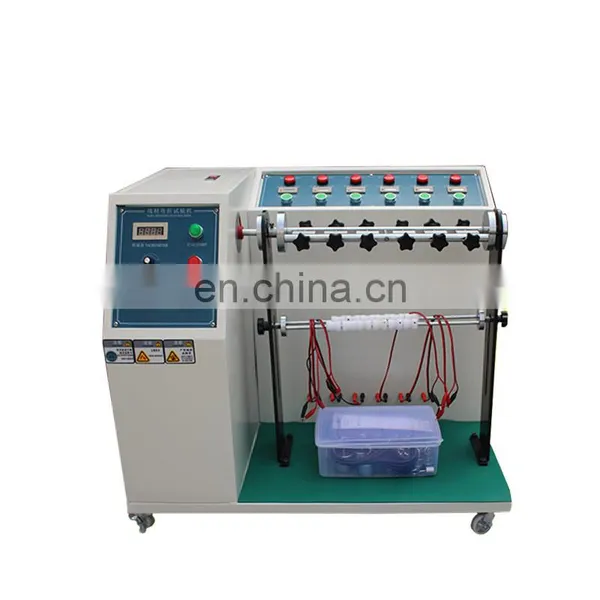

cable pull testing machine/Power Cord Bending WIre Flexing Tester

This test machine complies with the requirements of UL817 and other related standards "General safety requirements for cord components and power cords". Applicable to the relevant manufacturers and quality inspection departments to bend the power line and DC line test.

This machine is specially designed to test the folding strength of the plug lead wire and cable. The speed is transmitted by the photoelectric sensor to the digital display meter. The value can be read by directly adjusting the stepless speed controller.

Experiment method

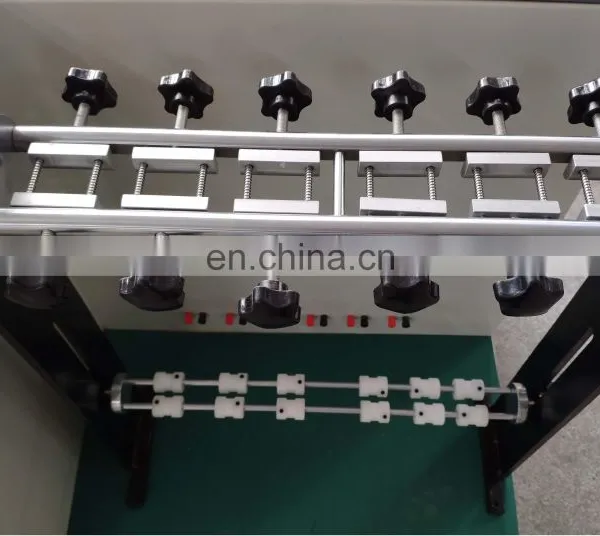

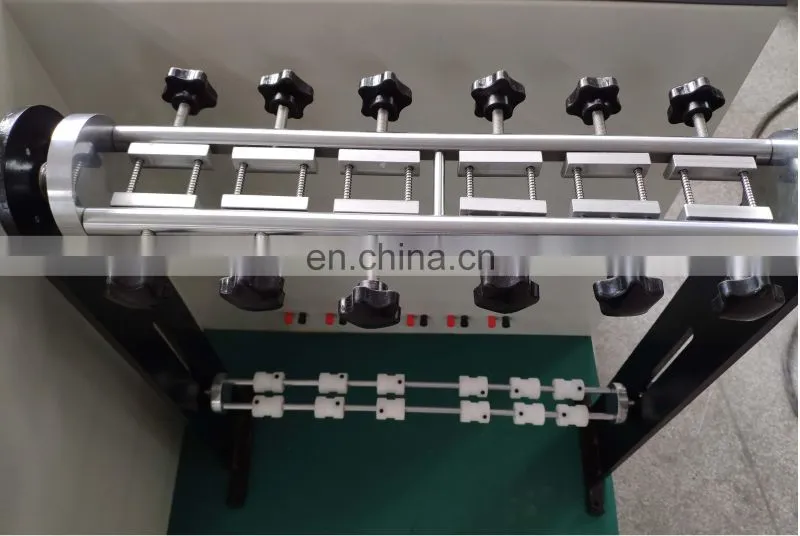

The test method is to fix the sample on the fixture and add a certain load. The fixture swings left and right. After a certain number of times, check the disconnection rate, or when it is unable to be energized, check the total number of counts, and stop working by itself;

Index

Test rate: 10-60 times / min adjustable

Detection function: continuity detection

Bending times: 0-999999 can be preset

Weight: 50100200300500g each 4

Volume: 85*60*75cm

Counting capacity: 999999

Host size:(length * width * height): about 800* 650 *800mm;

Total power: about  200 W/220V/50HZ

Weight: 100kg

Station

6 plug lead tests at a time

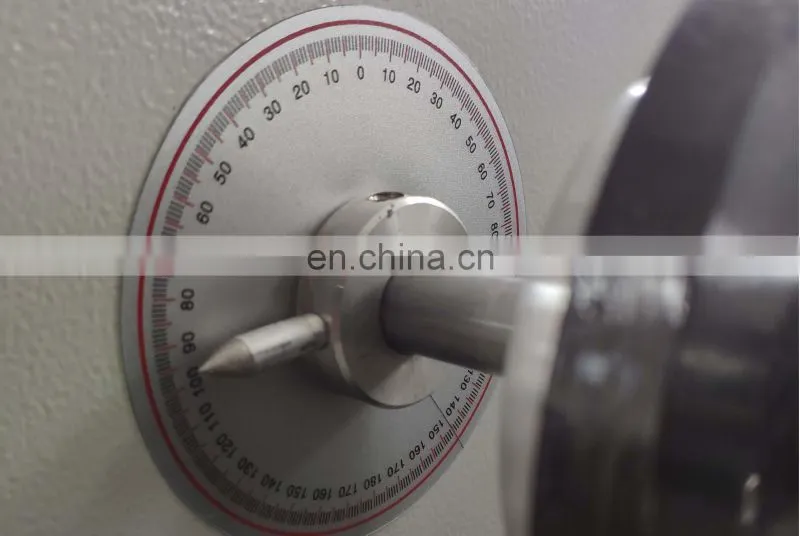

Bending angle:

10-180 degrees adjustable

About the after sale service:

Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

About the production time:
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

About the install:
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
