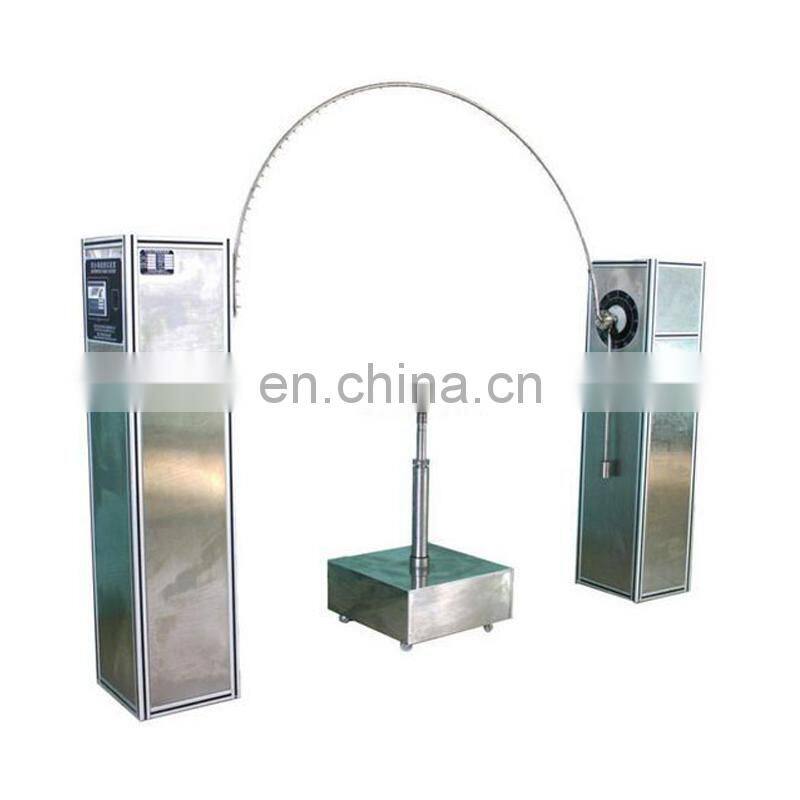

Environmental Water Ingress Protection Rain Shower Test Machine

Application:

IPX34 water spray test equipment is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4. It is used for the waterproof test of the electrical equipment.

The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.

The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved. It is also equipped with clean water filtration unit to prevent the pinhole from jamming.

Describtion
(1)IPX3 and IPX4 Oscillating Tube Tester meets the requirements of IEC 60529 and other major standards.

(2)A touch screen controller is used to establish the test and control oscillation range, speed, and time of test.

(3)Numerous tubes are available to meet differing specimen sizes.

(4)The tubes oscillate to almost 180 ° either side of vertical. The degree of oscillation can be set on the touch screen controller or one of the three pre-set values, 90 ° , 120 ° , or almost 180 ° , can be selected.

(5)he oscillating tube tester is one of several methods used to test the water protection capabilities of enclosures for electronic items that are expected to be exposed to rain or water spray.

(6)The oscillating tube will have spray holes over 120 ° of the tube for IPX3 and over the full 180 ° for IPX4. In IPX3 the tube will oscillate to 60 ° either side of the vertical. For IPX4 the tube travels through an angle of almost 360 ° The specimen needs to be placed within 200mm of the tube.
