IPX 8 water pressure test machine deep water test waterproof

fibre board,Non-fumigation

IPX 8 water pressure test

It is used to test the protective performance of appliances with waterproof performance requirements (ipx8).

Ipx8 can prevent water intrusion and diving impact during submergence, and ensure no damage due to water inflow under the condition of indefinite submergence of the instrument with specified water pressure;

Ipx8 continuous diving test; test equipment: test conditions and test time shall be in accordance with industry standards.

The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rain conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.

Standard

IEC60529:2001 "DeSCees of protection provided by enclosures (IP Code)", GB4208-2008 "Enclosure Protection Level (IP Code)" 14.2.8 and GB7000.1 "Lamps Part 1: General Requirements and Tests" 9.2.9 Terms and conditions.

Feature:

1. Applicable to IPX8 testing of products.

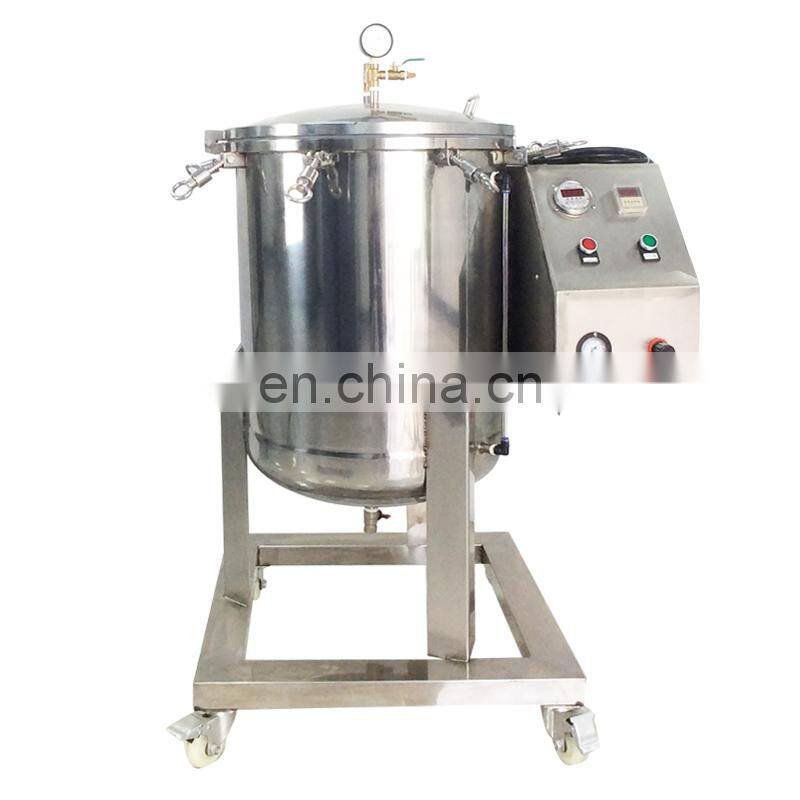

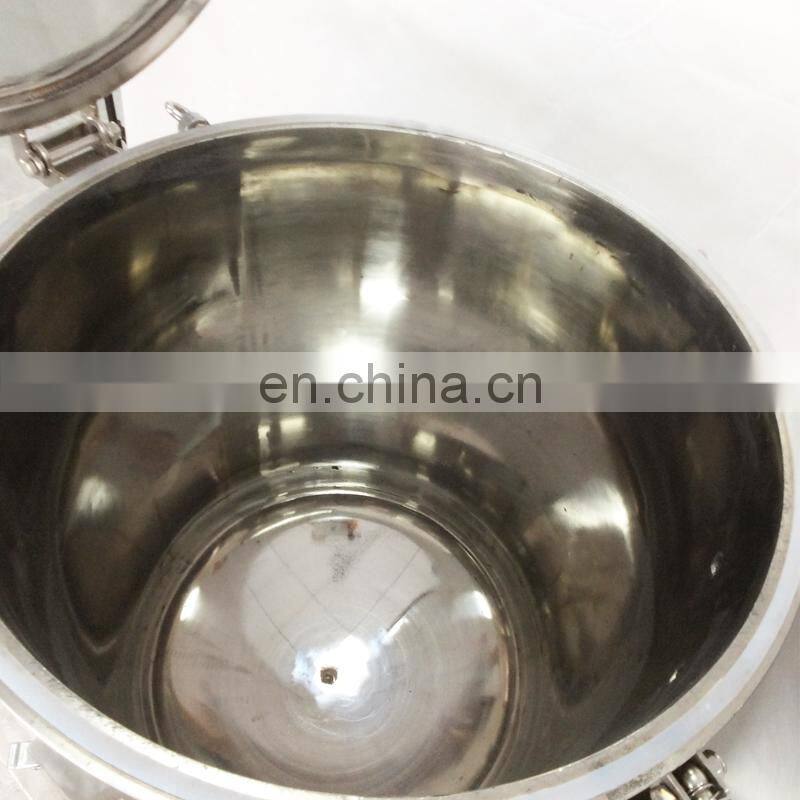

2, IPX8 pressure immersion test device tanks all use SUS304 # stainless steel plate high-precision overall sub-arc welding, outer mirror polishing, inner layer rough throw, beautiful appearance, convenient cleaning and durability.

3, special silicone sealing ring (elasticity, never aging, the tube used for ten years).

4, the electronic control components are all imported LG, Panasonic, Omron, Anliang and other brands.

5, time control function, set the time 0-999 minutes, automatically stop when the set time is reached, and automatically drain the air inside the tank, the tester can open the can lid to take out the test sample.

6. The bottom of the tank body has a water inlet valve and a drain valve, and a 5 meter water hose is provided.

7, the base is equipped with 4 activities with brake casters, easy to move.

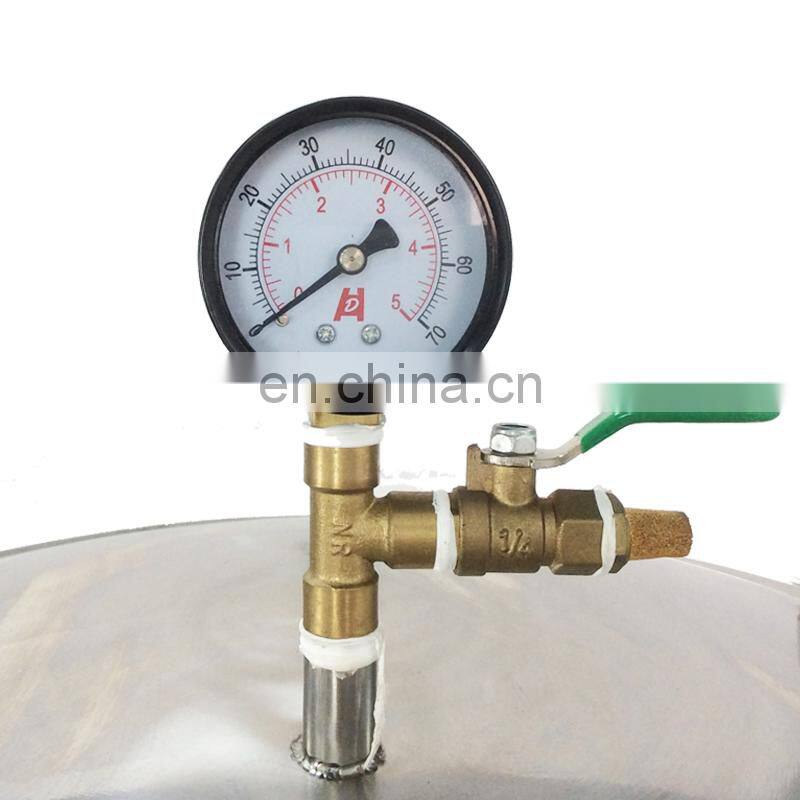

8. Manual type--Use domestic pressure gauge (accuracy class 1.6) to display the pressure inside the tank. When operating, adjust the pressure regulating valve to control the test pressure inside the tank. The pressure regulating valve uses the pressure regulating function to adjust the pressure. After that, it can maintain stable test pressure.
