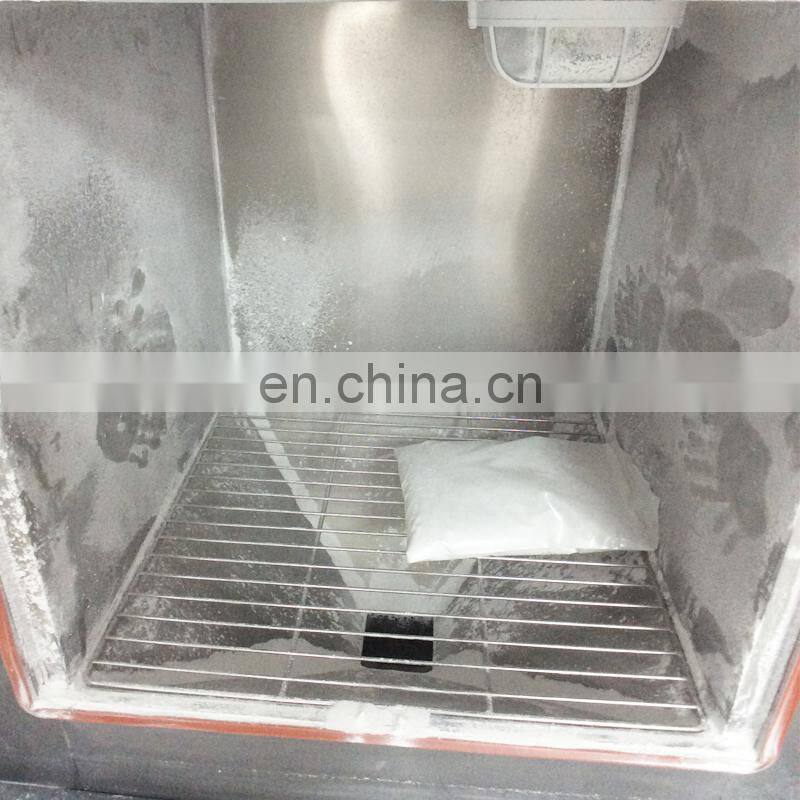

Sand and Dust Test Chamber Tightness Test High Quality Test

 Features:
1. The structure design of the test system is advanced and reasonable, in line with: GB2423, GB4706, GB4208, DIN.
2. The main functional components of the test box are equipped with world famous brand configuration, advanced and reliable technical principles, and the best control of noise and energy saving - its performance can replace similar foreign products.
3, color touch screen man-machine interface, programmable controller, machine operation automation control.

Capacity for you choice

Inner size :216L W600*H600*D600mm

Inner size:512L W800*H800*D800mm

Inner size:1000L  W1000*H1000*D1000mm

Performance parameter
Test environmental conditions: Ambient temperature is +5~+28°C, relative humidity ≤85%
testing method: GB2423, GB4706, GB4208, DIN
Box temperature: 15-45 ° C
Relative humidity inside the box: 45%~75% RH
Net nominal wire diameter: 50um
Nominal spacing between lines: Not more than 70um
Air flow rate: ≤2m/s
Dust blowing time: 0~9999.9h can be set
sensor: Test box temperature sensor: PT100, baking dust temperature sensor: PT100
Vibration time: 1~9999min adjustable
Test time: 1min~99h59min
Dust blowing time: Control of blown vortex air pump, dust vibration motor and test time
Blowing cycle: Continuous, periodic blowing, optional time setting
Shock time: Vibration and stop vibration time are automatically alternated
Dust system: 1. High-temperature nickel-chromium wire, rapid heating
2. PT100 temperature sensor, PTD+SSR control, plus temperature switch protection
Dust blowing system: 1. Vortex air pump, low noise, strong power
2. Overcurrent protection device to prevent damage caused by poor working conditions

Cabinet material:
1. Outer material: high-quality color steel plate electrostatic spraying
2. Liner material: high quality heat resistant cold resistant stainless steel plate

Test box door: Single hinged door (left hinge, right handle when facing the box) Silicone rubber tight seal with large viewing window and stainless steel wiper

Test box door:
Single hinged door (left hinge, right handle when facing the cabinet) Silicone rubber tight seal with large viewing window and stainless steel wiper

Environmental conditions:
1. Temperature: 5 ° C ~ 28 ° C
2. Relative humidity: ≤ 85%
3. Air pressure: 86kPa ~ 106kPa
