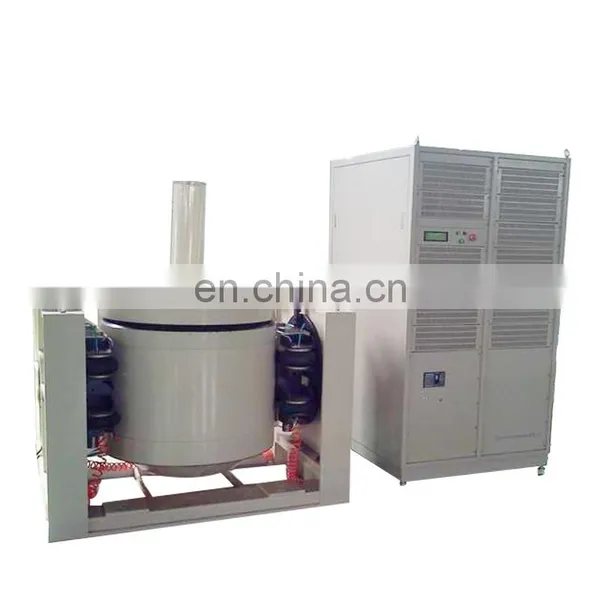

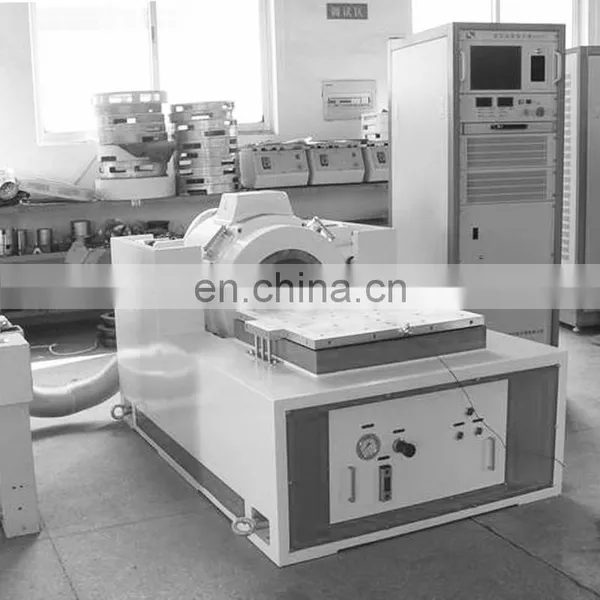

Mini mining equipment Shaker Table for Laboratory testing
- 1000 Set / Sets per Month
- T/T Credit Card
You May Like
-
10000n Electrodynamics Mechanical Vibrator Shaker/Vibration Test System For Sale
-
China Supplier Mini Shaker Table/ Laboratory Shaking Table for Lab Test
-
Laboratory Simulation Electro-dynamic Vibration Test Machine Price
-
Ce Marked Electrodynamics Vibration Shaker
-
New Electrodynamic Shaker For Mobile Phone Vibration Test Performed Ista Iec Standard
-
Hongjin series mini electrodynamic vibration shaker
Product Details
| Brand Name | Hongjin | Place of Origin | Guangdong, China | |
| Model Number | HY-ZD-150D | Power | Electronic |
Wooden package,Non-fumigation
Product Description

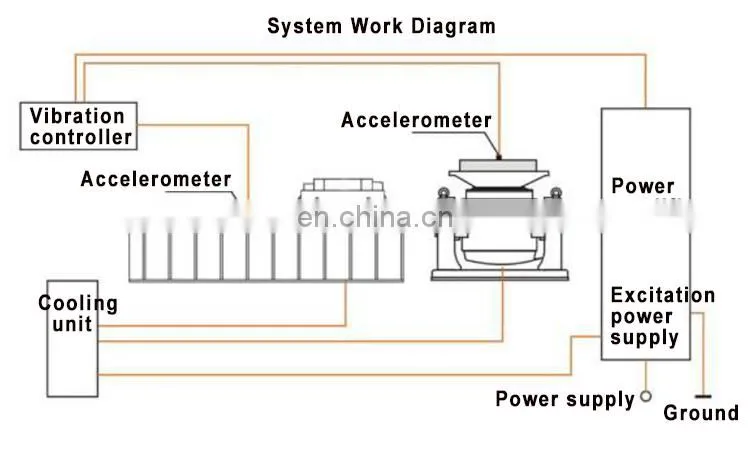

Test system composition

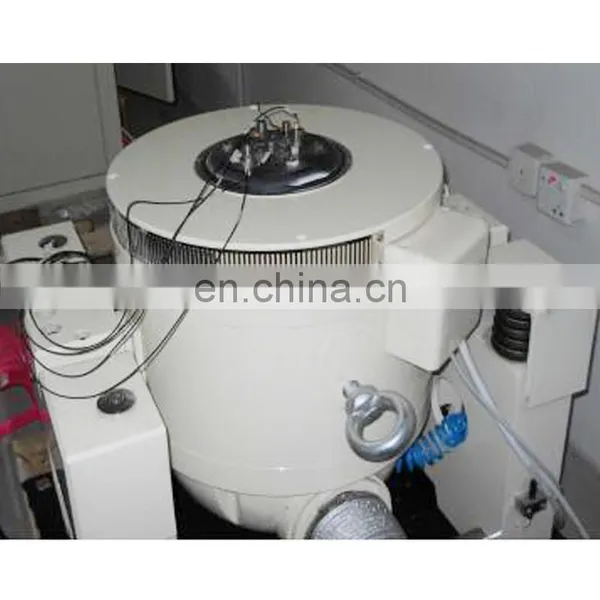

1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.
Technical performance of each part
(1) Vibration generator and power amplifi
| Maximum load | 120kg |
| Table weight | 1100kg |
| Mean time between failures | >3500 hours |
| Axial vibration isolation frequency | <3Hz |
| Magnetic leakage | ≤1mT |
| Impact displacement | 25mmP-P (maximum) |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 981m/s2 (100g) (no load) |
| Sinusoidal thrust | 2940N (300kg.f) |
| Random thrust | 2940N (300kg.f) |
| Impact thrust | 5880N(600kg.f) |
(2)Water smoothing station
| Table size | 600mm × 600mm (square) |
| Equivalent mass | About 30kg (connecting head) |
| Table thickness | 25 mm |
| Upper limit frequency | Sine 2000Hz, random 2000HZ |
| weight capacity | The test acceleration at 200kg is F=MA, the thrust must be less than F, |
| Countertop material | Aluminum alloy |
(3)Vertical expansion countertop
| Table size | 600mm × 600mm (method) |
| Equivalent mass | About 30kg (moving parts) |
| Table height | 140 mm |
| Upper limit frequency | Sine 1000Hz, random 1500HZ |
| Countertop material | Aluminum alloy |
