Home > Instruments & Meters > Test Instrument > Test Machine > Hot Selling Vibration Test Balancing Machine
US$ 10,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HONGJIN
Place of Origin:
Guangdong, China
Model Number:
GP-562
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Performance Environmental Vibration Testing DeviceUS$ 10,000 - 15,000MOQ: 1 Set -
Electrodynamic Vibration Shaker/vibration Tester/vibration Test MachineUS$ 900 - 900MOQ: 1 Set
-
Professional Vibration TesterUS$ 800 - 1,000MOQ: 1 Set
-
Sine and Random Large Displacement Triaxial Electrodynamic Vibration Test System for Electronic ProductsUS$ 10,000 - 15,000MOQ: 1 Set
-
Vibration Test System, Lab Vibration Shaker Table Supplier,electrodynamic Vibrator Shaker TableUS$ 100,000 - 119,000MOQ: 1 Set
Brand Name
HONGJIN
Place of Origin
Guangdong, China
Model Number
GP-562
Power
Electronic
Product Description

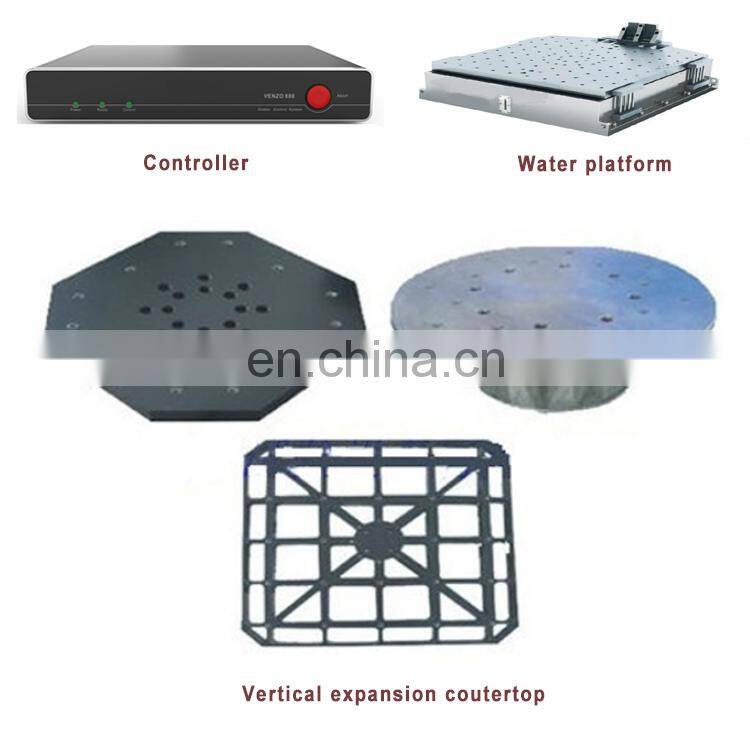

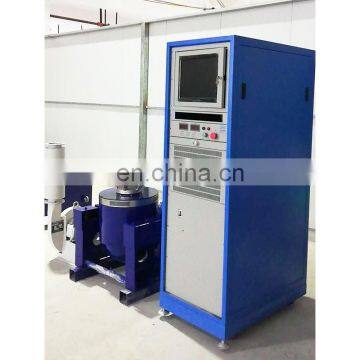

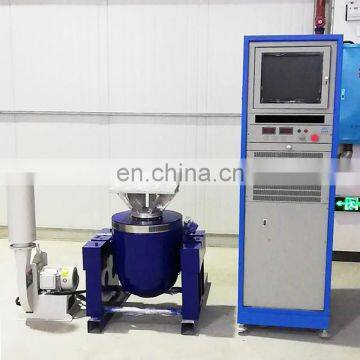

321)Test system composition
1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.
Technical performance of each part
(1) Vibration generator and power amplifi
| Maximum load | 120kg |
| Table weight | 1100kg |
| Mean time between failures | >3500 hours |
| Axial vibration isolation frequency | <3Hz |
| Magnetic leakage | ≤1mT |
| Impact displacement | 25mmP-P (maximum) |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 981m/s2 (100g) (no load) |
| Sinusoidal thrust | 2940N (300kg.f) |
| Random thrust | 2940N (300kg.f) |
| Impact thrust | 5880N(600kg.f) |
(2)Water smoothing station
| Table size | 600mm × 600mm (square) |
| Equivalent mass | About 30kg (connecting head) |
| Table thickness | 25 mm |
| Upper limit frequency | Sine 2000Hz, random 2000HZ |
| weight capacity | The test acceleration at 200kg is F=MA, the thrust must be less than F, |
| Countertop material | Aluminum alloy |
(3)Vertical expansion countertop
| Table size | 600mm × 600mm (method) |
| Equivalent mass | About 30kg (moving parts) |
| Table height | 140 mm |
| Upper limit frequency | Sine 1000Hz, random 1500HZ |
| Countertop material | Aluminum alloy |

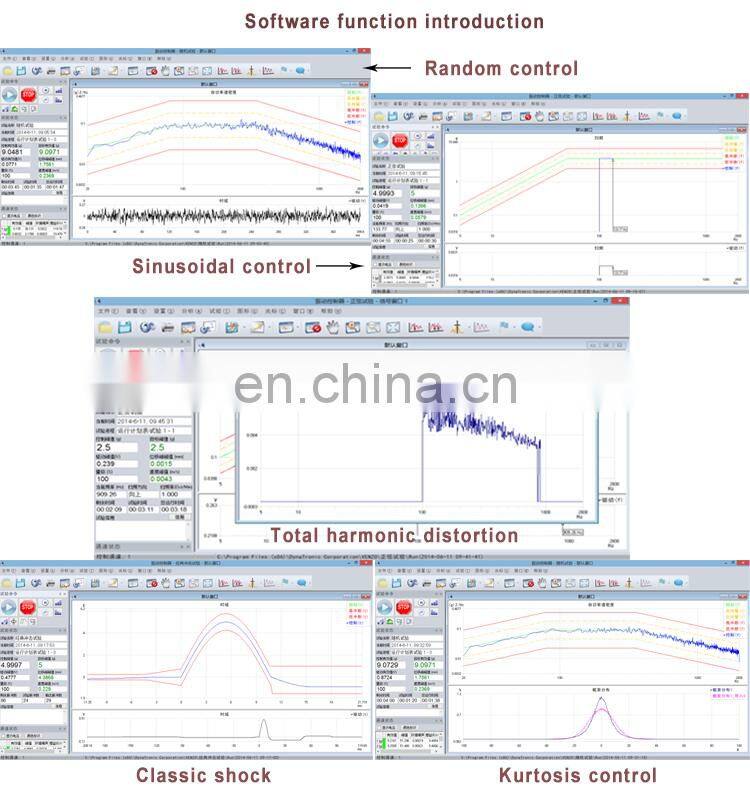

Software function introduction
