Introduction

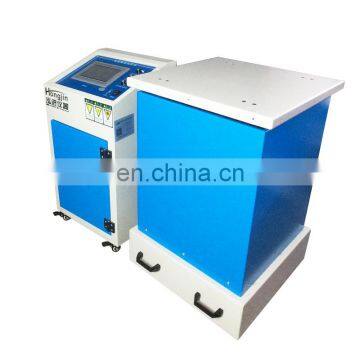

Electromagnetic vibration table is widely used in automotive parts, instrumentation, toys and other industries of product design, research and development, manufacturing process
In order to test the actual working condition and structural strength of the product, the collision and vibration generated in the transportation and use of the product are simulated.The control system adopts the color liquid crystal display with high sensitivity, direct touch option, intuitive and simple setting of test parameters, timely displaying the current execution program, timely displaying the current vibration frequency, and drawing frequency curve function.
Product features:
1. Precise control frequency, balance, long-term operation without drift;
2, with a single point, period, period of time timing;
3, stepless adjustment amplitude, with sweep frequency and fixed frequency function, adapt to the test requirements of different industries;
4. The built-in amplitude prediction program and amplitude modulation are easy;
5, four point synchronous vibration, table vibration uniform;
6. Add anti-interference circuit to solve the interference caused by strong electromagnetic field to the control circuit, and the table is non-magnetic and electrostatic.
7, the use of complex industrial materials manufacturing, precision processing, beautiful and generous table body, humanized operation and control, the use of special measurement and control module, so that the equipment work more stable.
Technical Parameters
| Vibration direction: | Vertical + horizontal + front and rear (automatic switching) |
| Table size (mm): | 500×500 |
| Amplitude (P-P): | 0-5mm (random, change with frequency, easy amplitude adjustment) |
| Sweep frequency: | 1-600HZ can be set arbitrarily (true standard back and forth frequency sweep) |
| Maximum acceleration: | 20g (random, change with frequency, easy to adjust the acceleration) |
| Indicator function: | FM, sweep, time, program |
| Precision: | Frequency can be displayed to 0.1Hz, precision 0.1Hz |
| Programmable function: | 5-600HZ, 1-8 segments can be arbitrarily set frequency and time |
| Multiplier work (0.1Hz): | 8 segments multiplied by 1 low to high frequency 2 high to low frequency 3 low to high then to low frequency / recyclable |
| Logarithmic power (0.1Hz): | 1 down to upper frequency 2 up to down frequency 3 down to up to down frequency -3 mode logarithm / recyclable |
| Vibration waveform: | Sine wave |
| time control: | Time can be set |
| power: | 1.2KW |
1.What's your MOQ?
At present we haven't strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer located in Dongguan. You will be welcomed to visit our factory or we also can share our factory vedio for you at any time.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.
4. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.
5. We haven't do business before, how can I trust your company and machine?
We are a factory with more than 13 years and without amy complaints on Alibaba. and our machine have exported to many countries and have a good feedback.
6. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, we also can arrange the shuttle bus for you to our factory.
7. Does your product have CE certification ?
Yes, we not only have the CE certification,but also have the FCC,ISO,etc.
8. If there is not any size meet my need, can I customiz ?
Of cause, we are the 13 years factory that with the rich experience in custom made service,not only can provide the customiz serivice,but also can provide the professional advice.
9.How is the after-sales service?
Our support is guaranteed for 12 months.
For all my customers, we will help you repair. Send us questions through text, images or videos, and we will tell you about them and help you fix them.
If the machine parts are damaged during the warranty period, we can send you a new machine parts free of charge. We have English specifications, online service personnel, video teaching of machine operation, and our machine operation is very simple.
10. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
