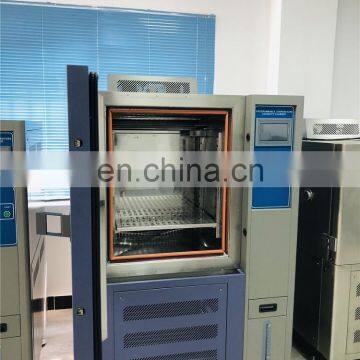

Temperature and Humidity Climate Testing Chamber
Climatic Chamber Application :
The High and Low temperature chamber test machine simulates different environmental condition. It's appropriate for testing material performance, such as resist heat, resist dryresist humidity and resist cold. That can define performance of material.
Specification
| Model | TH-80(A-F) | TH-150(A-F) | TH-225(A-F) | TH-408(A-F) | TH-800(A-F) | TH-1000(A~F) |
| Internal size WxHxD(cm) | 40x50x40 | 50x60x50 | 60x75x50 | 60x85x80 | 100x100x80 | 100x100x100 |
| External size WxHxD(cm) | 120x165x115 | 130x170x125 | 140x185x130 | 165x195x155 | 185x200x175 | 190x210x185 |
| Weight (about) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
Technical parameter
| Temperature range | Low temperature: A: +25 °C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High temperature: 100°C(150°C) | |||||
| Humidity range | 20%~98% R.H. (10%~98%R.H); (5%~98% R.H is a special selection condition) | |||||
| Distribution accuracy | 0.1P 0.1%R.H./±2.0P ±3.0%R.H. | |||||
| Temp and humi control accuracy | ±0.5t) ±2.5%R.H. | |||||
| Heating/cooling time | Heating about: 3°C/min Cooling: 1°C /min | |||||
| Internal and external materials | The inner and outer boxes are made of SUS304# stainless steel plate | |||||
| Insulation material | High temperature resistant high density ethyl chloroformate foam insulation material | |||||
| cooling system | Air-cooled / single-stage compressor (-20°C); two-stage compressor (-40°C - 70 °C) | |||||
| Safety device | No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection | |||||
| power supply | AC220V 50/60Hz & 1 # AC380V 50/60Hz3§ | |||||
Test Standard:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Climatic Chamber Characteristics:
1.High and Low temperature chamber test machine Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.High and Low temperature chamber test machinecontrol temperature&humidity well-distributed, precisely and steady.
3.High and Low temperature chamber test machine Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
