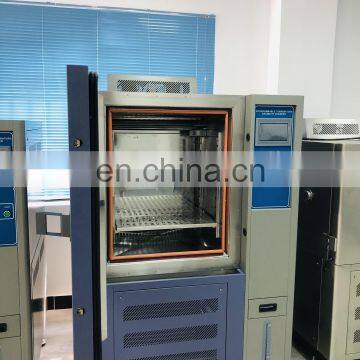

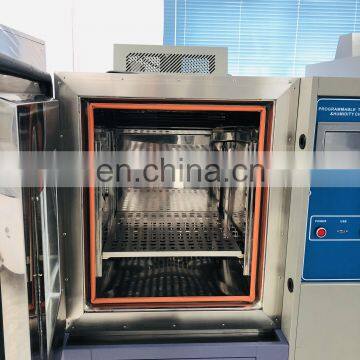

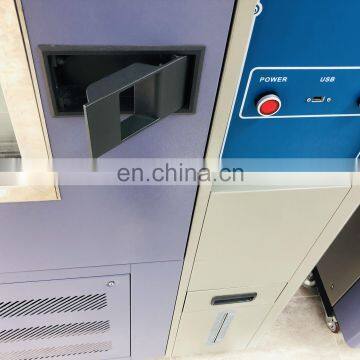

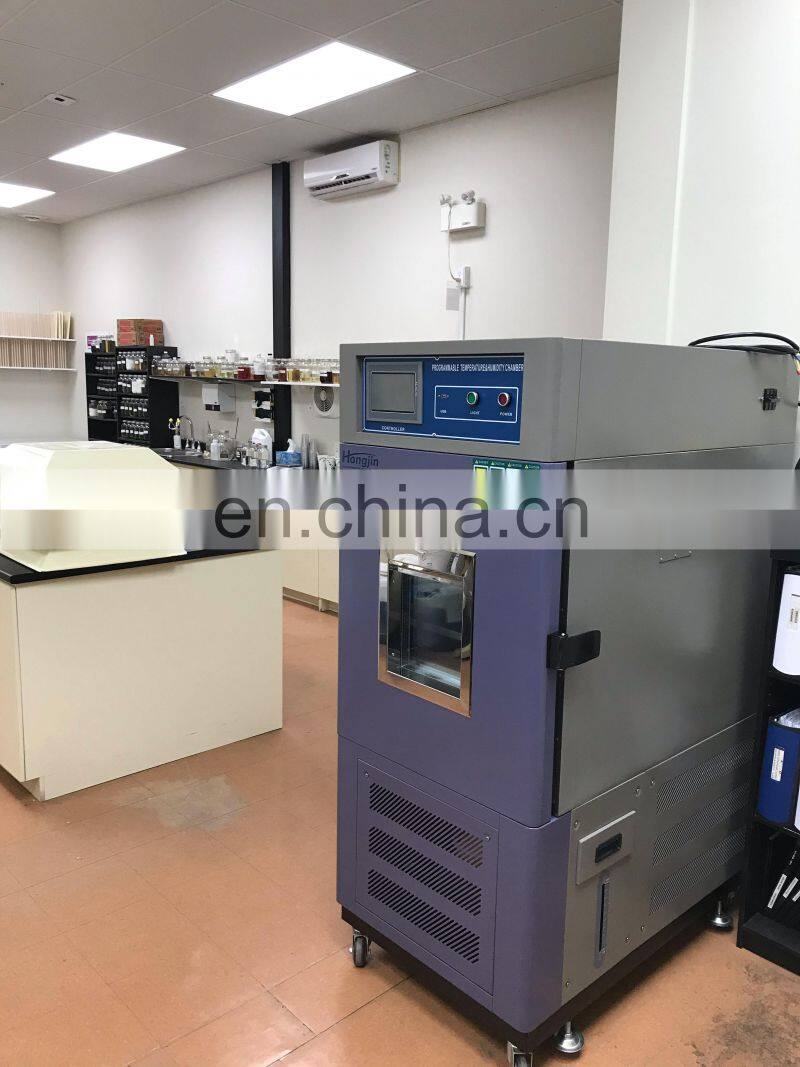

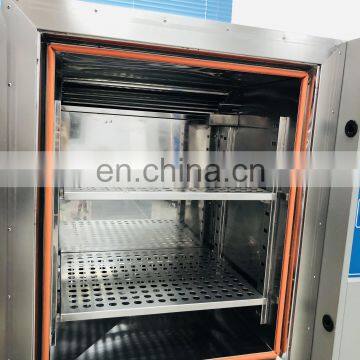

Temperature and Humidity Chamber for Temperature and Humidity Test
US$ 3,000 - 4,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hongjin
Place of Origin:
Guangdong, China
Model Number:
HY-TH-150CH
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
For Lab Test Temperature and Humidity Control Instrument With Good PriceUS$ 3,000 - 3,800MOQ: 1 Set -
Easy to Control Ipx4 Water Resistance Test Chamber With Good GuaranteeUS$ 3,000 - 3,800MOQ: 1 Set
-
FCC Certification Climatic Chamber CustomizeUS$ 3,000 - 3,800MOQ: 1 Set
-
Certification Constant Temperature and Humidity Chamber With CE CertificateUS$ 3,000 - 3,800MOQ: 1 Set
-
Precision High Temperature Aging Testing Chamber Reo-72l With Great PriceUS$ 3,000 - 3,800MOQ: 1 Set
Brand Name
Hongjin
Place of Origin
Guangdong, China
Model Number
HY-TH-150CH
Power
Electronic
Temperature and humidity chamber
Introduction:
New Temperature and Humidity Test Chamber is widely applied for quality inspection for all types of electric products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries by constant high low temperature change, damp heat etc environment simulation reliability test.
Specification
| Model | TH-80(A-F) | TH-150(A-F) | TH-225(A-F) | TH-408(A-F) | TH-800(A-F) | TH-1000(A~F) |
| Internal size WxHxD(cm) | 40x50x40 | 50x60x50 | 60x75x50 | 60x85x80 | 100x100x80 | 100x100x100 |
| External size WxHxD(cm) | 120x165x115 | 130x170x125 | 140x185x130 | 165x195x155 | 185x200x175 | 190x210x185 |
| Weight (about) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
Technical parameter
| Temperature range | Low temperature: A: +25 °C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High temperature: 100°C(150°C) | |||||
| Humidity range | 20%~98% R.H. (10%~98%R.H); (5%~98% R.H is a special selection condition) | |||||
| Distribution accuracy | 0.1P 0.1%R.H./±2.0P ±3.0%R.H. | |||||
| Temp and humi control accuracy | ±0.5t) ±2.5%R.H. | |||||
| Heating/cooling time | Heating about: 3°C/min Cooling: 1°C /min | |||||
| Internal and external materials | The inner and outer boxes are made of SUS304# stainless steel plate | |||||
| Insulation material | High temperature resistant high density ethyl chloroformate foam insulation material | |||||
| cooling system | Air-cooled / single-stage compressor (-20°C); two-stage compressor (-40°C - 70 °C) | |||||
| Safety device | No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection | |||||
| power supply | AC220V 50/60Hz & 1 # AC380V 50/60Hz | |||||
