Climate Control Small Temp Humidity Cabinet
- T/T Credit Card
You May Like
Product Details
| Brand Name | HONGJIN | Model Number | HJ-7121 | |
| Power | Electronic |
standard wooden cases
Product Description
high-low temperature Environmental test cha

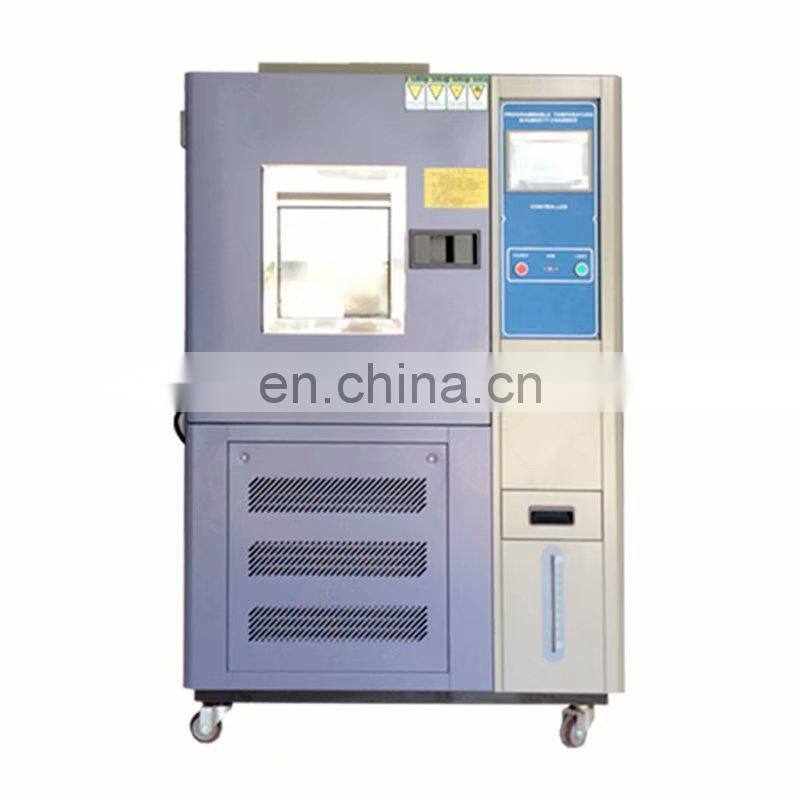

Lab high low temperature testing chamber
Application :Temperature Humidity Chamber
The High and Low temperature chamber test machine simulates different environmental condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Test Standard:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Characteristics:

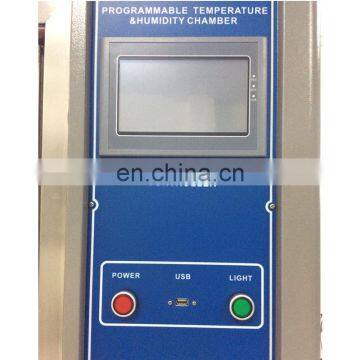

1.High and Low temperature chamber test machineUse the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.High and Low temperature chamber test machinecontrol temperature&humidity well-distributed, precisely and steady.
3.High and Low temperature chamber test machine Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Technical Parameters
Model | HY-TH-80 | HY-TH-150 | HY-TH-225 | HY-TH-408 | HY-TH-800 | HY-TH-1000 | |
Inner size: W×H×D(mm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 | |
External size W×H×D(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 | |
Temperature range | (low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) ( high :+100℃/+150℃) | ||||||
Temp analytic accuracy/uniformity | 0.1℃/±2.0℃ | ||||||
Temperature control accuracy | ±0.5℃ | ||||||
Heat; cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | ||||||
Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | ||||||
heat insulation material | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | ||||||
cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) | ||||||
Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system | ||||||
Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4 | ||||||
Compressor | Original France"Tecumseh"brand | ||||||
Controller | TEMI South Korea | ||||||
Power | AC220V 50/60Hz & 1,AC380V 50/60Hz 3 | ||||||
weight (kg) | 150 | 220 | 270 | 320 | 450 | 580 | |
FAQ:
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15 working days, if we have finished products, we can arrange delivery within 3 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
Company Profile
Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
