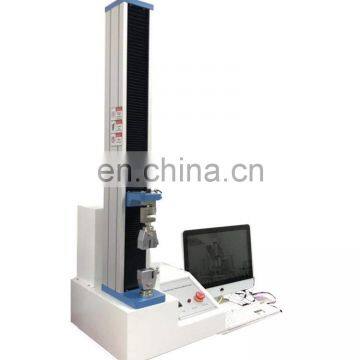

Home > Instruments & Meters > Test Instrument > Test Machine > Single Column Tensile Testing Machine
US$ 2,000 - 3,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hongjin
Place of Origin:
China
Model Number:
HY-UT-10PC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Easy to Control Fabric Tearing Tensile Tester With Low PriceUS$ 2,400 - 3,500MOQ: 1 Set -
Multifunctional Four Point Bending Equipment With Good PriceUS$ 2,400 - 3,500MOQ: 1 Set
-
CE Certification 250kn Universal Testing Machine CustomizeUS$ 3,500 - 11,000MOQ: 1 Box
-
Silicone Sponge Tensile and Compression Measuring MachineUS$ 3,500 - 15,000MOQ: 1 Set
-
200kg , Digital Displaying Tensile and Elongation Testing Machine for YarnUS$ 3,500 - 15,000MOQ: 1 Set
Brand Name
Hongjin
Place of Origin
China
Model Number
HY-UT-10PC
Power
Electronic
The main purpose:
Mainly used for testing of metal and non-metal materials, such as: rubber, plastic, wire and cable,textile, fiber optic cable, safety belt, leather belt composite, plastic profile, waterproof coil, steel pipe, copper, profile, spring steel.
Test Funcation:Stretching, compression, bending, shearing, peeling, tearing, two-point extension of bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, non-ferrous metal wires, etc. A variety of experiments.
Technical Parameters
| Maximum load | 500kgf |
| Accuracy level | Level 0.5 |
| Effective force range | 0.4% to 100% (0.5 level) |
| Force measurement accuracy | Within ±0.5% of the indicated value |
| Test machine resolution | he maximum load is 1/300000, the internal and external are not divided, and the resolution is unchanged. |
| Load cell | Basic configuration: pull and pressure sensor (maximum load)Extended configuration: multiple sensors can be added |
| Effective test width | 400mm (can be widened according to customer requirements) |
| Effective stretching space | 800mm (can be increased according to customer requirements) |
| Test speed range | 0.1~500mm/min |
| Displacement measurement accuracy | Within ±0.5% of the indicated value |
| Deformation measurement accuracy | Within ±0.5% of the indicated value (large deformation or small deformation can be selected according to customer requirements) |
| Test bench safety device | Electronic limit protection |
| Test bench lifting device | Fast/slow speed automatic control, can be jogged Manual or automatic selection, automatic or manual return the initialposition of the test at the highest speed after the test is over |
| Test bench return function | Manual or automatic selection, automatic or return to the position of the test at the highest speed the test is over |
| Overload protection | Over 10% of maximum load, automatic machine protection |
| Fixture configuration | Set of stretching fixtures |
| Host size | 1200*530*1800mm (length * width * height) |
| power system | Servo motor high precision ball scre |
| power supply | 220V/50HZ |
| power | 0.75KW (standard power motors are standard according to different force requirements) |
| Host weight | (about) 100 Kg |
multiple choice
click picture
touch control type |
Double column type(10kn-200kn for choice)
|
Hydraulic type |
