Home > Instruments & Meters > Test Instrument > Test Machine > High Accuracy Electronic Photovoltaic Tensile Machine
US$ 2,400 - 3,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HONGJIN
Place of Origin:
China
Model Number:
HY-2012B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen port Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Temperature Impact Sample Tensile Testing MachineUS$ 1,200 - 1,900MOQ: 1 Set -
HJ-D3 Digital Display Nonmetal Electronic Tensile TesterUS$ 2,000 - 2,500MOQ: 1 Set
-
Brand New Button Pull Test Equipment With CE CertificateUS$ 3,000 - 3,500MOQ: 1 Set
-
2019 Display Hydraulic Universal Steel Tensile Testing MachineUS$ 8,500 - 42,000MOQ: 1 Set
-
CE Certification Universal Testing Machine Price With Good QualityUS$ 9,500 - 20,000MOQ: 1 Set
Brand Name
HONGJIN
Place of Origin
China
Model Number
HY-2012B
Power
Electronic

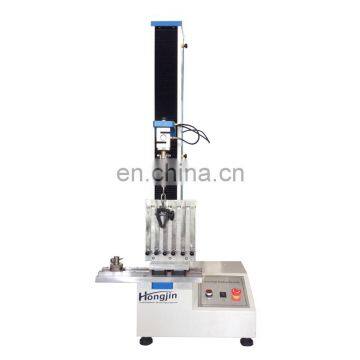

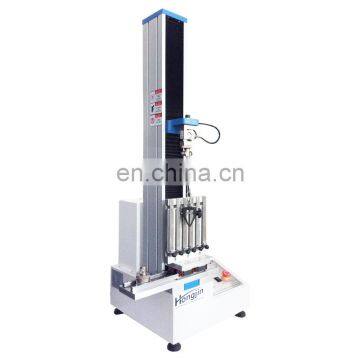

Photovoltaic cell gate line tensile testing machine
Product Description
Features
1.Applicable industries: photovoltaic cells, shingled cells, photovoltaic modules, photovoltaic materials, etc.;
2.Test range: stretching, peeling, bending resistance, compression resistance, shearing, etc.;
3.Load range: 0-200N0-2000N;
4.Measuring stroke: 350mm1000mm;
5.Measurement accuracy: 0.5 level;
6.Business model: factory direct sales;

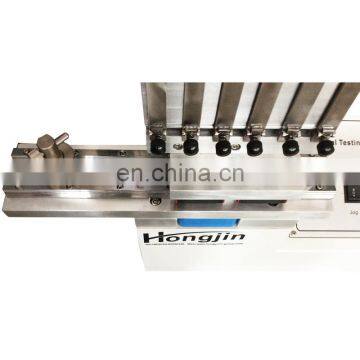

7.Cell and grid peel tester
Product parameters
| 1. Test force selection: | 10N, 20N, 50N, 100N, 200N; |
| 2. Accuracy level: | better than 0.5 level |
| 3. Load measurement range: | 0.2% & mdash; 100% FS; |
| 4. The allowable error limit of the test force indication value: | |
| 5, force control rate adjustment range: 0.01-10% FS / S; | 1/± 500000 of the maximum test force; |
| 6, deformation measurement range: | 0.2% & mdash; 100% FS; |
| 7. Deformation indication error limit: | ± within 0.50% of the indication value; |
| 8, deformation resolution: | 0.0001mm |
| 9. Displacement indication error limit: | ± within 0.5% of the indication value; |
| 10, displacement resolution: | 0.0005mm |
| 11, force control rate adjustment range: | 0.01-10% FS / S; |
| Force control rate control accuracy: | set value of ± 1% or less; |
| Deformation rate adjustment range: | 0.02 & mdash; 5% FS / S; |
| Deformation rate control accuracy: | ± within 1% of the set value; |
| Displacement speed adjustment range: | 0.001 & mdash; 500mm / min |
| Displacement rate control accuracy: | when the rate is <5mm/min, the set value is within +1.0%; when the rate ≥ 5mm/min, the set value is within +0.5%; |
Constant force, constant deformation, constant displacement control range | 17, : 0.5% - 100% FS |
| Effective test width: | 200<b> </b>x200mm |
| 20, effective stretching space distance: | 350mm |
| 21, the size of the host appearance (long & times; width & times; high): 850 & times; 300 & times; 250 (mm) | |
| 22, the use of power: | single-phase 220V 50Hz 500W; |
| 23, machine weight: | about 50kg; |
