Universal Tensile Strength Testing Machine with good price for Metal

Name: Universal Tensile Strength Testing Machine with good price for Metal
Brand: Hongjin
Price: USD $3,500 - 11,000 / Set

FOB Price

USD $3,500 - $11,000 / Set

1 Set(Min.Order)

Supply Ability 3 Set / Sets per Month
Port Shenzhen or Customer choose
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Hongjin	Place of Origin:	China	Model Number:	HY-UT-10PC
Power:	Electronic

Packaging Details

Wooden package,Non-fumigation

Product Description

Universal Tensile Strength Testing Machine

Main uses

It is mainly suitable for testing of metal and nonmetallic materials, such as rubber, plastic, wire and cable, optic fiber cable, safety belt, belt, leather composite belt, plastic section, waterproof roll, steel pipe, copper,sectional material, spring steel, bearing steel, stainless steel (and its high hardness steel), castings, steel plate and steel.Extrude, compression, bending, shearing, stripping, tearing, two-point extension (with additional extensometer) and so on. The machine is designed by mechanical and electrical integration,which is mainly composed of force sensor,transmitter, microprocessor, load driving mechanism, computer and color inkjet printer.It has a wide and accurate loading speed anforce range.It has high precision and sensitivity for the measurement and control of load and displacement.It can also carry out the automatic control test of isokinetic loading and constant velocity displacement.The floor type model and the painting process fully considered the principles of modern industrial design and ergonomics

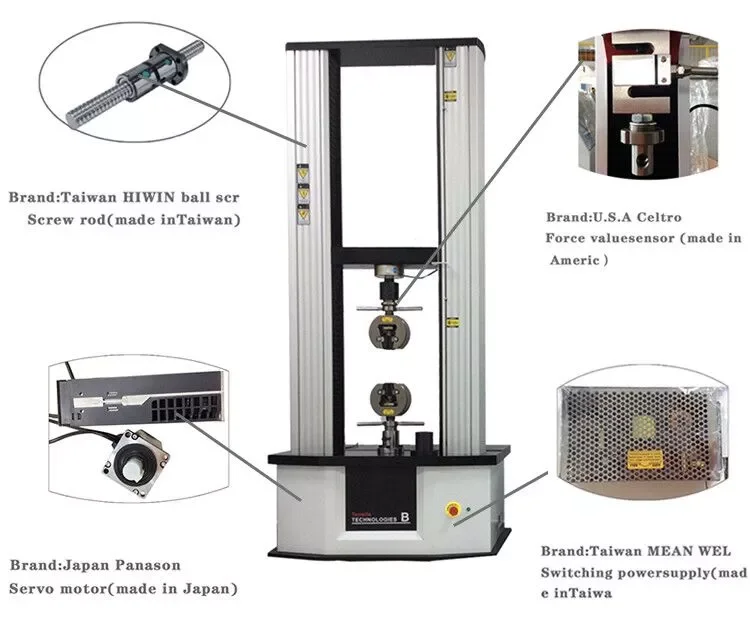

Universal Tensile Strength Testing Machine Host

The import photoelectric encoder is used to measure the displacement. The controller adopts the embedded single chip microcomputer structure, and thpowerful measurement and control software is built in. It integrates the functions ofmeasurement, control, calculation and storage. It has the function of automatically calculating the stress and elongation (to add the extensometer), tensile strengtand modulus of elasticity, automatic statistical results, automatically recording the force value or elongation of the maximum point, breaking point, the specified point, the dynamic display of the test process and the test curve by the computer, and the data processing, after the end of the experiment. The data can be reanalyzed and edited by the graphic processing module for curve magnification, and thereports can be printed. The performance of the products reaches the international advanced level.

Machine grip for choice

not only can custom made the shape but also the grip's material

Equipment function

1.Automatic zeroing

2.Auto return

3.Automatic disk saving

4.The testing process, measurement, display and analysis are all finished by microcomputer

5.The data and curves are displayed dynamically with the experimental process.

6. Experimental results can be re analyzed with arbitrary access.

7.After the test is completed, the force and deformation data of the test curve can be found at point by point.8.Program control and mechanical dual protection function;

9.Overload protection function;

10.Emergency shutdown function;

11.The tensile, compression, bending, shearing, adhesion, stripping and tear tests of the material can be carried out.

Performance parameter indicator

Maximum load	10KN(Selection of sensors with different specifications to achieve different accuracy)
Accuracy grade	0.5 class
Effective force measurement range	0.4%~100%(0.5 class)
Force measurement precision	Within±0.5%
Test machine resolution	Maximum load 1/300000,resolution invariant
Trans cell	Basic configuration: pull and pressure sensor (maximum load). Extended configuration: multiple sensors can be added
Effective test width	400mm(can be widened according to customer requirements)
Effective stretch space	800mm(can be higher by customer requirements)
Displacement measurement	Within±0.5%
accuracy	Within±0.5%
Test speed range	0.01~500mm/min
Deformation measurement accuracy	Within±0.5% ((large deformation or small deformation can be selected according to customer requirements)
Overload protection	More than 10% of the maximum load, automatic machine protection
Fixture configuration	A set of tensile fixture ,Shearing Accessories
Mainframe size	12005301800mm(long * width * high)
Power supply	220V/50HZ,
Power	0.75KW(according to the different force demand, standard different power motors)
Packed weight	300Kg(include all accessories)

Packaing

Company detai

FAQ

1.What's your MOQ?

At present we haven't strict policy for this, so welcome orders with any quantity.

2. Are you a factory or trade company?

We are a manufacturer located in Dongguan. You will be welcomed to visit our factory or we also can share our factory vedio for you at any time.

3. We are not professional for operation and installation of your machine?

While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.

4. How about packaging? If machine damaged, what should I do ?

Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.

5. We haven't do business before, how can I trust your company and machine?

We are a factory with more than 13 years and without amy complaints on Alibaba. and our machine have exported to many countries and have a good feedback.

6. If I want to visit your factory, is the traffic convenient ?

Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, we also can arrange the shuttle bus for you to our factory.

7. Does your product have CE certification ?

Yes, we not only have the CE certification,but also have the FCC,ISO,etc.

8. If there is not any size meet my need, can I customiz ?

Of cause, we are the 13 years factory that with the rich experience in custom made service,not only can provide the customiz serivice,but also can provide the professional advice.

9.How is the after-sales service?

Our support is guaranteed for 12 months.

For all my customers, we will help you repair. Send us questions through text, images or videos, and we will tell you about them and help you fix them.

If the machine parts are damaged during the warranty period, we can send you a new machine parts free of charge. We have English specifications, online service personnel, video teaching of machine operation, and our machine operation is very simple.

Company Profile

Hongjing Test Instrument Co., Ltd.

Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
