Home > Products > Tensile testing machine > For lab test Strength Peel Test Machine with good guarantee

For lab test Strength Peel Test Machine with good guarantee

Name: For lab test Strength Peel Test Machine with good guarantee
Brand: HONGJIN
Availability: InStock

FOB Price

US$ 3,500 - 11,000 / Box

1 Box(Min. Order)

Port Guangzhou Shenzhen or decided by customer
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HONGJIN		Place of Origin	Guangdong, China
Model Number	HY-UT-50PC

Packaging Details

Wooden package,Non-fumigation

Product Description

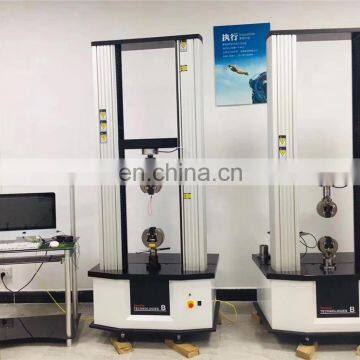

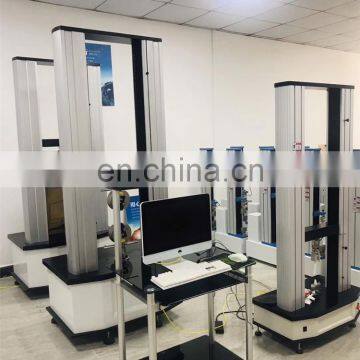

universal tensile testing machine

Main uses about the tensile testing machine

It is mainly suitable for testing of metal and nonmetallic materials, such as rubber, plastic, wire and cable, optic fiber cable, safety belt, belt, leather composite belt, plastic section, waterproof roll, steel pipe, copper,sectional material, spring steel, bearing steel, stainless steel (and its high hardness steel), castings, steel plate and steel.Extrude, compression, bending, shearing, stripping, tearing, two-point extension (with additional extensometer) and so on. The machine is designed by mechanical and electrical integration,which is mainly composed of force sensor,transmitter, microprocessor, load driving mechanism, computer and color inkjet printer.It has a wide and accurate loading speed anforce range.It has high precision and sensitivity for the measurement and control of load and displacement.It can also carry out the automatic control test of isokinetic loading and constant velocity displacement.The floor type model and the painting process fully considered the principles of modern industrial design and ergonomics

Host feature for the tensile machine

The import photoelectric encoder is used to measure the displacement. The controller adopts the embedded single chip microcomputer structure, and thpowerful measurement and control software is built in. It integrates the functions of measurement, control, calculation and storage. It has the function of automatically calculating the stress and elongation (to add the extensometer), tensile strengtand modulus of elasticity, automatic statistical results, automatically recording the force value or elongation of the maximum point, breaking point, the specified point, the dynamic display of the test process and the test curve by the computer, and the data processing, after the end of the experiment. The data can be reanalyzed and edited by the graphic processing module for curve magnification, and the reports can be printed. The performance of the products reaches the international advanced level.

Testing platform

The microcomputer hardware platform can accurately collect and process data in real time. The interface of measurement and control is gentle, intuitive, clear and clear, and easy to operate.

Test force measurement

Load measurement: high precision spokes load sensor and high performance measuring and amplifying system are adopted to ensure the high resolution of the test force. Multiple sensors can be configured according to user needs to achieve wide range of test forces. Displacement measurement:using the 2500P/R high precision photoelectric encoder and the precision screw coaxial rotation, through the digital circuit to realize the weighing power control system. The full digital servo controller is used to control the high performance step motor drive synchronous gear belt and drive the precision screw drive with two pairs of high precision without gap.It has the characteristics of stable load,good low speed performance, no gap, high transmission efficiency,low noise and smooth transmission.

Equipment function

1.Automatic zeroing

2.Auto return

3.Automatic disk saving

4.The testing process, measurement, display and analysis are all finished by microcomputer

5.The data and curves are displayed dynamically with the experimental process.

6. Experimental results can be re analyzed with arbitrary access.

7.After the test is completed, the force and deformation data of the test curve can be found at point by point. 8.Program control and mechanical dual protection function;

9.Overload protection function;

10.Emergency shutdown function;

11.The tensile, compression, bending, shearing, adhesion, stripping and tear tests of the material can be carried out.

Performance parameter indicator

Maximum load	10KN(Selection of sensors with different specifications to achieve different accuracy)
Accuracy grade	0.5 class
Effective force measurement range	0.4%~100%(0.5 class)
Force measurement precision	Within±0.5%
Test machine resolution	Maximum load 1/300000,resolution invariant
Trans cell	Basic configuration: pull and pressure sensor (maximum load). Extended configuration: multiple sensors can be added
Effective test width	400mm(can be widened according to customer requirements)
Effective stretch space	800mm(can be higher by customer requirements)
Displacement measurement	Within±0.5%
accuracy	Within±0.5%
Test speed range	0.01~500mm/min
Deformation measurement accuracy	Within±0.5% ((large deformation or small deformation can be selected according to customer requirements)
Overload protection	More than 10% of the maximum load, automatic machine protection
Fixture configuration	A set of tensile fixture ,Shearing Accessories
Mainframe size	12005301800mm(long * width * high)
Power supply	220V/50HZ,
Power	0.75KW(according to the different force demand, standard different power motors)
Packed weight	300Kg(include all accessories)
