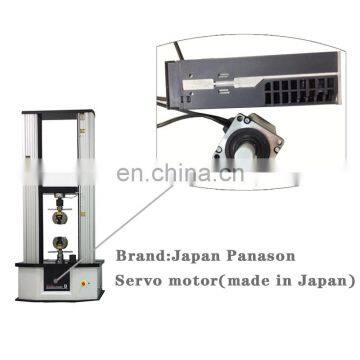

Electronic Rubber Tensile Extensometer Price

Tensile testing machine is suitable for testing of metal and nonmetallic materials, such as rubber, plastic, wire and cable, optic fiber cable, safety belt, belt, leather composite belt, plastic section, waterproof roll, steel pipe copper,sectional material, spring steel, bearing steel, stainless steel , castings, steel plate and steel.



Test items
Extrude, compression, bending, shearing, stripping, tearing, two-point extension



Performance parameter indicator

Maximum load	10KN (Different specifications of sensors have different precision)
Effective test width	400mm(can be widened)
Effective stretch space	800mm(can be higher by customer requirements)
Force measurement precision	Within±0.5%
Displacement measurement accuracy	Within±0.5%
Test speed range	0.01~500mm/min
Overload protection	More than 10% of the maximum load, automatic machine protection
Deformation measurement accuracy	Within±0.5%
Mainframe size	1200*530*1800mm(L * W* H)
Power supply	220V/50HZ,
Power	0.75KW
Packed weight	300Kg



Equipment function

1.Automatic zeroing

2.Auto return

3.Automatic disk saving

4.The testing process, measurement, display and analysis are all finished by microcomputer

5.The data and curves are displayed dynamically with the experimental process.

6. Experimental results can be re analyzed with arbitrary access.

7.After the test is completed, the force and deformation data of the test curve can be found at point by point. 8.Program control and mechanical dual protection function;

9.Overload protection function;

10.Emergency shutdown function;





Host feature
The import photoelectric encoder is used to measure the displacement. The controller adopts the embedded single chip microcomputer structure, and thpowerful measurement and control software is built in. It integrates the functions of measurement, control, calculation and storage.

It has the function of automatically calculating the stress and elongation (to add the extensometer), tensile strengtand modulus of elasticity, automatic statistical results, automatically recording the force value or elongation of the maximum point, breaking point, the specified point, the dynamic display of the test process and the test curve by the computer, and the data processing, after the end of the experiment.

Testing platform
The microcomputer hardware platform can accurately collect and process data in real time. The interface of measurement and control is gentle, intuitive, clear and clear, and easy to operate.

 1. Are your company a trading one or a factory?

Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China

2. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 12-month warranty after shipment.

Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,

If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.

3. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery

time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.

5. Do you have a branch company or service office in my country?
We have offices in the belowing:

Hangzhou Branch:

Address: Building 1, Haixiang Industrial Park, No. 1413 Moqianshan Road, Xiangfu Town, Gongshu District, Hangzhou, Zhejiang, China

6. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.

Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.

7. What about the services and product quality?

Service: ,Design service,Buyer lable service.

Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
