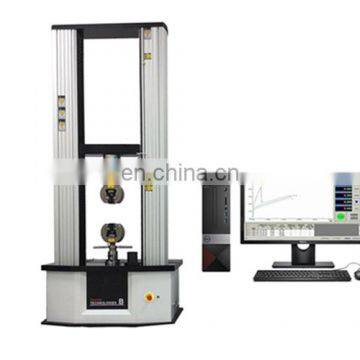

20kN 50kN 100kN Universal Testing machine for composite material coupons test
- Shenzhen port Guangzhou port
- T/T Credit Card
You May Like
-
50kN 100kN Universal Testing Equipment for Coupler scaffolds Metal Scaffolding Couplers Aluminium couplers
-
50kN 100kN Universal Testing Machine for Scaffolding Coupler EN 74 BS 1339
-
Slipping Failure Pull apart force Test for Metal Scaffolding Couplers Aluminium couplers
-
ISO 9969 Thermoplastic pipe Ring Stiffness Tester
-
HJ Series 600 kN Computerized Electromechanical Universal Testing Machine for metal tensile testing
-
HJ Series 5-50 kN metal or non-metal material usage Computerized Electromechanical Universal Testing Machine
Product Details
| Brand Name | HONGJIN | Place of Origin | Guangdong, China | |
| Model Number | HJ-D6 | Power | Electronic |
standard wooden cases
Product Description
Universal Testing Machine Main Uses
Extrude, compression, bending, shearing, stripping, tearing, two-point extension (with additional extensometer) and so on.
| Maximum load | 10KN(Selection of sensors with different specifications to achieve different accuracy) |
| Accuracy grade | 0.5 class |
| Effective force measurement range | 0.4%~100%(0.5 class) |
| Force measurement precision | Within±0.5% |
| Test machine resolution | Maximum load 1/300000,resolution invariant |
| Trans cell | Basic configuration: pull and pressure sensor (maximum load). Extended configuration: multiple sensors can be added |
| Effective test width | 400mm(can be widened according to customer requirements) |
| Effective stretch space | 800mm(can be higher by customer requirements) |
| Displacement measurement | Within±0.5% |
| accuracy | |
| Test speed range | 0.01~500mm/min |
| Deformation measurement accuracy | Within±0.5% ((large deformation or small deformation can be selected according to customer requirements) |
| Overload protection | More than 10% of the maximum load, automatic machine protection |
| Fixture configuration | A set of tensile fixture ,Shearing Accessories |
| Mainframe size | 1200*530*1800mm(long * width * high) |
| Power supply | 220V/50HZ, |
| Power | 0.75KW(according to the different force demand, standard different power motors) |
| Packed weight | 300Kg(include all accessories) |
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15 working days, if we have finished products, we can arrange delivery within 3 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
Company Profile
Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
