Products Description

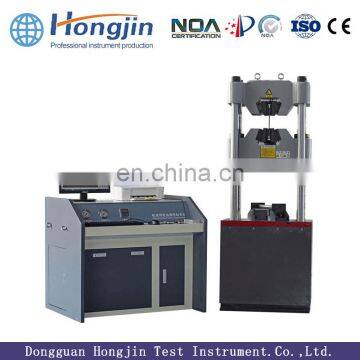

A hydraulic material testing machine that can perform various tests such as drawing, compression and bending. Hydraulic universal testing machine is used for tensile, compression, bending and shearing tests of various metals and non-metallic materials, as well as special tests of some products. The test operation and data processing meet the requirements of GB228-2010 room temperature material metal tensile test method and other standards.
Overview use
Hydraulic universal testing machine is mainly used for tensile, compression, bending, shearing and other mechanical properties of metal, non-metal, composite materials and products. It can also be used for testing and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users. Widely used in aerospace, machinery manufacturing, wire and cable, rubber and plastic, building materials and other industries, material inspection and analysis, is the scientific research institute, colleges and universities, industrial and mining enterprises, technical supervision, commercial arbitration and other departments of the ideal test equipment.
Max load (KN) | 100 | 300 | 600 | 1000 | |
Range | whole journey didn't sub-file ,equivalent 3 grade | ||||
Test force measuring range (KN) | 4%-100%FS | ||||
Test Force showed the relative error | ≤indicating value±1% | ||||
Test Force Resolution | 0.01kN | ||||
Displacement measurement resolution (mm) | 0.01 | ||||
Max tensile test space (mm) | 550 | 650 | 750 | ||
Max compression space (mm) | 380 | 460 | |||
Diameter of round specimen clamp jaw (mm) | Φ6-Φ26 | Φ13-Φ40 | |||
Thickness of flat specimen clamping jaws (mm) | 0-15 | 0-15/15-30 | |||
Maximum clamping width of the flat specimen (mm) | 70 | 75 | |||
Maximum clamping width of the flat specimen(Column number) | 2 | 2/4 | |||
Clamping method | Manual clamping | Automatic clamping/Manual clamping | |||
Shear specimen diameter (mm) | 10 | ||||
Upper and lower compression plate size (mm) | Φ160(option 204×204) | ||||
The maximum distance between the fulcrum bending | 450 | ||||
Space stretching from the two pillars distance | 450 | 550 | |||
Pump motor power (KW) | 1.1 | ||||
Beam moves up and down motor fixed rate (KW) | 0.75 | ||||
Net weight (Kg) | 1600 | 1800 | 2000 | 2600 | |
