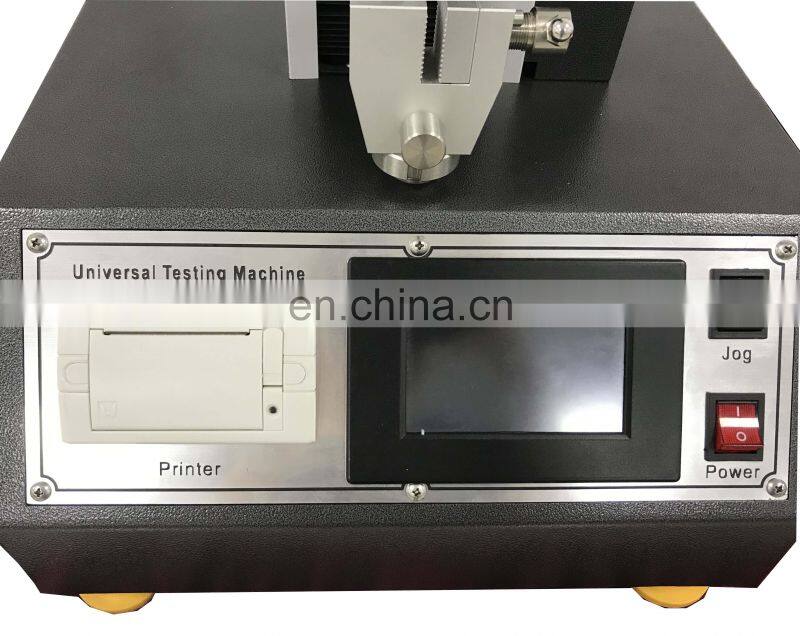

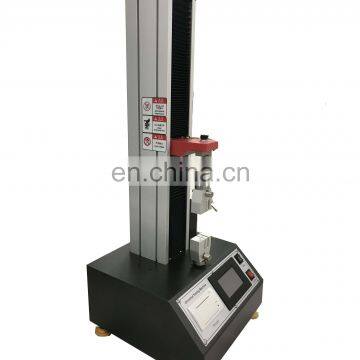

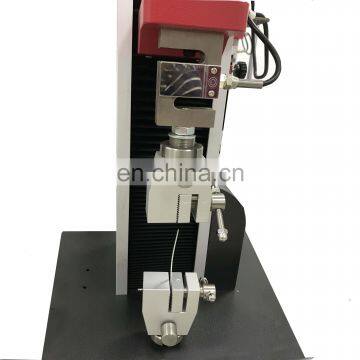

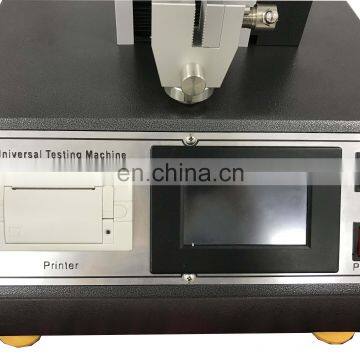

Universal testing equipment
This machine can test and analyze the mechanical properties of all kinds of metal, non-metal and composite materials. It is widely used in aerospace, petrochemical, mechanical manufacturing, plastic rubber, ceramic building materials, metal materials, construction engineering and other industries, as well as institutions of higher learning, scientific research institutions, technical supervision, quality inspection stations and other departments.
The parameters such as tensile, compression, bending, stripping, shearing, tearing, piercing, breaking, breaking and all kinds of high and low temperature tests can be carried out according to the GB/ISO/ASTM/JIS/DIN and other standards, which can detect the yield strength of the material, tensile (pressure, bending) strength, elongation and so on.
| structure type: | Single arm structure |
| Maximum test force (N): | 1000N |
| Test force level: | Level 1 |
| Test force measurement range: | 2%--100%FS |
| Test indication relative error: | ±1% of the indicated value |
| Force resolution: | 1/100000 |
| Displacement measuring device: | Photoelectric encoder |
| Displacement indication relative error: | ±1% of the indicated value |
| Displacement resolution (mm): | 0.01 |
| Displacement rate (mm/min): | 1-500 stepless speed regulation |
| Safety protection device: | Mechanical limit protection and software overload protection |
| Effective stretching space (mm): | 400 |
| Stretching fixture: | According to material selection |
| Mainframe dimensions (mm): | 420×280×680 |
| Host power: | 0.3KW/AC220V±10% |
| Host weight (KG): | 60 |
1.What’s your MOQ?
At present we haven’t strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer. You will be weclome to visit our facory or we also can let you see through video.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What’s more, we have professional engineers and they can solve all questions.
4. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven’t happened before, if happen, we will arrange replacement.
5. We haven’t do business before, how can I trust your company and machine?
We are a factory with more than 13 years and without amy complaints on Alibaba. and our machine have exported to many countries and have a good feedback.
6. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, if you come, I can give you a detail instruction.
7. Does your product have CE certification ?
Yes, all our products passed CE certification
8. If there is not any size meet my need, can I customiz ?
Yes, just provide me your detail requirement, we can do as yours.
