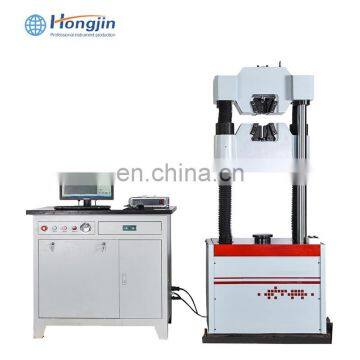

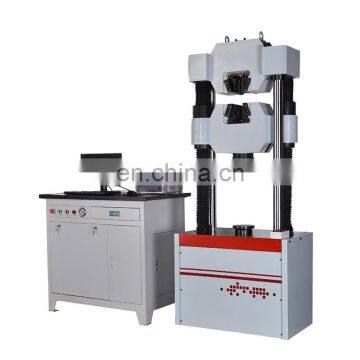

Lab Computerized Universal Tensile Strength Meter/Double Column Test Machine
US$ 3,500 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HONGJIN
Place of Origin:
Guangdong, China
Model Number:
HJ-D6
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen port Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precise PC Control Test Equipment Universal Tensile Testing MachineUS$ 3,500 - 15,000MOQ: 1 Set -
Film/plastic/pubber Strength Peel Force Testing Machine Lab Desktop Tensile Test InstrumentUS$ 3,500 - 15,000MOQ: 1 Set
-
Test Traction Vertical Test Machine CableUS$ 3,500 - 15,000MOQ: 1 Set
-
High Temperature Bending Strength Tester Universal Tensile Testing MachineUS$ 3,500 - 11,000MOQ: 1 Box
-
300 Degrees High Temperature Chamber Machine Material Tensile Testing Laboratory Equipment With Pneumatic GripUS$ 3,500 - 11,000MOQ: 1 Box
Brand Name
HONGJIN
Place of Origin
Guangdong, China
Model Number
HJ-D6
Power
Electronic
Product Description
Universal Testing Machine Main Uses
It is mainly suitable for testing of metal and nonmetallic materials, such as rubber, plastic, wire and cable, optic fiber cable, safety belt, belt, leather composite belt, plastic section, waterproof roll, steel pipe, copper,sectional material, spring steel, bearing steel, stainless steel (and its high hardness steel), castings, steel plate and steel.
tensile tester test items
Extrude, compression, bending, shearing, stripping, tearing, two-point extension (with additional extensometer) and so on.
Extrude, compression, bending, shearing, stripping, tearing, two-point extension (with additional extensometer) and so on.
Universal Tensile Tester Performance parameter indicator
| Maximum load | 10KN(Selection of sensors with different specifications to achieve different accuracy) |
| Accuracy grade | 0.5 class |
| Effective force measurement range | 0.4%~100%(0.5 class) |
| Force measurement precision | Within±0.5% |
| Test machine resolution | Maximum load 1/300000,resolution invariant |
| Trans cell | Basic configuration: pull and pressure sensor (maximum load). Extended configuration: multiple sensors can be added |
| Effective test width | 400mm(can be widened according to customer requirements) |
| Effective stretch space | 800mm(can be higher by customer requirements) |
| Displacement measurement | Within±0.5% |
| accuracy | |
| Test speed range | 0.01~500mm/min |
| Deformation measurement accuracy | Within±0.5% ((large deformation or small deformation can be selected according to customer requirements) |
| Overload protection | More than 10% of the maximum load, automatic machine protection |

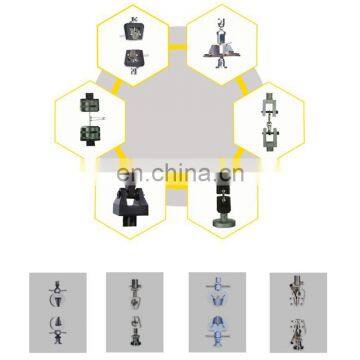

| Fixture configuration | A set of tensile fixture ,Shearing Accessories |
| Mainframe size | 1200*530*1800mm(long * width * high) |
| Power supply | 220V/50HZ, |
| Power | 0.75KW(according to the different force demand, standard different power motors) |
| Packed weight | 300Kg(include all accessories) |
Testing platform
The microcomputer hardware platform can accurately collect and process data in real time. The interface of measurement and control is gentle, intuitive, clear and clear, and easy to operate.
Universal Testing Machine Equipment Function
1.Automatic zeroing
2.Auto return
3.Automatic disk saving
4.The testing process, measurement, display and analysis are all finished by microcomputer
5.The data and curves are displayed dynamically with the experimental process.
6. Experimental results can be re analyzed with arbitrary access.
7.After the test is completed, the force and deformation data of the test curve can be found at point by point. 8.Program control and mechanical dual protection function;
9.Overload protection function;
10.Emergency shutdown function;
11.The tensile, compression, bending, shearing, adhesion, stripping and tear tests of the material can be carried out.
Company Information
Certifications
Customer Reviews
Packaging & Shipping
FAQ
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15 working days, if we have finished products, we can arrange delivery within 3 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
