Applications of Universal Testing Machine

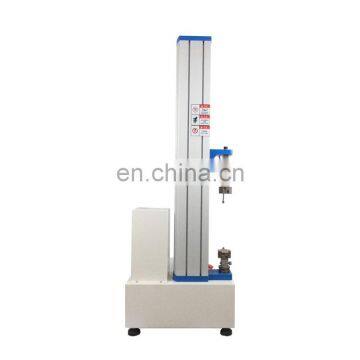

This computer controlled servo universal testing machine is suitable for tensile, peeling, tearing test of a variety of metals, non-metallic and composite materials, for mechanical testing and analysis according to GB, ISO, DIN, ASTM, JIS and other international standards.
Maximum load | 5000N |
Accuracy class | 0.5 class |
Effective range of force measurement | 0.4%~100%(0.5 class) |
Force measurement accuracy | Indicating value within ±0.5% |
Test machine resolution | Maximum load1/300000,resolution of the whole process remains the same |
Load sensor | Basic configuration: pull, pressure sensor (maximum load) 1pcs. Extended configuration: multiple sensors can be added |
Valid test width | 400mm(Can be widened according to customer requirement) |
Effective tensile space | 800mm(can heighten according to customer's requirement) |
Test speed range | 0.1~500mm/min |
Offset measurement accuracy | Indicating value within ±0.5% |
Deformation measurement accuracy | Indicating value within ±0.5%(Large deformation or small deformation can be selected according to customer requirements) |
Test platform safety device | Electronic limit protection |
Test platform lifting device | Fast/slow two speed automatic control, can point to move |
Test platform return function | Manual or automatic return to the initial position of the test at the highest speed |
Overload protection | Over 10% maximum load, automatic protection machine |
Fixture configuration | Stretch fixture one set |
Mainframe dimension | 1000*530*1000mm(long*width*height) |
Dynamical system | Servo motor high precision ball screw |
Power supply | 220V/50HZ |
Power | 0.75KW(According to different force value requirement, different power motor is standard) |
Mainframe weight | 80 Kg |
1.What's your MOQ?
At present we haven't strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer. You will be weclome to visit our facory or we also can let you see through video.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.
4. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.
5. We haven't do business before, how can I trust your company and machine?
We are a factory with more than 13 years and without amy complaints on Alibaba. and our machine have exported to many countries and have a good feedback.
6. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, if you come, I can give you a detail instruction.
7. Does your product have CE certification ?
Yes, all our products passed CE certification
8. If there is not any size meet my need, can I customiz ?
Yes, just provide me your detail requirement, we can do as yours.
