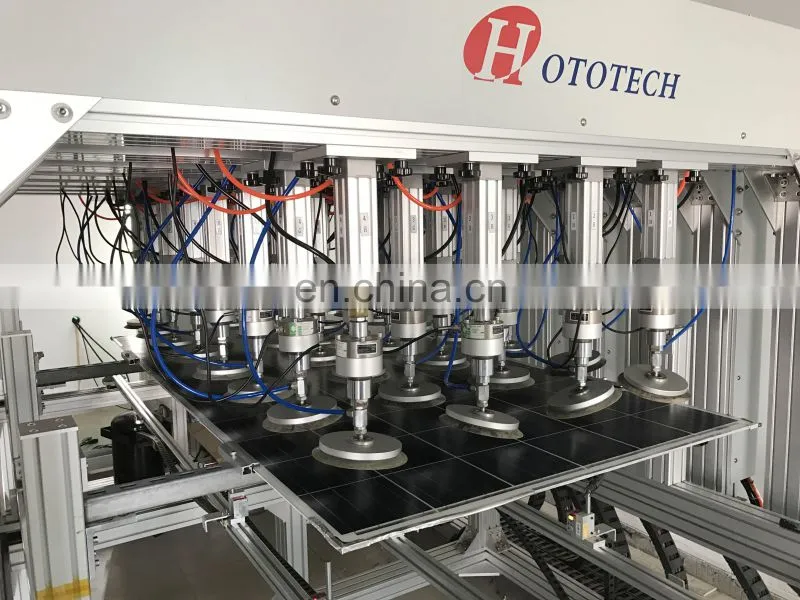

Multiple Cylinders Static Mechanical Load Testing Machine Mechanical Load Testing Equipment
US$ 2,999 - 2,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HTPV-08, HTPV-12
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen YanTian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Panel pv Module Anti-sharp Testing Equipment/ Bruises Testing MachineUS$ 600 - 2,200MOQ: 1 Set -
Helmet Retention System Teseting Machine /Helmet Ribbon Stretching Testing Machine /motorcycle Helmet Testing ApparatusUS$ 400 - 1,000MOQ: 1 Set
-
Steady State Sun Simulator / Test Chamber / Solar Panel Testing Machine ( Included the IV Curve Tester)US$ 1 - 2MOQ: 1 Set
-
Solar Panel PV Module Cold and Hot Pound Environment Chamber / Testing Equipment / Testing MachineUS$ 600 - 10,000MOQ: 1 Set
-
IEC61215 IEC61646 UL1703 Hail Impact Testing Equipment Impact TesterUS$ 1,000 - 10,000MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
Guangdong, China
Model Number
HTPV-08, HTPV-12
Power
Electronic
Product Description
HTPV-08
Name:Static mechanical load testing machine with multiple cylinders to ensure uniform stress
Standard:According to IEC 61215, UL1703, IEC62782 standard requirement
Purpose:
This test is to determine the ability of the module to withstand wind , snow , static or ice loads
Technical specifications:
| dimension | L 280 × D 180 × H 195 cm |
| load | Positive load 5400Pa, reverse load :2400Pa (Pressure can setting) |
| Cycle times | free setting |
| Dynamic load test frequency | 7s±3s |
| Dynamic load | 1000Pa,1000tims |
| Pressure control accurate | 5% |
| Pneumatic and force value feedback ways | low friction force cylinder,tensile pressure sensor(accurate:0.1N) |
| The maximum test dimension | 2000mm×1000mm(can Customized) |
| Current continuity system | DC power, DC 120V/20A |
| Cylinder | 4 groups , in total 8 pieces |
| Single the maximum output | > 200 kg |
| Telescopic stroke | 150mm |
| Sucker diameter | 120mm |
| Sucker(with cylinder) space | horizontal and vertical≤200mm |
| rotation angle | ≥15° |
| Report support output | World, Excel, PDF , JPG etc format |
about us
company introduce
Packing & Delivery
Q&A
FQA :
-Can the equipment be customized?
Provide technical specifications and standards, customized
-About warranty?
Our quality is trustworthy, but we promise a one-year warranty.
-Worried not to use?
We will have professional technicians to guide us remotely. If you like, you can also teach on site.
