UL1703 Standard Hail Impact Testing Machine
- ShenZhen YanTian
- T/T Credit Card
You May Like
-
Wet Leakage Current Testing System With Dielectric Withstand Voltage Tes
-
Detection Cord Anchorage Torsion Ability Testing Equipment
-
PV Module Damp Heat Testing Machine/ Constant Temperatuare and Humidity Testing Machine/Solar Panel Testing Machine
-
Peel Strength Testing Machine/ PV Module Backplane Peeling Strength Testing Machine/PV Module Tester
-
Aaa Sun Simulator /class Aaa Sun Simulator / Solar Panel Steady Sun Simulator With IEC61215-2:2016 Testing
-
According to IEC61215 Standard PV Module Insulation Resistance Tester
Product Details
| Brand Name | HOTOTECH | Place of Origin | Guangdong, China | |
| Model Number | HTPV-09, HTPV-09 | Power | Electronic |
Product Description

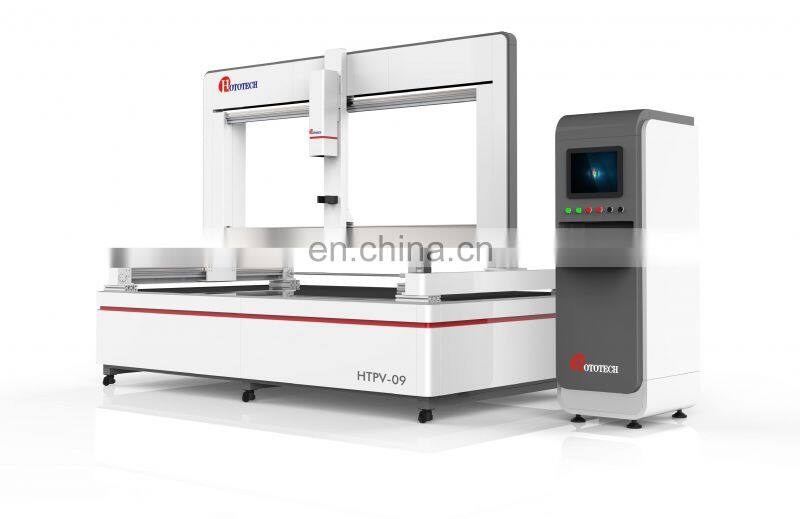

Model:HTPV-09A

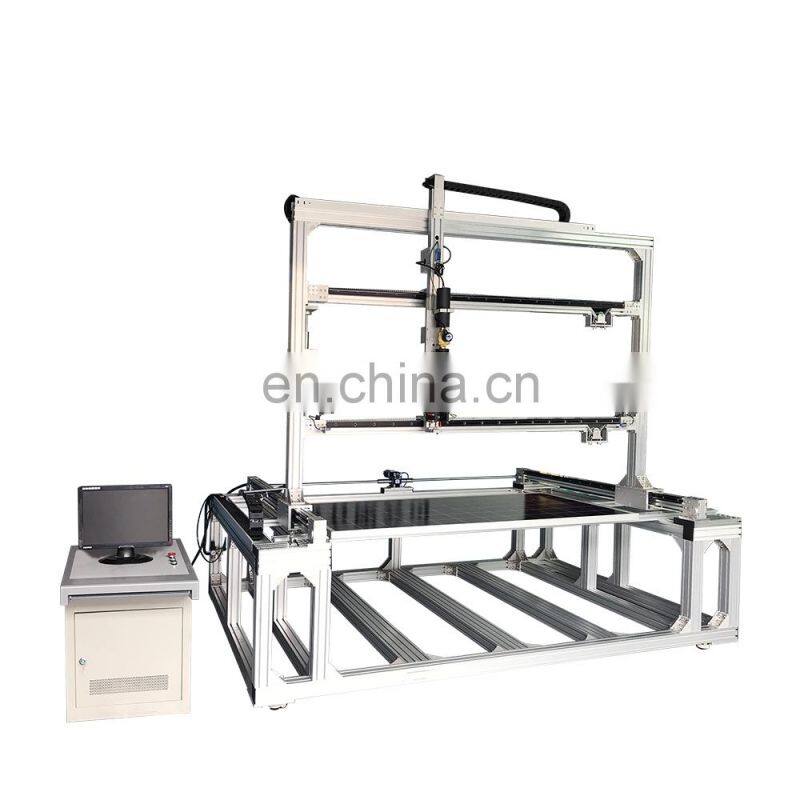

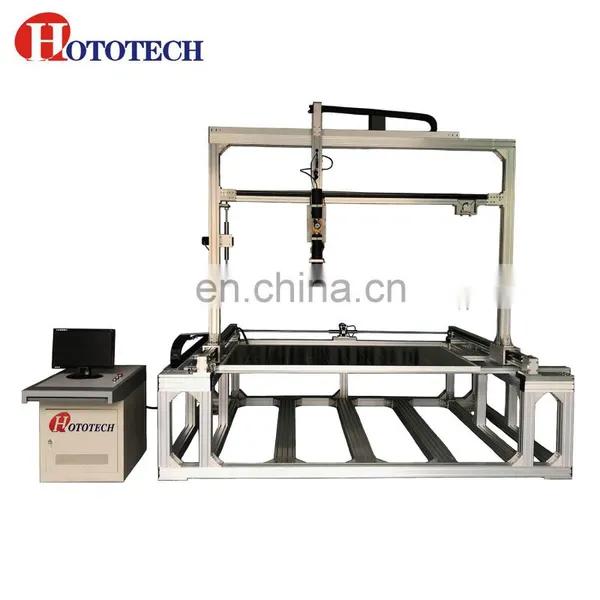

Name:Hail Impact Testing Machine
Solar panel hail impigement testing machine
pv module anti-hail impact test machine
Standard:According to IEC61215,IEC61646,UL1703 standard requirement
Purpose:to verify that the module is capable of withstanding the impact of hailstones
Technical specifications:
| launch device | Moving locating device | ||
| Power source | air compressor | X shaft move distance | approx 2100mm |
| Air pressure | 6-8bar | Y shaft move distance | approx 1000mm |
| Ice ball single filled | manual | Locating accurate | ≤1mm |
| The barrel length | approx 940mm | Impact area | 2000×1000mm |

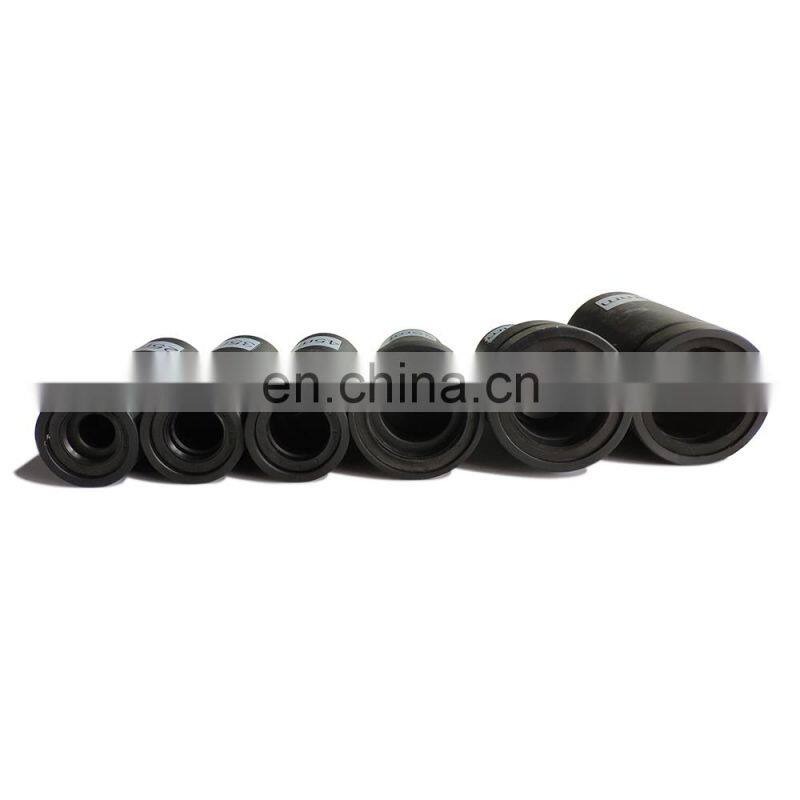

| The barrel | can change | Guide ways | high quality import guide rail |
| Locating control ways | PC control and automatic locating | ||
| Driving ways | import servo motor + synchronous wheel | ||

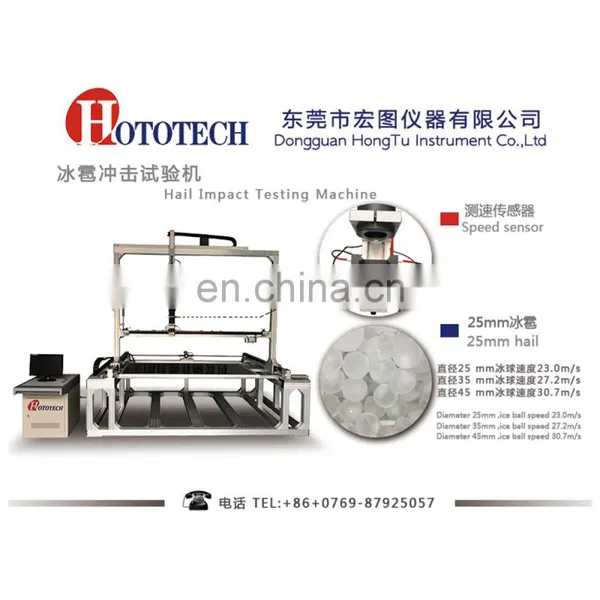

| Ice ball speed | Test velocity system | ||
| diameter 25 mm | 23.0m/s ±5% | Test speed sensor | high accurate infrared test speed sensor |
| diameter 25 mm | 27.2m/s ±5% | accurate | ±5% |
| accurate | 30.7m/s ±5% | Speed catch range | 0~50 m/s |

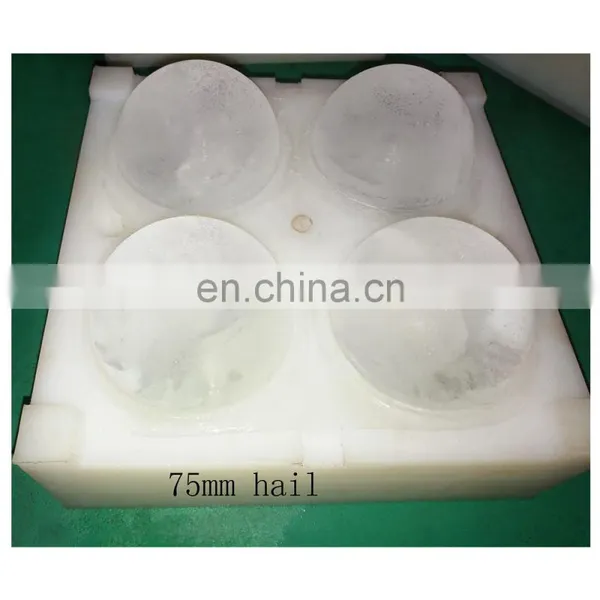

| ice mould | |||
| material | does not expand easily | ||
| Inner cavity diameter | 25mm<1%;35mm<1%;45mm<1% | ||
| ice ball diameter | 25mm<5%;35mm<5%;45mm<5% | ||
| ice ball weight | 7.53g<5%;20.7g<5%;43.9g<5% | ||

1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
