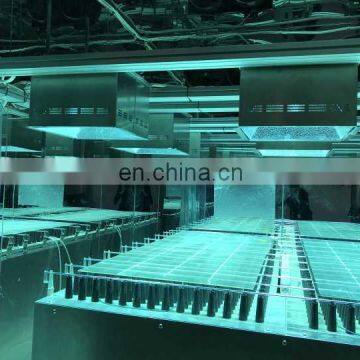

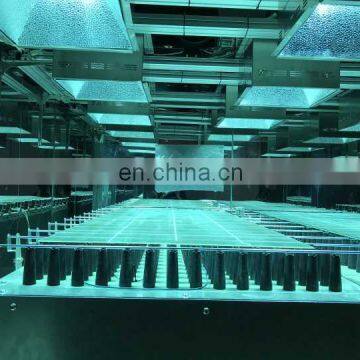

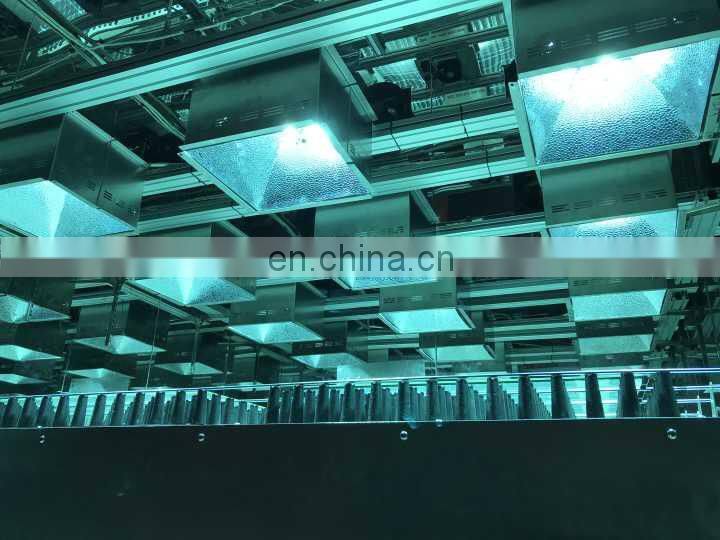

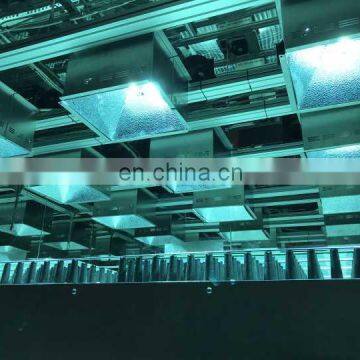

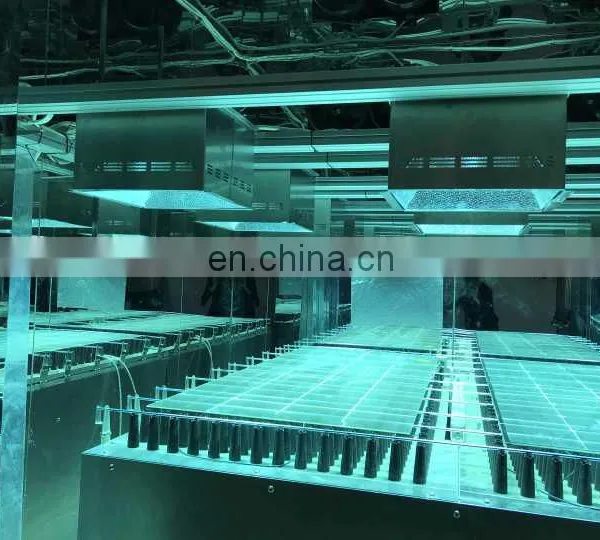

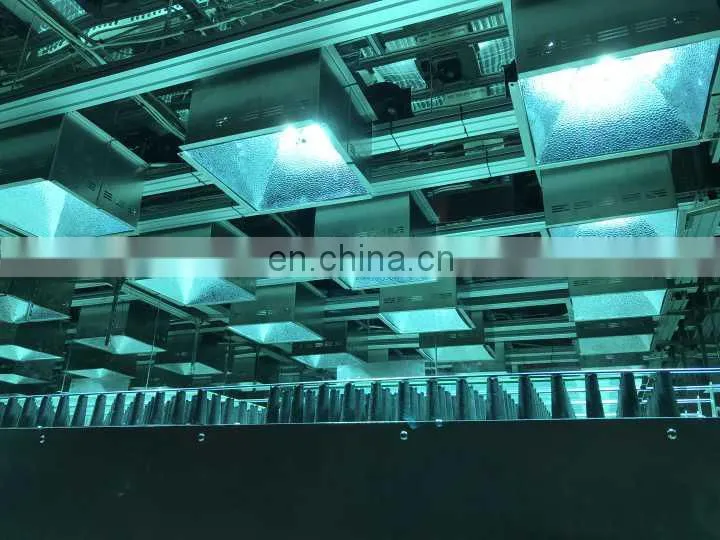

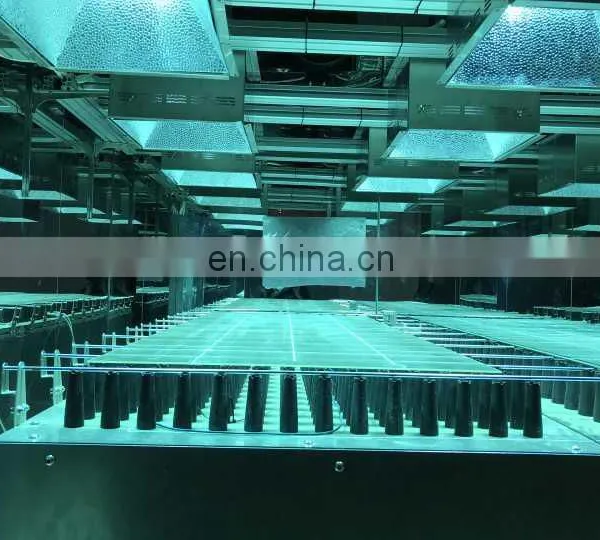

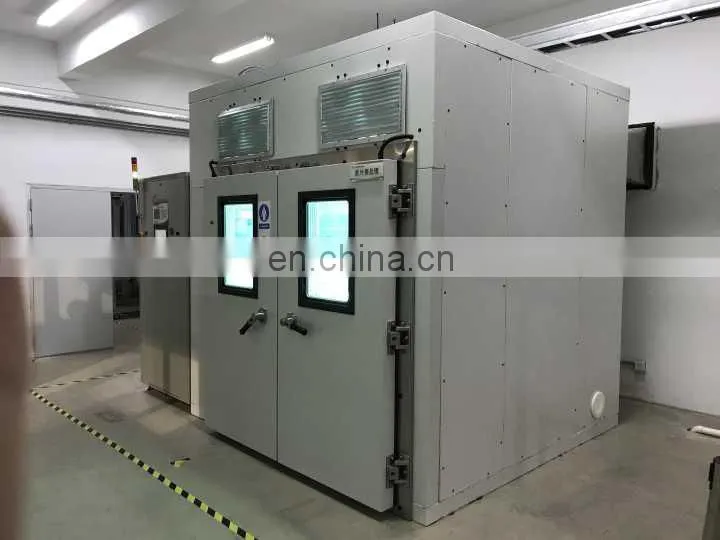

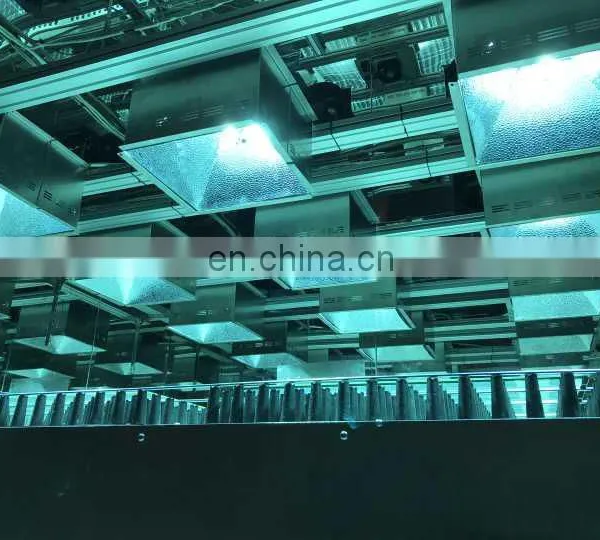

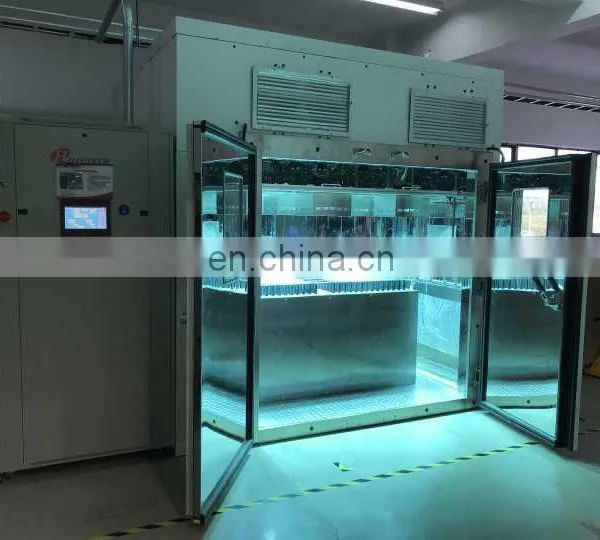

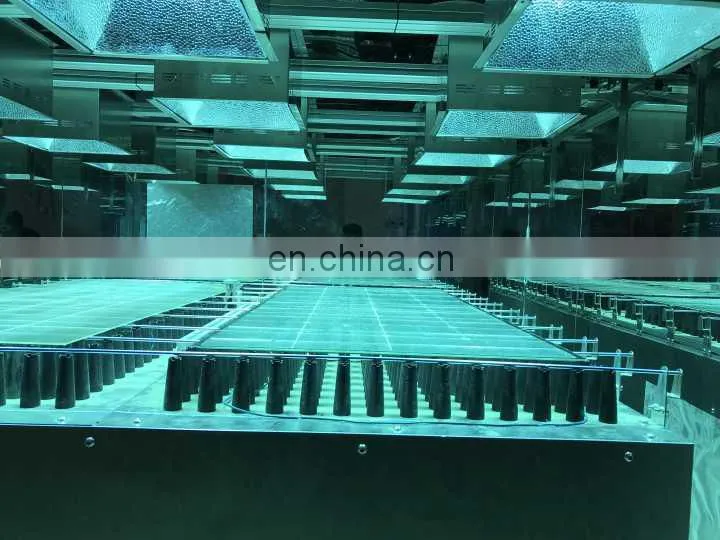

Solar panel ultraviolet pretreatment tester/UV aging Testing machine/Solar panel testing equipment with IEC61215-2:2016
Standard
UV preconditioning testing chamber satisfy IEC61215 , IEC61646 ,IEC61345 standard etc
Purpose
It's to precondition the module with ultra-violet (UV) radiation before the thermal cycle/Humidity freeze testst to identify those materials and adhesive bonds that are susceptible to UV degradation
Technical specifications
| Product Name | Solar panel ultraviolet pretreatment tester / UV aging Testing machine/Solar panel teseting equipment with IEC61215-2:2016 |
| Testing standard | IEC61215-2:2016 testing |
| Function | It's used for solar panel's withstand UV testing |
| UV total irradiation area | 2000mm×2000mm (customized) |
| Iarrdiation wavelength | 280nm~385nm |
| UVA wavelength | 320~385nm |
| UVB wavelength | 280~320nm |
| Module surface temperature | 60 |
| Temperature resolution | 0.1 |
| Control ways | Touch screen |
| Data display | Real-time figure show module surface temperature |
| Electricity | 380V 50HZ |
Customer site requirements
Item |
Requirement |
Placed dimension |
Approx 3000mm×4000mm×2000mm (D×W×H) |
Weight |
Approx 1.5 ton |
Compressor air requirement |
without |
Power requirement |
3 phase 380V 60HZ |
Gruond requirement |
Ground line connect to the ground |
Area requirement |
Flat |
Envirnoment requirement |
20℃±2%,humidity 50%~70%, no noise , Shockproof, non-magnetic interference |
| Power | 35KW |
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
