Home > Products > PV Module Tester > IEC 61215-2 :2016 Standard Solar Panel UV Preconditioning Test Chamber/ PV Module Testing Machine
IEC 61215-2 :2016 Standard Solar Panel UV Preconditioning Test Chamber/ PV Module Testing Machine
US$ 9,000 - 12,000
/ Set
1 Set(Min. Order)
- ShenZhen YanTian
- T/T Credit Card
You May Like
-
Solar Panel UV Preconditioning Tester/Solar Panel Testing Chamber/Solar Panel Testing Machine
-
The Newest Standard IEC61215-2:2016 Standard Thermal Cycling Testing Chamber/Humidity Freeze Environment Chamber
-
IEC 61215-2:2016 Standard Thermal Cycling Tester/Testing Chamber/environment Chamber for 2m by 1m Solar Panel
-
IEC61215-2:2016 the Newest Standard Humidity Freeze Tester /low Temperature Testing Chamber for 2m by 1m Solar Panel
-
PV Module Humidity Freeze Testing Machine/low Temperatuare Testing Machine/evnironment Chamber With IEC61215-2:2016
-
Solar Panel Environment Climate Chamber Simulate Low Temperature Testing Machine With IEC61215-2:2016 Standard
Product Details
| Brand Name | HOTOTECH | Place of Origin | Guangdong, China | |
| Model Number | HTPV-13DE |
Product Description
Company logo
Product Description

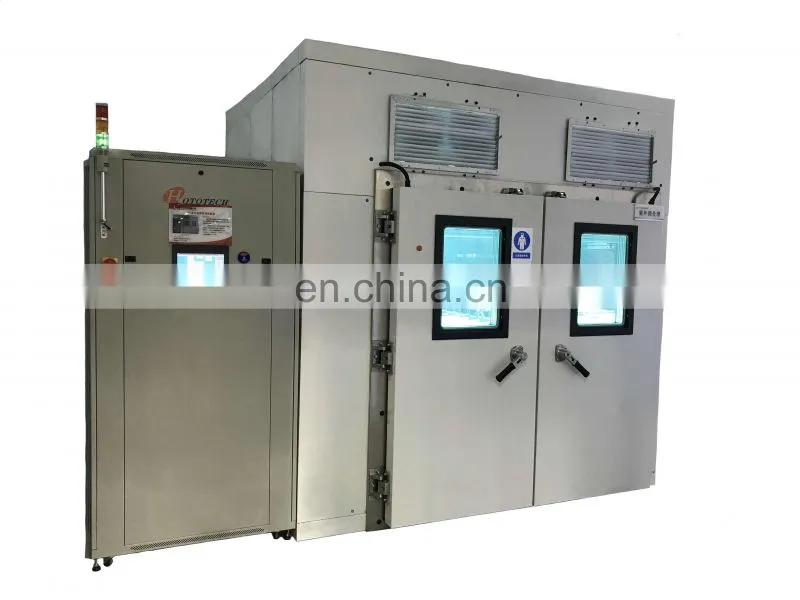

IEC 61215-2 :2016 standard Solar panel UV Preconditioning Test Chamber/ PV Module testing machine
Standard
It's conform IEC61215-2:2016 testing standard
Purpose
It's to precondition the module with ultra-violet (UV) radiation before the thermal cycle/Humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation
The technical specifications
| Product Name | IEC61215-2:2016 standard solar panel UV preconditioning test chamber/PV Module testing machine |
| Testing standard | IEC61215-2:2016 testing standard |
| Material | It's can completely obstruct ultraviolet rays, tightness , good thermal insulation's high quality materils |
| Machine UV total irradiation area | more than 2000×2000mm, meanwhile satisfy 2 PCS mould (2*1m) |
| Light source | Use metal haild lamp |
| Lamp life | 1000 hours |
| Single lamp UVA and UVB relative energy rate | UVB approx occupy total energy 3%~10% |
| Irradiation strength | wavelength 280nm~385nm's irradiation strength can reach about 100W/m, promise the tet cycle reduce as far as possible |
| Irradiation strength | Be better than ±15% |
| Monitor | Real-time monitor and show UVA and UVB strength |
| UVA wavelength | 320~385nm |
| UVB wavelength | 280~320nm |
| Module surface temperature | 60℃±5℃ |
| Temperature resolution | 0.1℃ |
| Ozone | Almost no ozone is produced |
| Light ways | upper light, module test plane vertical light source |
| Monitor ways | Touch screen operate and real-time monitor,when reached the set value will automatic cut off the light source |
| Data show | Real-time figure show module surface temperature , measurement accurate ±0.1℃ |
| Electricity | 380V 60HZ |
