PV module backplane scratch resistance testing machinePV Module Testing equipmentPV Module testing
Purpose
The instrument used to polymer material as before behind surface’s component is whether bear the
electric shock danger on the install and maintain process normal operate
Standard
According to IEC61730-2 and UL1703
Specifications

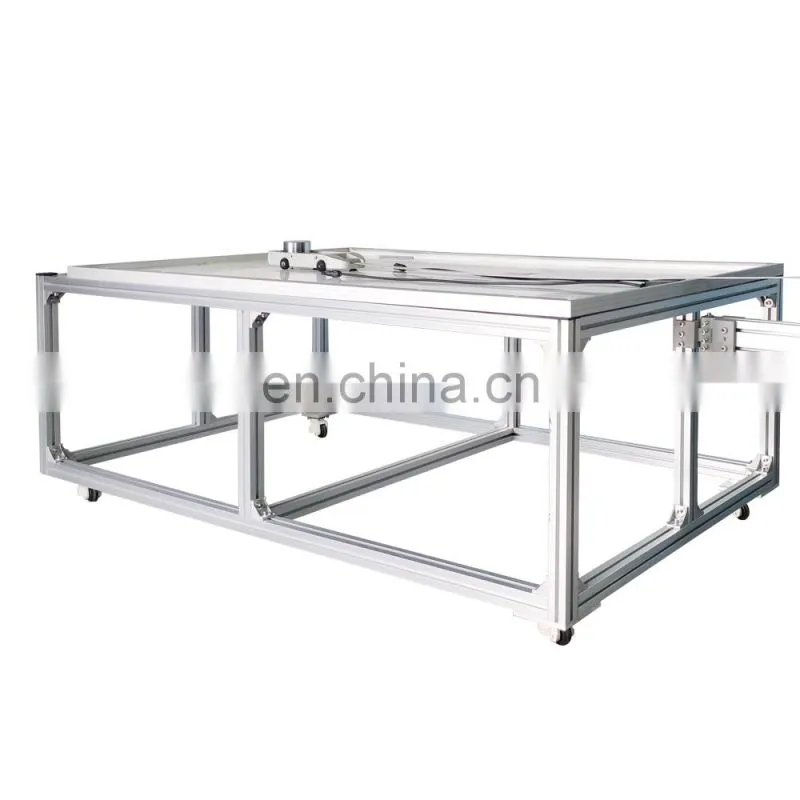

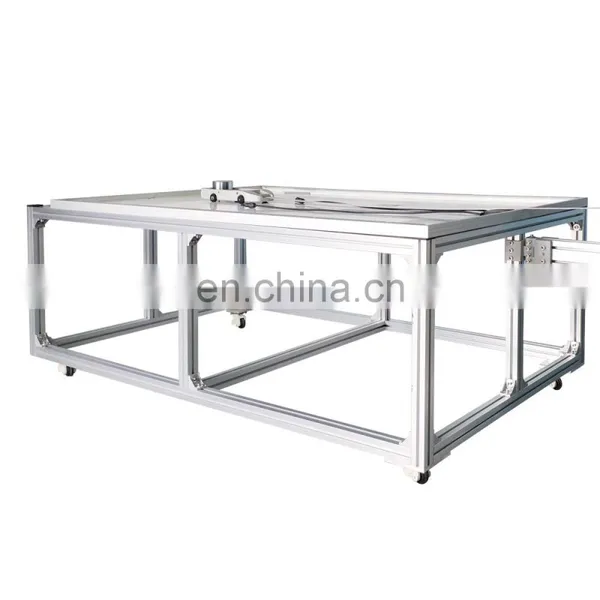

1.The operate able adopt aluminum alloy material , table size :1.4m×0.65m
2.The operate table include tracking pulley , tracking head slide displacement is very convenience

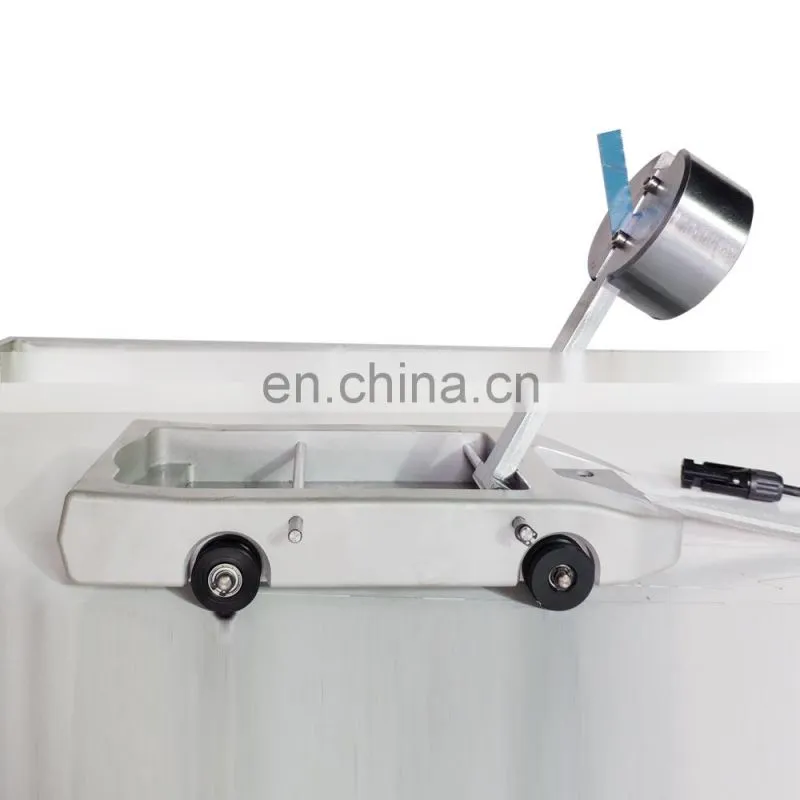

3.Small cart parts:
1)adopt carbon steel saw blade
2)Guarantee 0.64mm±0.05mm thick require,and satisfy 0.115±0.025mm blade radius require.
3)distance and angle can adjust .
4)on the saw blade include the weights box .
5)According the IEC61730-2 standard require adjust weights , guarantee the test point suffer gravity 8.9N±0.5N

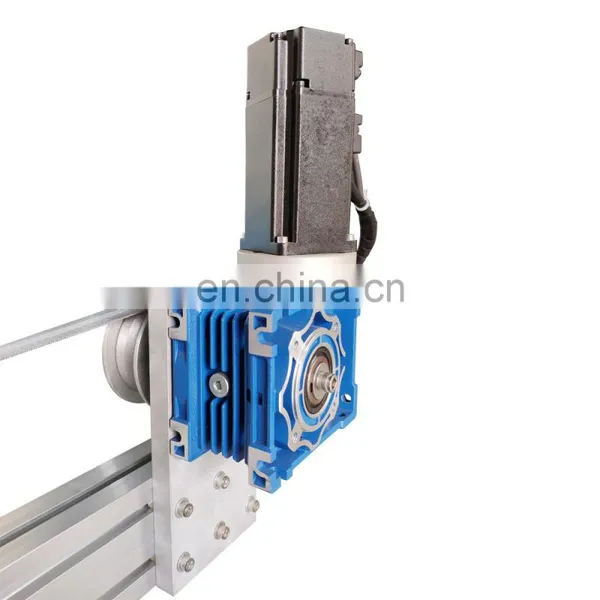

4.adopt Motor constant speed tracing , the speed continue adjust , tracking directing can adjust .
5.can guarantee cutting car to(150±30)mm/s speed pull over component
The Main Technical specifications
| Product Name | PV Module cut susceptibility testing machine |
| Testing standard | IEC61730 |
| Testing sample | PV Module |
| Operate table material | Aluminum alloy |
| Function | It's used to test pv module's reistance scratch performance |
| Testing fixture raw materials | Carbon steel blade |
| Test fixture thickness | 0.64mm±0.05mm, blade radius requirement0.115±0.025mm |
| Testing point gravity | 8.9N±0.5N |
| Testing fixture speed | 150±30mm/s |
| Electricity | 220V 50HZ |
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
