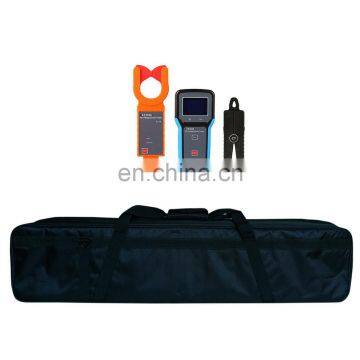

60kV High-voltage Primary Currents Wireless High and Low Voltage Current Ratio Tester

Tester

High voltage detector

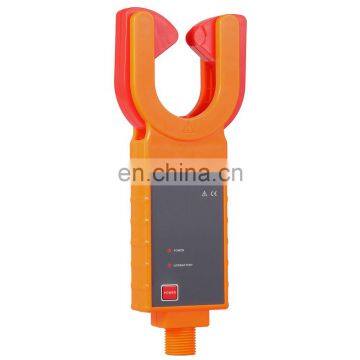

Host (current clamp)

Range

0.0mA~1200A(50/60Hz automatic)

0.0mA~20A

Resolution

0.1mA

0.1mA

Clamp Diameter

φ50mm

φ7.5mm

Test Accuracy

±2%±5dgt

±0.5%±5dgt

Sampling Speed

2 times/second

Function

High-low voltage current transformer primary and secondary loop current, transformation ratio, polarity, phase, and on-line test; current and voltage ratio on both sides of transformer; on-line test; load current test

Transmission type

Wireless transmission, straight line transmission distance 30m

Shift gear

Automatic shift

Power

DC6V 7# Alkaline battery(1.5V AAA×4)

DC7.5V 5 # Alkaline battery(1.5V LR6×5)

Test mode

Clamp CT

Meter Dimension

W/T/H: 87*37*262mm

Host: W/T/H:100*35*204mm

Current clamp: W/T/H: 42*20*137mm

Display mode

LCD:128dots×64dots  Blue screen backlight function, suitable for dark places

LCD Size

62mm×44mm

Ratio

Three kinds of transformation ratio display: (The primary and secondary circuit actually measured the current transformation ratio; the conversion ratio of the secondary circuit 5A; 10kV-YY transformer conversion ratio of 10kV/380V), the maximum ratio of 1:10 million

Line voltage

Line test with insulation sheath below 60kV or bare wire current test below 35kV (must operate with insulation rod)

Lead wire length

The lead wire of the current clamp 2 meter

Weight

Total weight of instrument:3.1Kg(including insulation rob and instrument bag)

High voltage detector:370g(including battery)

Host:409g(including battery)

Current clamp:180g

Data interface

USB transmission

Overflow display

Over-range overflow function: "OL A" symbol display

Data storage

500 groups, press HOLD key to hold data, MR symbol display, press HOLD key to cancel hold

Data review

Long press  HOLD button to enter data review mode

Data is full

Data full function: "FULL" symbol display

No signal instruction

"NO SIGNAL -----" is displayed when the host does not receive the transmission signal

Automatic shut-down

About 15 minutes after power on, the meter will automatically shut down

Battery voltage

When the battery voltage drops to 5.2V, the low-power indicator lights to remind you to replace the battery

When the battery voltage drops to 5.2V, the battery voltage is low symbol to remind to replace the battery

Insulated rod

Five section insulation rods (5 meters in total)

Insulation strength

AC 60kV/rms

Line test

Line test with insulation sheath below 60kV or bare wire current test below 35kV (operate with insulation rod)

Working temperature

-10℃~40℃

Storage temperature

-10℃~60℃

 Relative humidity

0℃~31℃<75%,31℃~40℃<50%

Suitable for safety regulations

IEC1010-1,IEC1010-2-032,pollution level 2,CAT Ⅲ(600V) IEC61326(EMC standard)

High voltage detector

1PC

Host

1PC

Current clamp

1PC

Insulation rob

1SET(total 5 meters)

Instrument bag

1PC

Battery

High voltage detector:7#1.5V alkaline dry battery 4PCS

Low voltage hose:5# 1.5Valkaline dry battery 5PCS

Data wire

1PC

Manual, certificate

1SET
