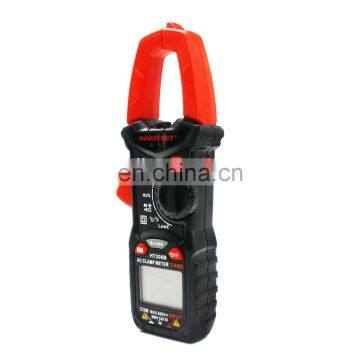

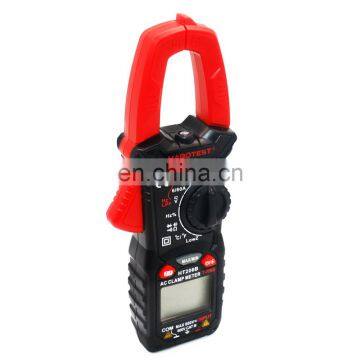

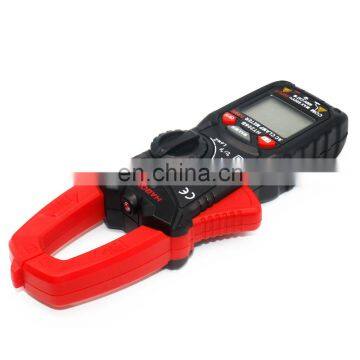

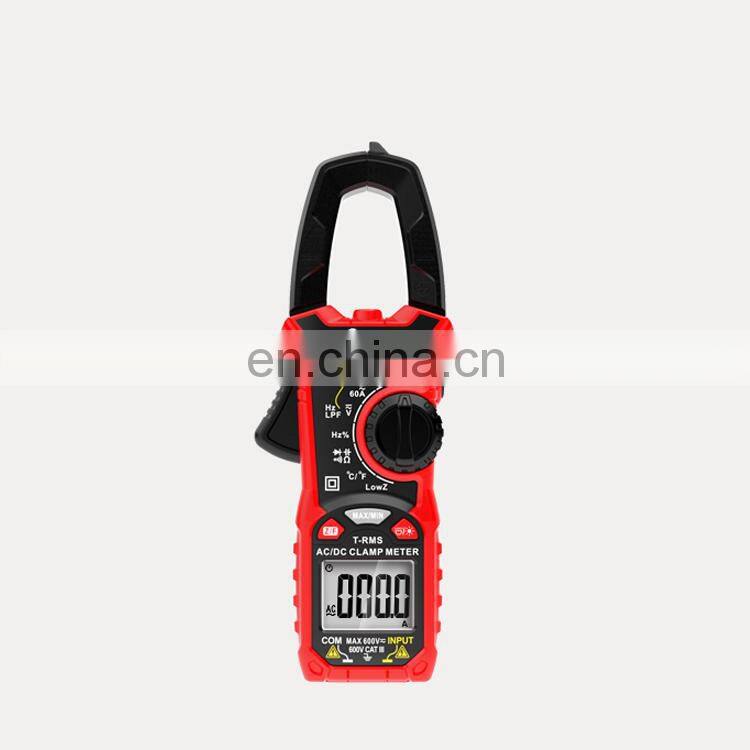

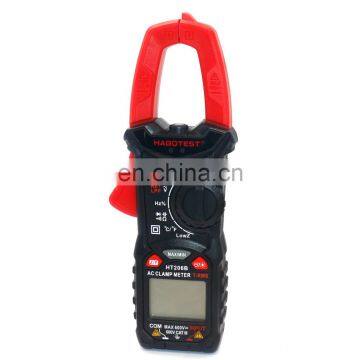

HT206D
Digital Ammeter Clamp Type Clamp Current Universal Meter AC / DC Full Automatic Multifunctional
Introduction of functions
1. Intelligent anti-burning and overload protection
Full - range intelligent overload protection to prevent damage to license issuing instruments during measurement.
2. Automatic measuring range
The matching of engineering switch keys and dial plate effectively reduces the wear of dial plate and prolongs the service life of instrument.
The dial is not required to switch the measuring range and the resolving range, thus improving the measuring accuracy.
3. High - definition display screen with clear handwriting, clear display and convenient use in dark places
4. NCV non-contact measurement
NCV gear automatically detects the voltage intensity when the non-contact voltage sensing area is close to the circuit.
specifications
| Specifications | Range | Accuracy |
| DC Voltage | 600mV/6V/60V/600V/600V | ±(0.5%+3) |
| AC Voltage | 6V/60V/600V/600V | ±(1.0%+3) |
| DC Current | 6A/60A/600A | ±(2.5%+5) |
| AC Current | 6A/60A/600A | ±(2.5%+5) |
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.5%+3) |
| Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF | ±(4.0%+3) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+5) |
| Duty | 1%~99% | ±(1.0%+2) |
| Temperature(℃/°F) | -40℃~1000℃ | ±(1.0%+2) |
| -40°F~1832°F | ±(1.0%+2) | |
| Counters | 6000 counters | |
| Auto/manual range | Auto | |
| Continuity | √(sound and light alarm) | |
| Diode test | √ | |
| Data hold | √ | |
| NCV | √(sound and light alarm) | |
| Backlight | √ | |
| Flashlight | √ | |
| DCA ZERO | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| True RMS | √ | |
| LPF | √ | |
| Max/MIN | √ | |
| LowZ | √ | |
| Power | 2*AAA(1.5V)batteries | |
| Weight | Appro*.260g | |
| Size | 193mm*73mm*34mm | |
| Safety rating | EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V | |
shows
-Do we support OEM or ODM?
-Will the original R&D manufacturing paint have a price advantage?
-Are you products high quality products?
-Do we have a good team?
-Does our product support global after-sales service ?
-Are our product certified?
every answer is "YES"
