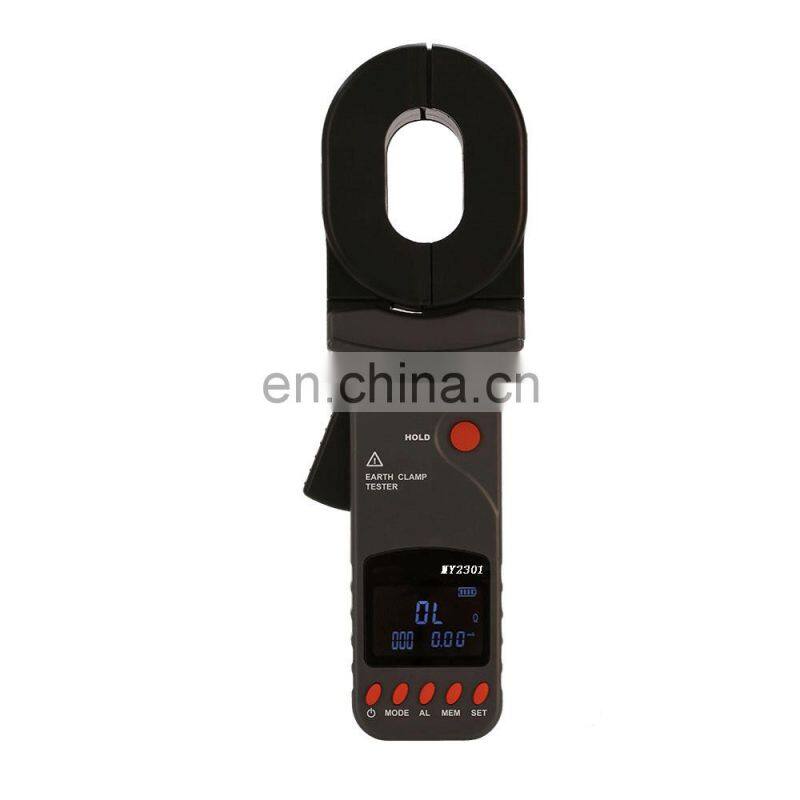

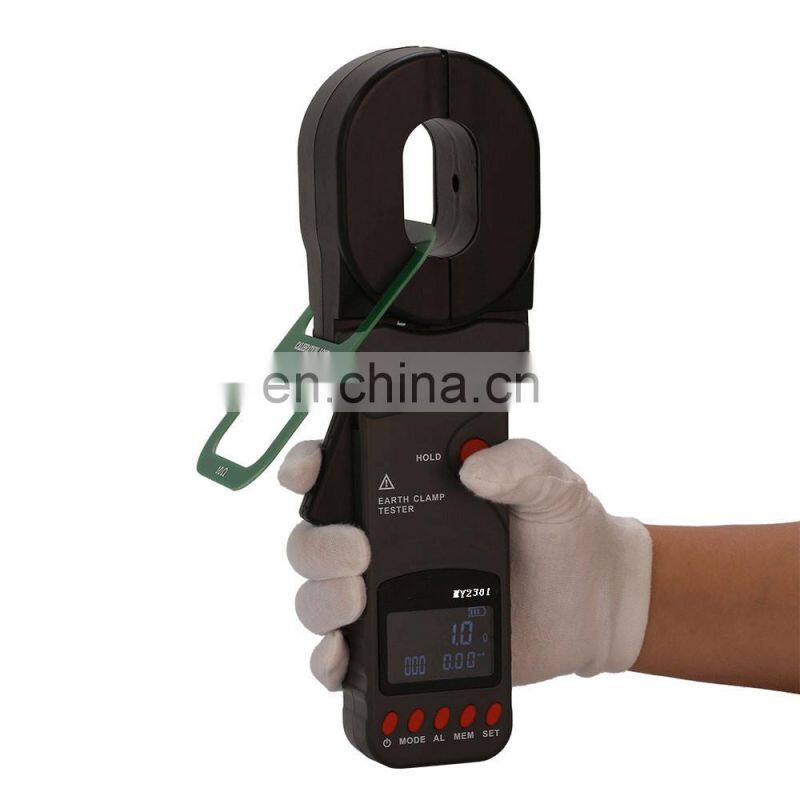

MY2301A
Intelligent Resistance Tester
Function:
grounding resistance test, loop resistance test, leakage current test
Data storage
-- 300 groups, " MEM" storage indication, displaying " FULL" symbol to indicate storage is full.
Data access
--The " MR" symbol indicates when looking up data
Overflow display
--" OL" symbol indicates when over range overflows
Interference test
--Automatic identification of interference signals, when the interference current is large, " NOISE" symbol indicates
Alarm function
--When the measured value exceeds the alarm set value, an alarm prompt will be issued.
battery voltage
--The battery power is displayed in real time, and timely charging is reminded when the battery voltage is low
Automatic shutdown
--" APO" indicates that it will automatically shut down after 5 minutes of start up.
Technical indicators | ||||
Functional | grounding resistance test, loop resistance test, leakage current test | |||
range
| Grounding resistance:0.01Ω~1200Ω | Resolution:0.001Ω | Accuracy:±1%±0.01Ω | |
Current:0.00mA~20.0A | Resolution:0.01mA | Accuracy:±2%±1mA | ||
Ambient temperature and humidity | 23 ℃ 5 ℃, 75%rh or less | |||
Power supply | DC 6V(4 no. 5 alkaline dry cells ) | |||
Measurement method | Mutual inductance mode | |||
Jaw size | 55mm×32mm | |||
ω + a synchronous display | Ω+ a on-screen display | |||
Display mode | 4 - bit LCD Display, Black Screen Design | |||
Liquid Crystal Display | 46mm×29mm | |||
Meter size | Length, width and height: 285mm×85mm×58mm | |||
Measuring time | 2 times per second | |||
Data storage | 300 groups, " MEM" storage indication, displaying " FULL" symbol to indicate storage is full | |||
Data access | The " MR" symbol indicates when looking up data | |||
Overflow display | " OL" symbol indicates when over range overflows | |||
Interference test | Automatic identification of interference signals, when the interference current is large, " NOISE" symbol indicates | |||
Alarm function | When the measured value exceeds the alarm set value, an alarm prompt will be issued. | |||
battery voltage | Real - time display of battery power, prompt timely charging when battery voltage is low | |||
Automatic shutdown | " APO" indicates that it will automatically shut down after 5 minutes of start up. | |||
Power consumption | 50mA Max | |||
Quality | Instrument: 1180g ( including battery ) | |||
Working temperature and humidity | -10℃~40℃; Below 80%rh | |||
Storage temperature and humidity | -20℃~60℃; Below 70%rh | |||
Insulation resistance | More than 20MΩ ( between circuit and housing ) | |||
Pressure | AC 3700V/rms ( between circuit and housing ) | |||
External magnetic field | <40A/m | |||
External electric field | <1V/m | |||
Suitable for safety regulations | IEC61010-1(CAT III 300V, CAT IV 150V, contamination level 2 ) | |||

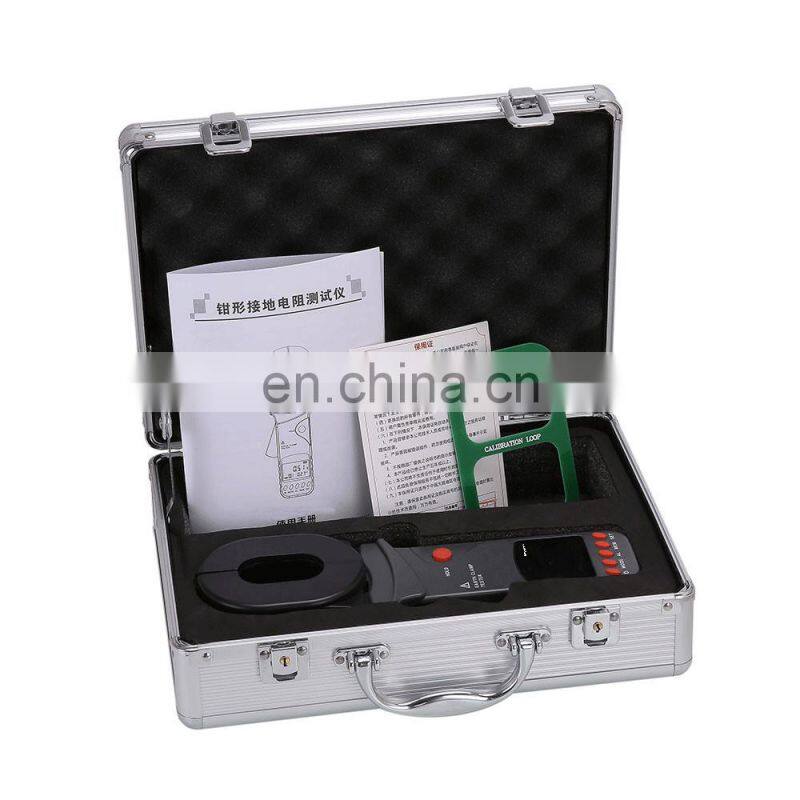

Packing list | ||||

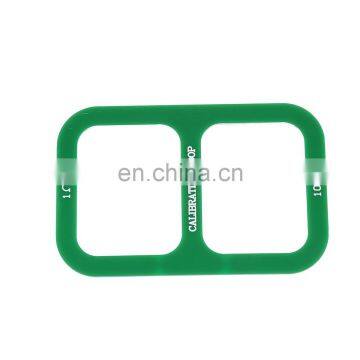

Instrument: 1 | calibration ring: 1 | |||
Instrument box: 1 | warranty certificate: 1 | |||
AA battery : 4 | Monitoring software CD:1 | |||
USB communication line:1 | ||||
