IEC Impact Test Using Steel Ball 50mm Iec 61032 500g
- shenzhen
- T/T Credit Card
You May Like
-
50MM Impact Test Balls With an Eyelet
-
IEC61032 Stainless Steel Ball Gauge Measuring Strength
-
IEC Standard Household Electrical Test Sphere Probe Ball Measuring
-
IEC Confirmed Metal Detector Test Spheres
-
IEC61032 500g 50mm Solid Core Steel Ball Bearing With Ring
-
Hot Selling IEC60529 IP1X Impact Test Steel Ball With Ring
Product Details
| Brand Name | BND | Place of Origin | Guangdong, China | |
| Model Number | IEC61032 |
saftey box for iec impact test steel ball
Product Description

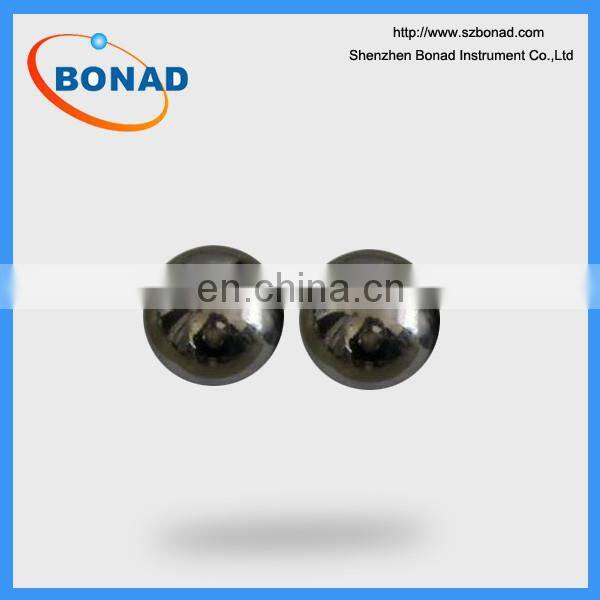

china shenzhen supply IEC impact test using steel ball 50mm iec 61032 500g

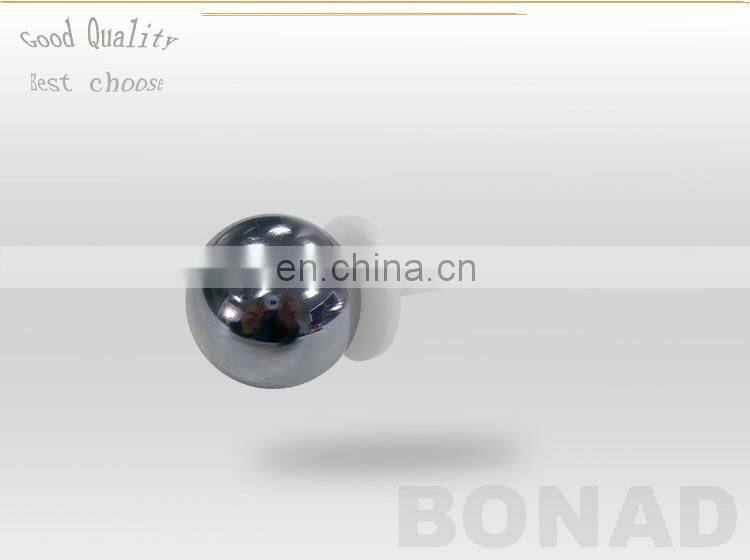

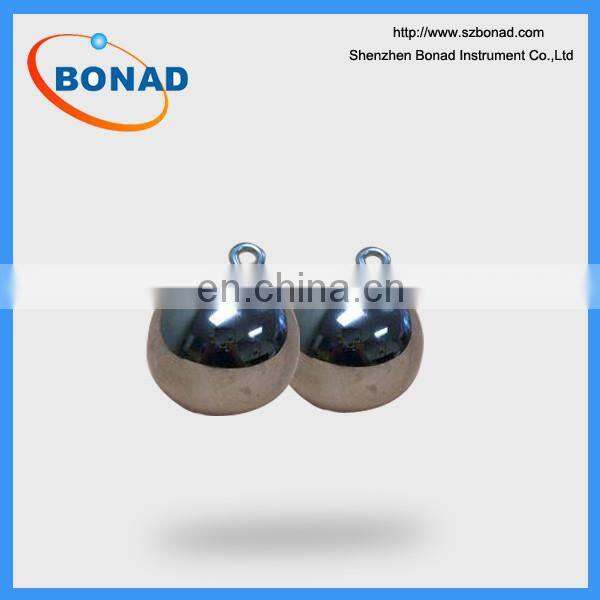

The iec 61032 stainless steel impact test balls are a specially machined ball to test impact resistance according to IEC and UL Standards. It is made of chrome-plated-steel for durability, and is fitted with an eyelet to facilitate testing for pendulum applications. Eyelet is threaded to the ball to allow attachment of a handle or force gauge. Weights are closely controlled.
IEC 61032 IEC60529 Metal Test Sphere / Impact Test steel ball
This impact test steel ball is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50.8 mm or greater.
diameter: 50mm 12.5mm

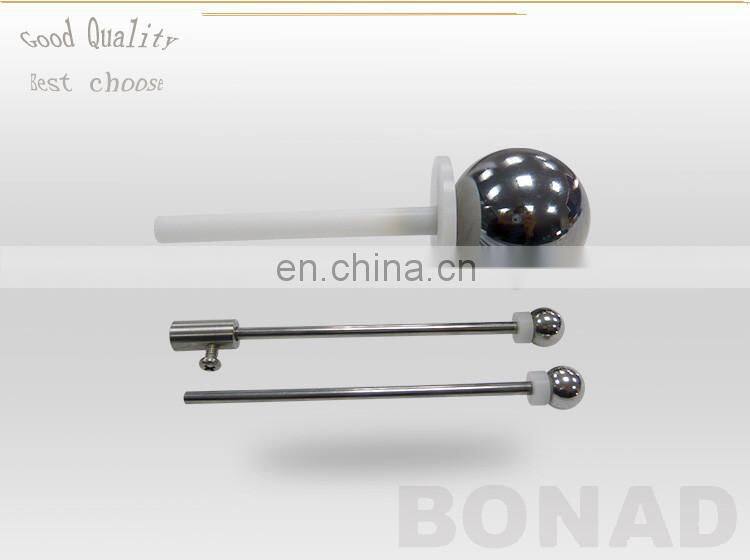

handle: with or without handle
In accordance with VDE 0700-69 resp. EN 60335-2-69
Object probe for the ascertainment of protection of persons and for checking the mechanical resistance of the material. With the help of the test sphere the protection of the equipment against intrusive solid particles can be tested. Furthermore the protection of the back of the hand can be rated.
weight | tolerance | material | hardness |
227g | ±5% | G20CrNi2Mo | HRC68-75 |
500g | ±5% | G20CrNi2Mo | HRC68-75 |
535g | ±5% | G20CrNi2Mo | HRC68-75 |
1040g | ±5% | G20CrNi2Mo | HRC68-75 |
| Energy | 0.14J | 0.20J | 0.35J | 0.50J | 0.70J | 1.00J |
height | Steel ball 227g | 63mm | 90mm | 157mm | 225mm | 315mm | 450mm |
Steel ball 500g | 28mm | 41mm | 71mm | 102mm | 143mm | 204mm | |
Steel ball 535g | 27mm | 38mm | 68mm | 95mm | 137mm | 190mm | |
Steel ball 1040g | 14mm | 20mm | 34mm | 49mm | 69mm | 98mm |
IEC61032
IEC60529
