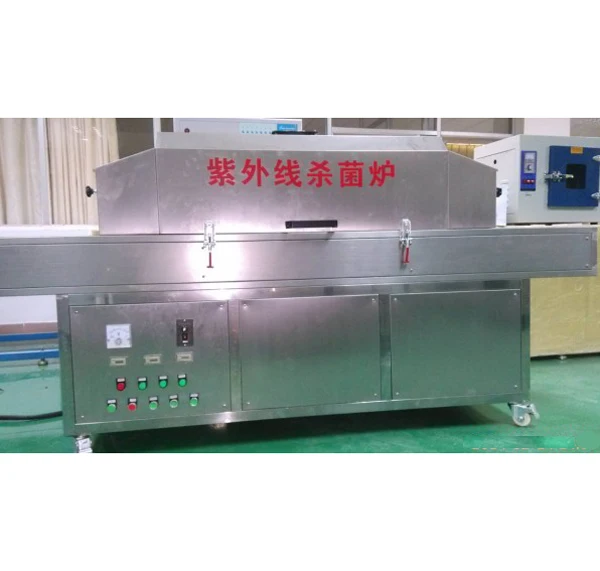

UV Sterilization Chamber
US$ 3,250 - 3,250
/ Set
1 Set(Min. Order)
- T/T Credit Card
You May Like
-
Handheld Spray Nozzle Ingress Protection Test Equipment IPX3 IPX4
-
DSC Differential Hold Scanning Calorimeter
-
IEC60529 IPX3 IPX4 Waterproof Test Equipment Oscillating Rain Spray Tester
-
IEC60529 IPX3 IPX4 Waterproof Test for Enclosure, Oscillating Spray Tester
-
Rain Test Chamber For Measuring The Electrical Products
-
Factory Sell! Laboratory Use Rain Spray Test Chamber
Product Details
| Brand Name | BND | Place of Origin | China | |
| Model Number | BND-SD-01 | Power | Electronic |
wood package, standard export package
Product Description
Product Description
Introduction
UV disinfection technology is the latest generation of disinfection technology rising in the late 1990s. It integrates optics, microbiology, electronics, hydrodynamics and aerodynamics. It has the characteristics of high efficiency, wide spectrum, low cost, long life, large water volume and no secondary pollution. It is internationally recognized as the mainstream consumption technology in the 21st century.
It is mainly used to sterilize cooked food and water. Widely used in hospitals, food, Chinese herbal medicine, food and beverage processing and packaging equipment, health products factory, food factory, cosmetics factory, dairy factory, brewery, beverage factory, bakery and packaging products factory, etc. The working principle of the equipment is: the ultraviolet wave band is mainly between 200-300nm, of which 253.7nm is the strongest. When all kinds of bacterial viruses in water or air pass through the ultraviolet (253.7nm wavelength) irradiation area, ultraviolet rays penetrate the cell membrane and nucleus of microorganisms, destroy the molecular bond of nucleic acid (DNA or RNA), make it lose the ability of replication or activity and die, so as to kill all bacterial viruses without using any chemical drugs. The sterilization lamp does not need to be converted into visible light, and the wavelength of 100-200nm can play a good role in sterilization. This is because there is a rule in the absorption spectrum of the light wave of the cell. The ultraviolet light at 100-200nm has the largest absorption. The absorbed ultraviolet light actually acts on the cell genetic material, namely DNA, which plays a role in photochemical. The energy of ultraviolet photons is absorbed by the base pairs in DNA, which leads to the absorption of ultraviolet photons The variation of genetic material causes bacteria to die or fail to reproduce immediately, so as to achieve the goal of sterilization.
Technique Specification
Main configuration and structure of the product:
1. Outer body of working area tunnel: 1.2mm stainless steel set
2. Working area tunnel inner cavity: 1.0mm mirror stainless steel plate, one set of model: ා304
3. Body support frame: one set of square steel model: 2 ″ square steet
4. Air transportation system: one set of forced air transportation combined exhaust fan (to extract harmful gas) model: 6 "
6. conveyor belt: PUV mesh belt 1. main switch: 20A
7. Transport motor: 800W (frequency converter speed regulation)
8. Governor: 500W (electronic stepless frequency converter speed regulation digital display speed operation)
9. Suction fan: cy-125 type
10. Ammeter: 50a, one set
11. Voltmeter: one set of 220V
12. Working voltage: 200V -- 220V (± 5) three wire system 50Hz
Company Profile
Shenzhen Bonad Instrument Co., Ltd.
14 Stanards drafted and issued by Labthink -- 100 Patents granted by Labthink -- 410 m2 Laboratory to provide testing services -- 20 years experienced lab technicians to provide solutions -- 12 months warranty -- Remote Services (Free of Charge allthrough lifetime)
