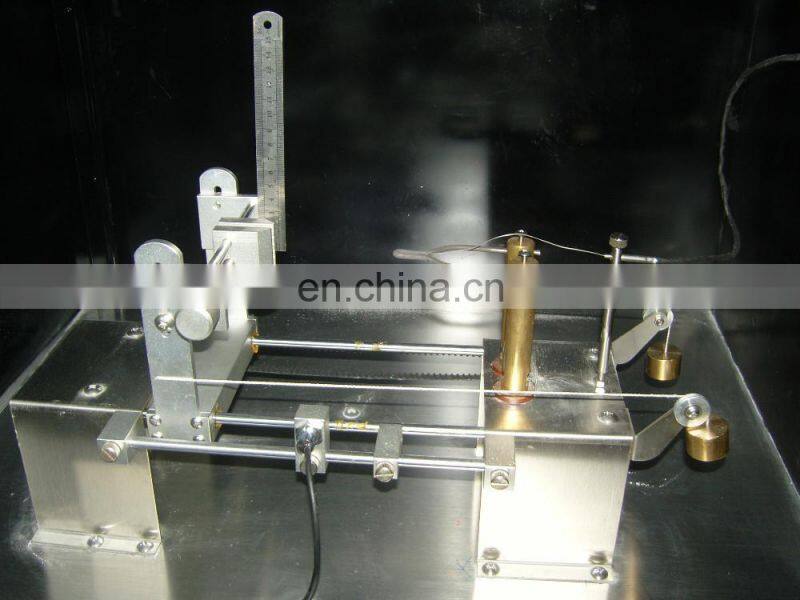

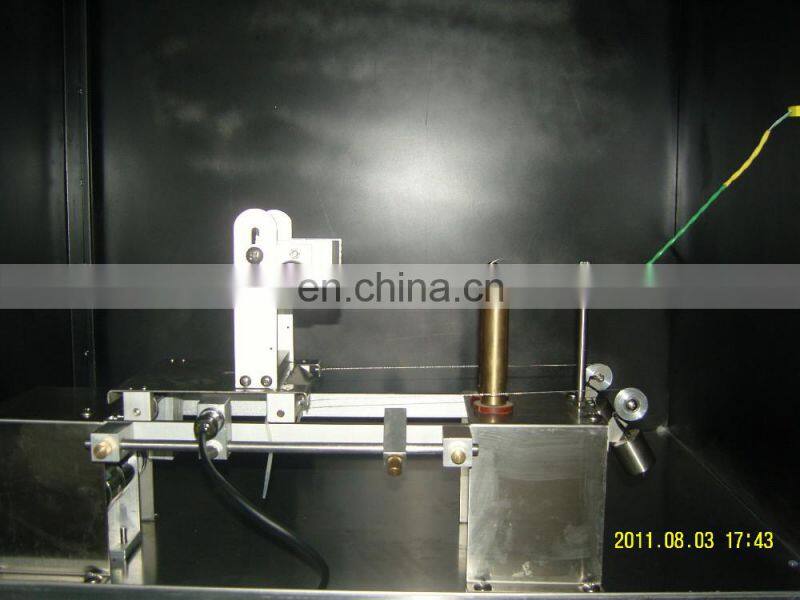

IEC 60695-2-10 Figure 2 Glow Wire Loop for toy flammability test

Safety wooden box for IEC60695 glow wire loop for flamability test

1,The tester comforms to IEC6069

5-2-10, UL 746A, GB/T5169.10, GB4706.1

2, The glow wire tester heat the stipulated material, Ni80/Cr20, and heating wire, nichrome wire with diameter of 4 mm with high current up to test temperature  550 ℃ ~ 960 ℃. After 1 minute, it burn the specimen verticality for 30s with specified pressure 1.0N. The ignitability of electric and electronic equipments is tested by judging whether the specimen and bedding materials are ignited or deciding the length of burning time; also, the ignitability, ignition temperature(GWIT) , flammability and flammability index of the solid insulating material and some other solid combustible materials are tested in this way.

3,The glow wire tester is usually applied to the research, production and quality testing departments for electric and electronic products as well as their parts and components, such as lighting equipment, low-voltage apparatus, electric instrument.

Technical parameters

1, Glow wire temperature: 500 ~ 1000 °C± 2 °C continuous adjustable

2, Searing time: 0-999.9 s ± 0.1 s adjustable (usually selected for 30s)

3 Light-off time: 0-999.9 s ± 0.1 s, automatic recording, manual timeout

4, Fire out time: 0-999.9 s ± 0.1 s, automatic recording, manual timeout

5, Thermocouple: Φ 0.5 mm K type imported sheathed thermocouple.

6, Glow wire: Φ 4 mm Ni-Cr alloy wire

7, Ironing depth: 7mm ± 0.5 mm

8, Sample pressure: 1N ± 0.2 N

9, Test speed: 10mm/s-25mm/s

10, Test background: black background

11, Test process: automatic control, independent convulsions

12, Consult standard GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A

13, Studio volume: 0.5 cubic, stainless steel box (according to customer requirements 0.75 cubic or 1 cubic)
