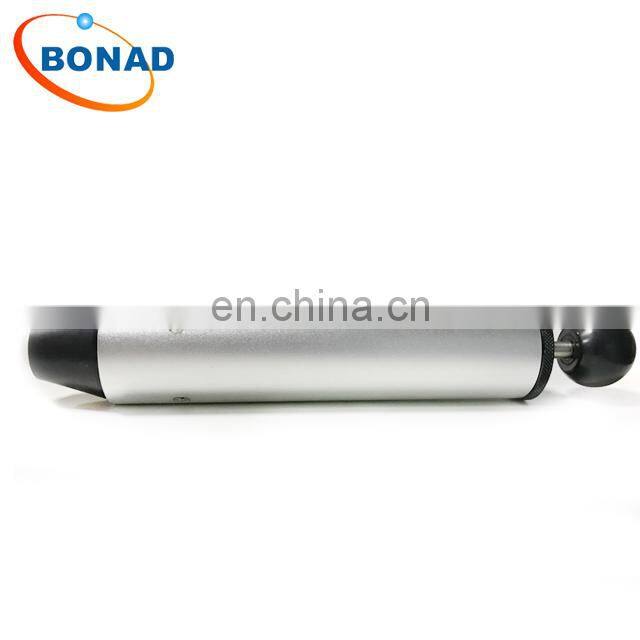

Hot Sell BONAD 0.50J Spring Impact Hammer Price

IEC60065 figure 6 Dielectric Strength Test Instrument

0.1J-2.0J Single Energy Spring-Operated Impact Hammers Hammers

Single spring hammer 0.14J,0.20J,0.35J,0.50J,0.70J,1.0J 2.0J Selection

Universal spring impact hammer(adjustable imapct hammer): 0.14, 0.20,0.35,0.50,0.70 and 1J

SPECIFICATIONS:

•Impact energy: 0.14J – 1J. (adjustable energy)

•Weight of body: 1,25 Kg. ± 0,03 Kg.

•Weight of striking element: 0,25 Kg. ± 0,01 Kg.

•Weight of release cone: 0,06 Kg. ± 0,001 Kg.

•Hammer head Hardness: 100 Rockwell.

•Hammer head material: Polyamide.

•Hammer head radius: 10 mm.

•Dimensions:

•Diameter: 50mm ± 0,5mm.

•Body Length: 217mm ± 2mm.

standard:f IEC 60068-2-75.

FEATURES

•Instrument manufactured according to the relevant standards

•Single and Universal models available

•Produced with high quality material and correct dimensions

•Supplied in a compact carrying case

•Comprehensive user manual

•Calibration Report issued by accredited LAB located in China territory
