IEC61032 50mm long standard test long pin probe 12 for safety testing

IEC61032 50mm long standard test long pin probe 12  for safety testing

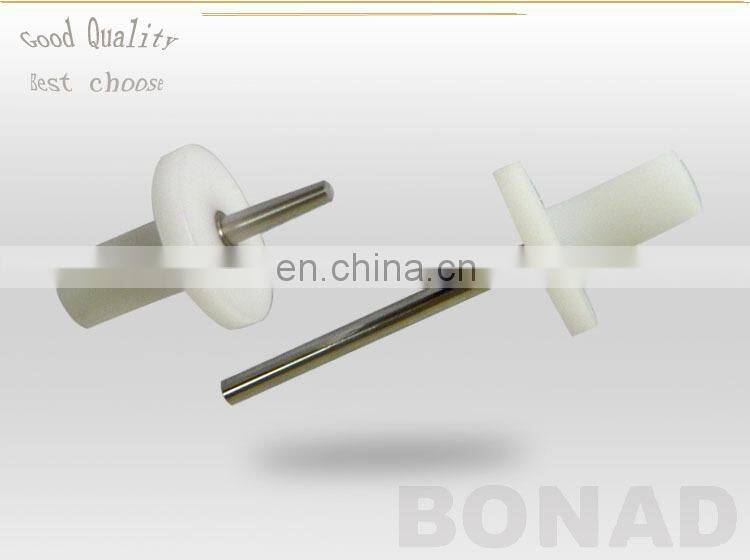

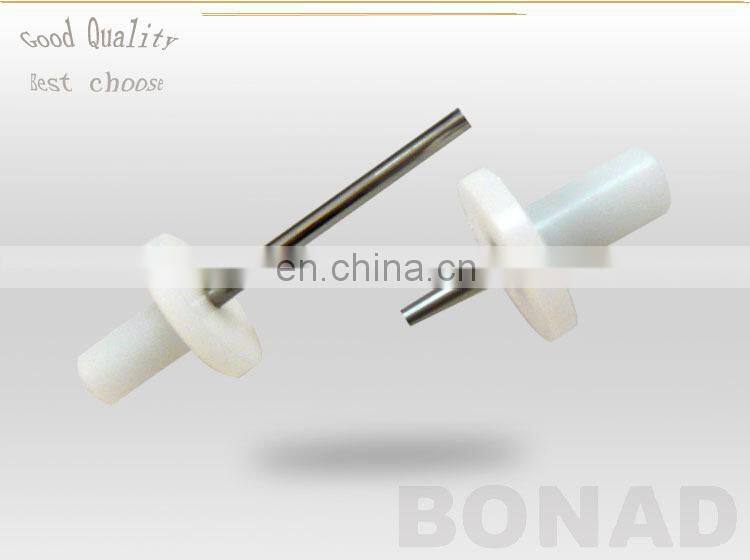

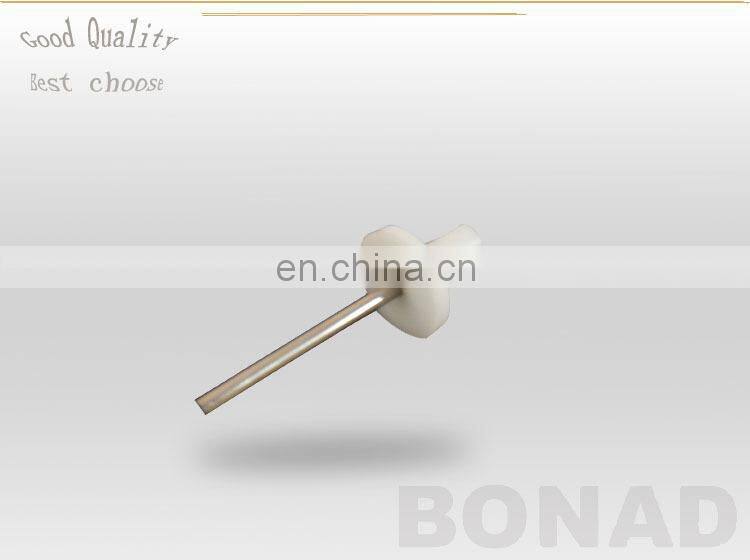

IEC61032 Long Test Pin (test probe 12)

Article NO.:BND-12

In line with the IEC61032 probe 12 standard requirement

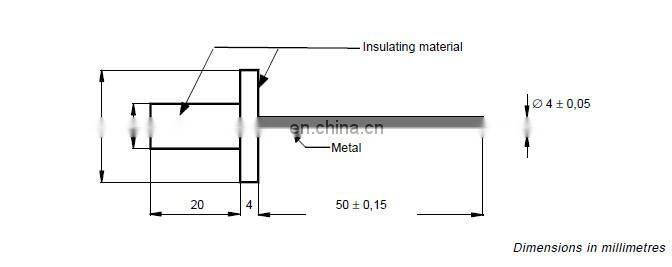

Technical parameters

1, The probe Diameter :4mm

2, The probe Length:50mm

3,Dam- board Diameter:25mm

4, Dam- board Length:4mm

5,Reference Standard: IEC61032:1997 in figure 8

Appliance:

This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.The handle dimensions (Ø 10 and 20) are not critical.

NOTE The test pin dimensions are those given in Figure 9, test probe 13 of IEC 61032. In some cases the tolerances are different.
