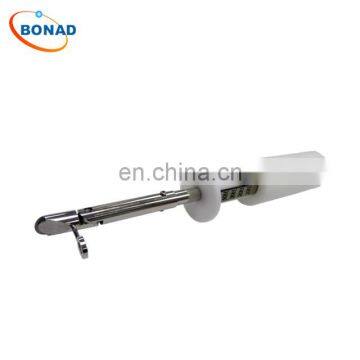

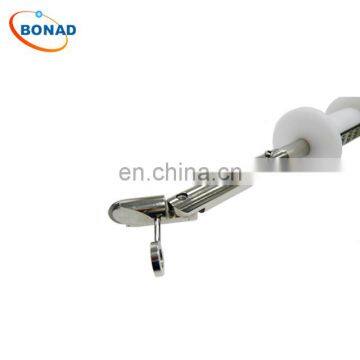

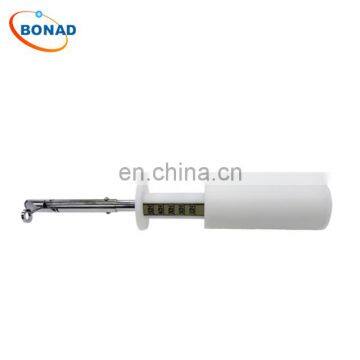

IEC 60335-1 Figure 7 Test Finger Nail With 30N Force Gauges

 UL 1205 / IEC 60475 / IEC 60335-1 Figure 7 - Test Finger Nail with 30N Force Gauges

Article NO.BND-ZJ

Technical parameters

1,Test Finger Nail components: fingertip, the middle finger ,finger base.

2, exert pressure: 10N, 20N, 30N,40N,50N

3, Reference standard: IEC60335-1 in figure 7

Application:

1,

The test finger nail meets the standard requirements of IEC 60335.1&GB 4706.1, it is mainly used for the solid insulated accessible parts to prevent impaling the sample by sharp tools. It is also used to prevent the non-removable parts from touching the live parts, waterproof parts and the moving parts. It should be fixed in a reliable way and withstand the mechanical stress appearing in normal use.

2,

1. For the scratch test, to exert the surface a 10N force and the material to scratched surface cannot be separated.

2.1 Insert the test finger into any slits or joints, exert a 10N perpendicular lateral force, but it cannot be twisted and levered, and related components cannot be fell off or damaged.

2.2 Insert the test finger into any slits or joints, exert a 10N lateral force in disassemble direction of the parts, and related components cannot be fell off or damaged.
