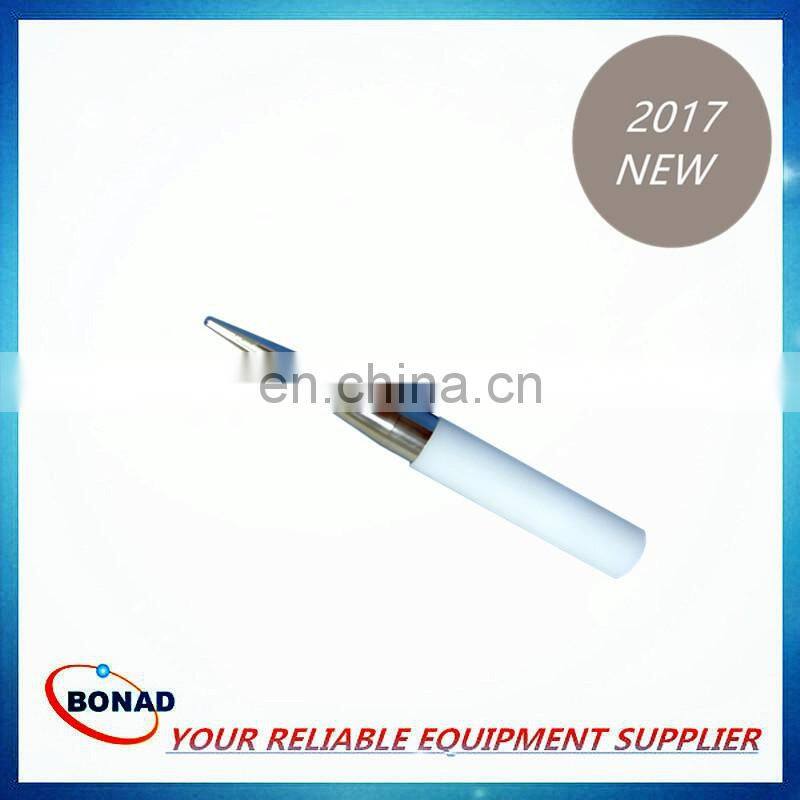

PA160 UL standard test probe for hazardous moving part
PA160 UL standard test probe for hazardous moving part
1.Application:
The UL test probe PA160 is used in UL 507 to test for hazards from moving parts.It has two tapers from the one inch ending at the tip. The tip has a 0.125 inch (33.175 mm) radius. The handle end has a threaded hole that accepts a force gauge (dynomomter).The probe is made of stainless steel.
2.Technical parameter:
For testing accessibility to hazardous moving parts such as access to fan blades through a fan finger guard.
Complies with UL Standards. The handle is made of nylon. The finger is made of stainless steel.
Rigid Finger length | 88.9mm(3.5inch) |
| Head length | 25.4mm(1inch) |
| Head Radius | R3.175mm(1/8inch) |
| Head former diameter | 12.7mm(1/2inch) |
| Tail Diameter | 25.4mm(1 inch) |
| Reference | UL1278 Fig 8.1(PA130A),UL507 Fig 9.1(PA135A),UL1206 |
