IEC Test Probes Kit for safety testing

IEC60529 IP1X Test Probe A

Article NO.: BND-A

Specification:

IP1X Probe A /Test Probe A

1, According to : IEC61032:1997 /IEC60529:2001 and UL

2, IP1X Probe A (Test Probe A)  is necessary appliance for domestic and similar electrical appliance of against electric shock protection test.

Technical Parameters:

1, Ball Diameter: 50mm

2, Baffle Plate Diameter: 45mm

3, Baffle Plate Thickness:4mm

4, Handle Diameter: 10mm

5, Handle Length :100mm

6, According to IEC61032 figure 1 (the Test probe A), table 6

Application:

1, Sphere can not touch the live parts or the hazardous parts.

2, In the testing requirements of preventing from approaching to the hazardous parts, the test steel ball without force needs to be used with pull and push dynamometers ,the sphere body needs to exert thrust of 50±5N (30±3N) to the protective covering.

IEC61032 IEC60529 IP2X Test Probe B Test Finger

Article NO.: BND-B

Specification:

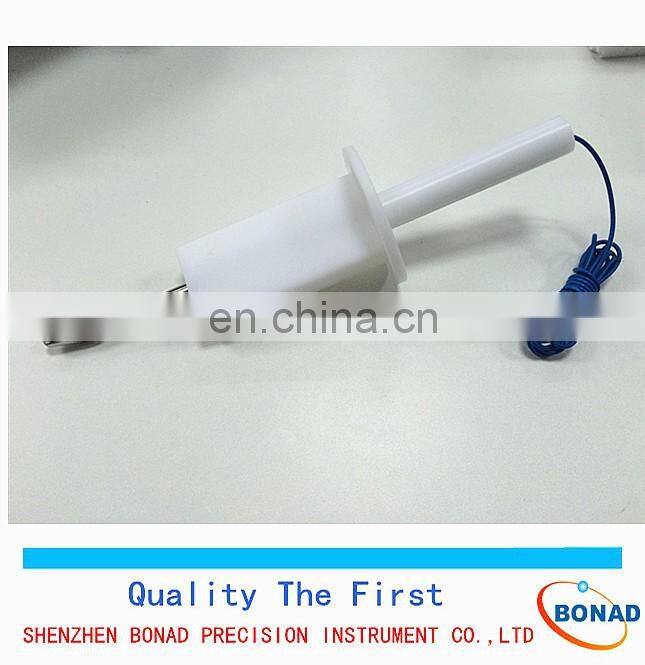

The Standard Test Finger Probe / The Standard Test Knurled Finger Probe / Test Probe B / IP2X Protection Grade Probe

Technical Parameters:

1, Knurled Finger Diameter:12mm

2, Knurled Finger Length :80mm

3, Baffle Plate Diameter :50mm

4, Baffle Plate Length : 100mm

5According to :IEC60065, IEC 60335-1, IEC 60529, IEC60884-1, IEC60950, IEC61032, IEC69745-1

Application:

1.The joint parts of the test finger cannot touch the live parts or hazardous parts, and the 50mm-20mm Baffle Plate cannot enter.

2.In the test requirements of preventing from approaching to the hazardous parts, the probe B test probe needs to with a 10±3N thrust. The product without force should be used with push-pull dynamometers.

3.In the test of against electric shock, wiring ,configuration and power and indicating device are needed. Turn on the power of the tested sample, and exert the corresponding force to determine whether the grounding line are connected (3 inserts).

4.Both joints shall permit movement in the same plane and the same direction through an angle of 90° with a 0° to +10° tolerance

This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger.

Tolerance on dimensions when no specific tolerance is given:

– on angles: 0

−10°
– on linear dimensions: up to 25 mm: 0

− 0,05 mm; over 25 mm: ± 0,2 mm.

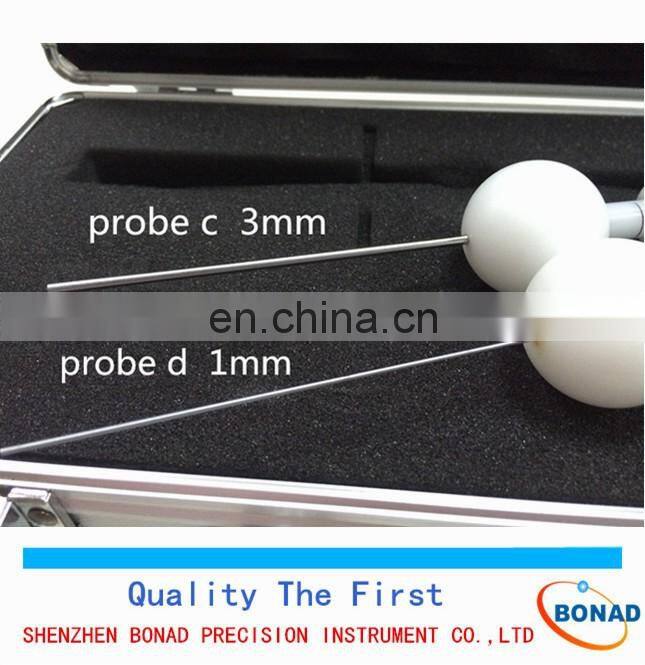

 IEC61032 IEC60529 IP3X Test Probe C

Article NO.:BND-C

Basic Introduction:

1, According to: IEC61032:1997/IEC60529:2001 AND UL

2, IP3X Test Probe C ( Test Probe C)  is the necessary tool to proceed protecting electric shock test of domestic and similar electrical appliances.

Technical parameters

1,  Test Probe Length :100mm

2,  Test Probe Diameter:2.5mm

3,  Dam- sphere Diameter:35mm

4,  Handle Diameter:10mm

5,  Handle Length 100mm

6,  According to IEC61032 figure 3 (the Test probe C), table 6

Application:

1,  Standard test refers to the joint part can't touch the live parts or close to the hazardous parts, and 35mm circular baffle cannot enter .

2,  In the test requirement for preventing from approaching to the hazardous parts,  Test Probe C/D need to exert a 3±0.3N or 1±0.1N force.

EC61032 IEC60529 IP4X Test Probe D

Article NO.:BND-D

Basic Introduction:

1, According to: IEC61032:1997/IEC60529:2001 AND UL

2, IP4X Test Probe D ( Test Probe D)  is the necessary tool to proceed protecting electric shock test of domestic and similar electrical appliances.

Technical parameters

1, Test Probe Length :100mm

2, Test Probe Diameter:1.0mm

3,Dam- sphere Diameter:35mm

4,Handle Diameter:10mm

5,Handle Length 100mm

6, According to IEC61032 figure 4 (the Test probe D)

Application:

1, Standard test refers to the joint part can't touch the live parts or approachi to the hazardous parts, 30mm circular baffle cannot enter .

2,In the test requirement for preventing from approaching to the hazardous parts,  Test Probe D need to exert a thrust 1±0.1N

Note : The Test Probe is precision stainless steel products, take up and put down slightly when using, and pay attention to maintenance.
