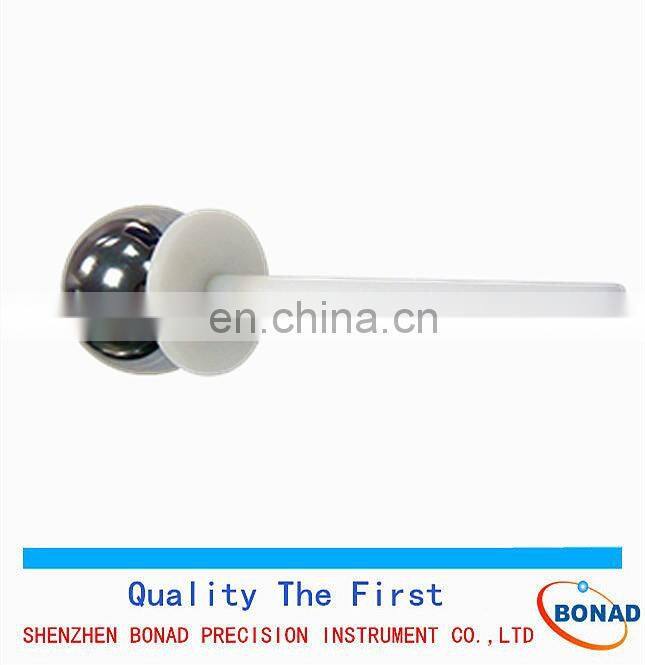

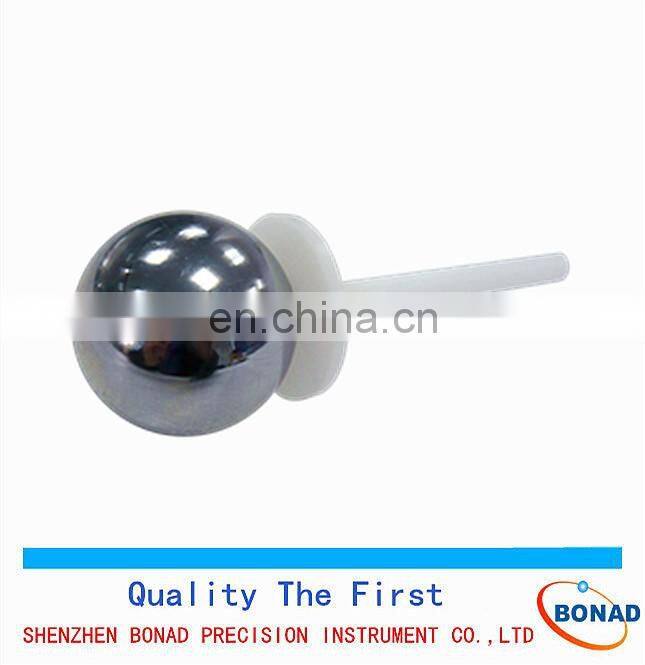

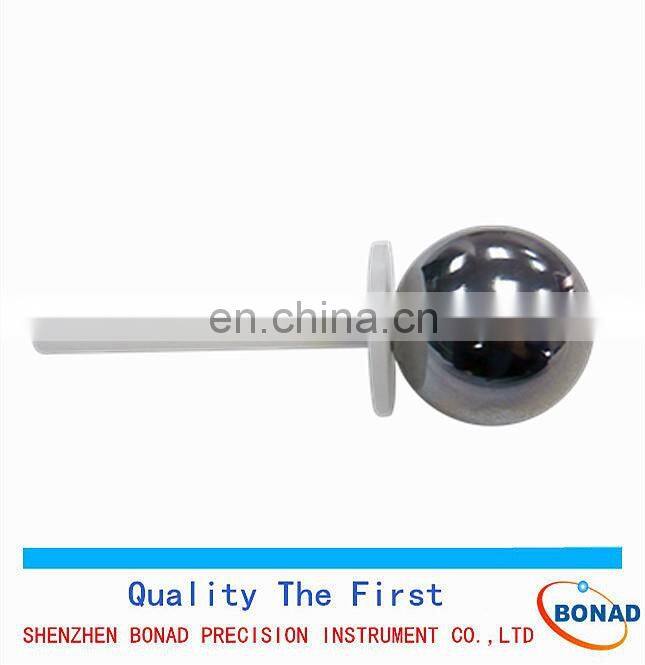

IEC60529 IP1X Test Rod Test Probe With Calibration

IEC60529 IP1X test rod test probe with calibration

Article NO.: BND-A

Made in Shenzhen

Test Probe A meets the standard requirements of IEC61032 IEC60529.The Test Probe is a wide range of probes to meet the most common standards including those from IEC, EN, UL, GB, and others. Such standards require the checking of accessibility to dangerous parts of home electronics and appliances, toys, tools, and a host of other products that are intended to be protected by enclosures. These probes simulate human fingers, tools, and other items that would be hazardous to come in contact with certain parts of products.

Specification:

IP1X Probe A /Test Probe A

1, According to : IEC61032:1997 /IEC60529:2001 and UL

2, IP1X Probe A (Test Probe A)  is necessary appliance for domestic and similar electrical appliance of against electric shock protection test.

Technical Parameters:

1, Ball Diameter: 50mm

2, Baffle Plate Diameter: 45mm

3, Baffle Plate Thickness:4mm

4, Handle Diameter: 10mm

5, Handle Length :100mm

6, According to IEC61032 figure 1 (the Test probe A), table 6

Application:

1, Sphere can not touch the live parts or the hazardous parts.

2, In the testing requirements of preventing from approaching to the hazardous parts, the test steel ball without force needs to be used with pull and push dynamometers ,the sphere body needs to exert thrust of 50±5N (30±3N) to the protective covering.
