Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-TYF | Power | Electronic | |
Product Description
Product Description

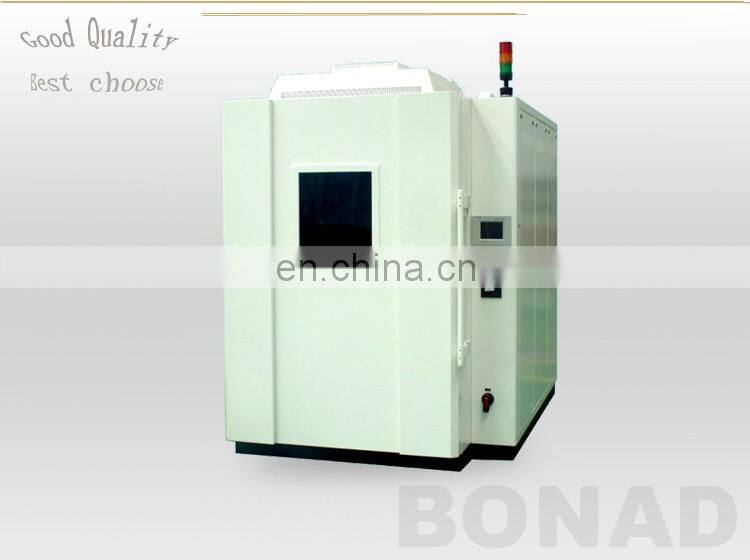

Model BND-TYF Solar Radiation Test Chamber for Aging Test
Introduction:
Solar radiation chamber provides accelerated ageing testing of polymer and plastic materials and products. During their life time, plastics are exposed to all kinds of environmental impacts such as light, humidity and temperature. Our experts test the resistance of polymeric products against environmental impact, weathering, temperature, humidity, repeated sterilization or UV/ Xenon exposure. The polymer materials or products will be exposed under defined conditions to heat, UV, and other stress to determine its critical properties before and after exposure.
Product show
Detailed Information
Parameters:
| Model | TYF-2B | ||||||
| Standards Applied | GJB150.GJB150A | ||||||
| Performance | Workroom Dimensions | 1200×1100×1650(D×W×H) | |||||
| Temperature Range | 10°C-+90°C | ||||||
| Temperature fluctuation | ≤±1°C | ||||||
| temperature deviation | ≤±2°C | ||||||
| Humidity Range | 50-95%RH | ||||||
| Spectrum Wavelength | 280-300nm | ||||||
| Lighting intensity | 0-1120w/m2. divide into 8 block | ||||||
| Irradiation distance | 800mm | ||||||
| Lighting supply | Air-cooled halogen lamps | ||||||
| Total power | 18kw | ||||||
| The test of Temperature and humidity | Constant or procedure | ||||||
| Others | The rate of high temperature change≤2ºC/min;Variable rate of Sunshine heating effect ≤0.16ºC/min; temperature of the Sample surface on top:96ºC±8ºC | ||||||
| Controller | emperature and humidity integrated controlle,color touch screen of the Chinese language ;The light energy of automatic measuring-controlling instrument | ||||||
Packaging & Delivery
Packaging: Wooden Box
Delivery:Shipped in 4~6 weeks after payment
