ul 1598 Rain Test Spray Equipment
US$ 1,800 - 4,500
/ Piece
1 Piece(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
-
ul 153 Water Spray Test Device
-
IEC60112 Comparative Tracking Index Test Chamber for Leakage Current Test
-
Ul94 Iec60695 Horizontal and Vertical Flame Chamber for Flammability Plastic Test
-
60L Climatic Corrosion Test Chamber for Salt Spray Test in Laboratory
-
Xenon Arc Lamp Climate Aging Simulated Test Chamber
-
IEC60335-1 Mechanical Strength Test Equipment Iron Drop Tester
Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-UL | Power | Electronic |
wooden case
Product Description
Product Description

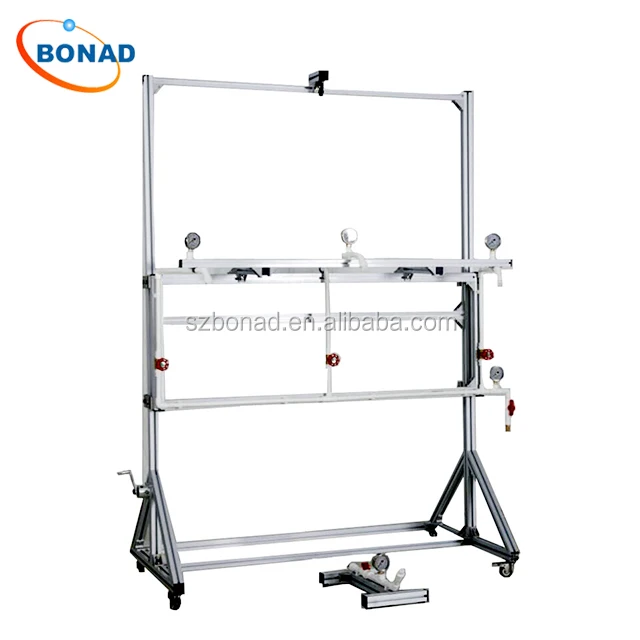

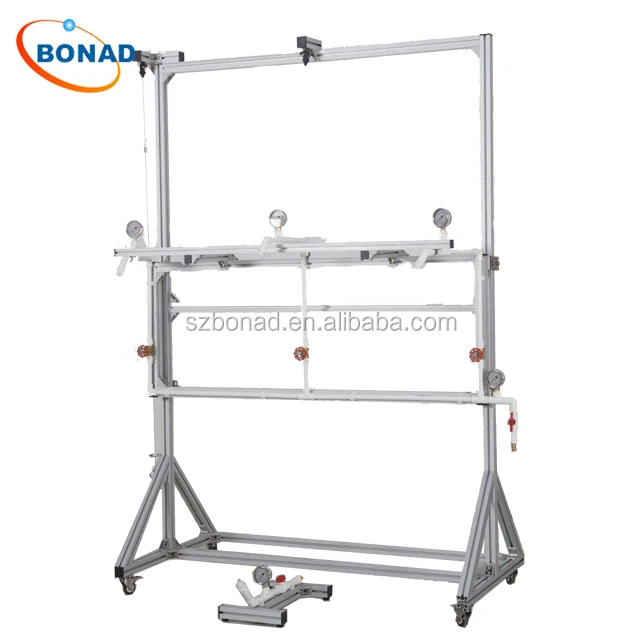

UL 1598 rain test spray equipment
The UL water spray test device is based on the requirements in Figure 38.1 and Figure 38.2 of the UL60507-ENGL 1999 standard and the "Article 10 / Figure 11 clauses in the ANSI Z21.10.3-2004" and "ANSI Z21.58 standards" and "CSA4.3 -2004 "standards to meet UL1598, UL153, UL154B, UL1703, UL8750, UL1741, UL514B, UL1278, UL1571 and other standards.
Title goes here.
1. Applicable to UL rain test and 45 ° water spray test of products.
2. This device consists of two parts: UL rain test device (3 UL nozzles above) and sprinkler test device (1 UL nozzle below).
3. The frame part of this device is made of molded aluminum material, which has a stable structure and is easy to clean.
4. The nozzle holder is movable and can be freely raised and lowered by a hand-cranked stainless steel wheel device.
5. This device adopts the original imported nozzle of UL laboratory, which fully complies with UL standards.
6. The base of the bracket adopts universal castors with brakes, which is convenient for movement and fixation.
7. Adopt the domestic brand "Hongqi" stainless steel pressure gauge to display the water spray flow (each nozzle has a corresponding pressure gauge).

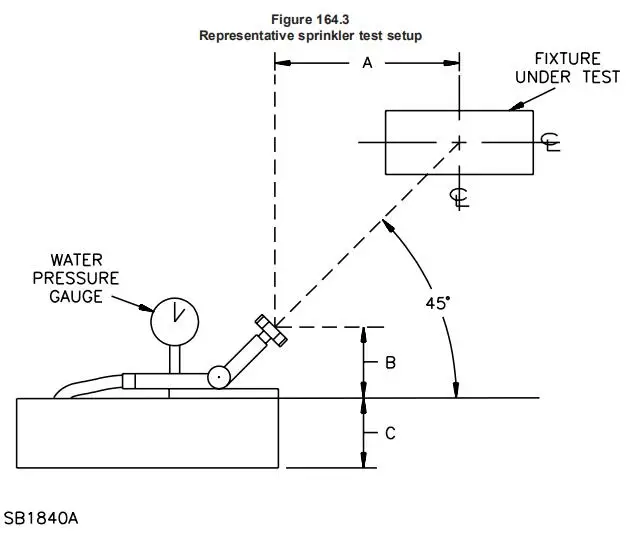

8. The nozzle layout of the equipment is strictly designed according to the standard, as shown in the figure:
Specification
1 | Equipment external dimensions Nozzle | Approx. Length 1500 * width 800 mm |
2 | Adjustable range of equipment height | 1000 ~ 2000mm |
3 | Nozzle number | 4 |
4 | The distance between the water spray junction and the ground | 0-1000mm |
5 | Lower nozzle spray angle | 45 ° (horizontal direction) |
6 | Water flow rate | ≥10L / min |
7 | Total water pressure | 50 ~ 150Kpa |
8 | Single nozzle pressure | 34.5Kpa |
9 | Number of pressure gauges | 5 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Company Profile
Shenzhen Bonad Instrument Co., Ltd.
14 Stanards drafted and issued by Labthink -- 100 Patents granted by Labthink -- 410 m2 Laboratory to provide testing services -- 20 years experienced lab technicians to provide solutions -- 12 months warranty -- Remote Services (Free of Charge allthrough lifetime)
