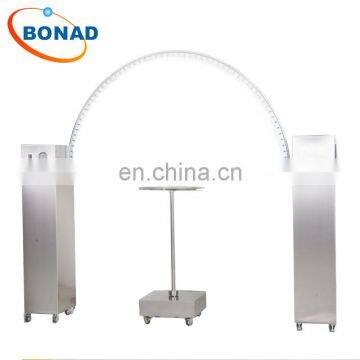

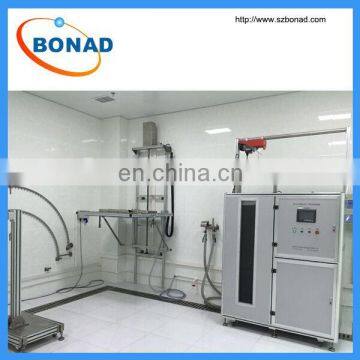

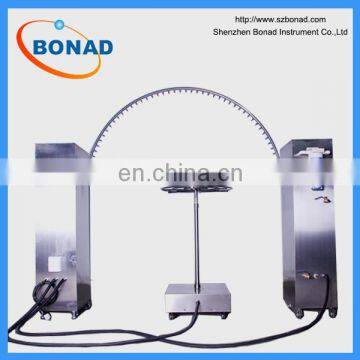

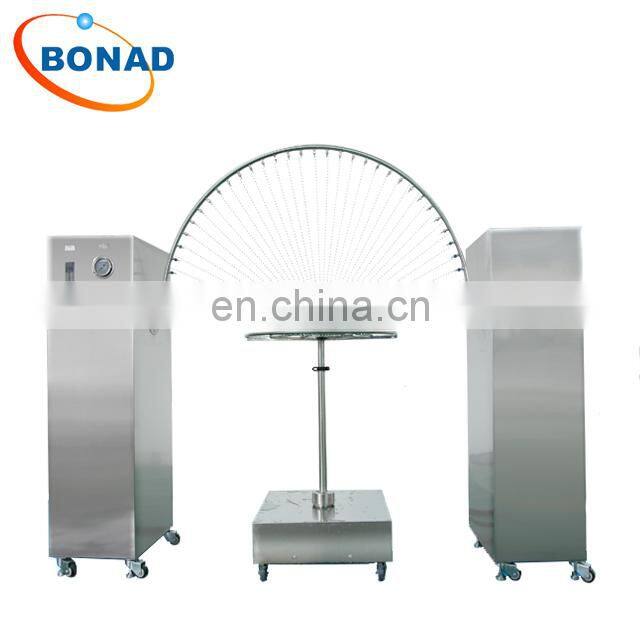

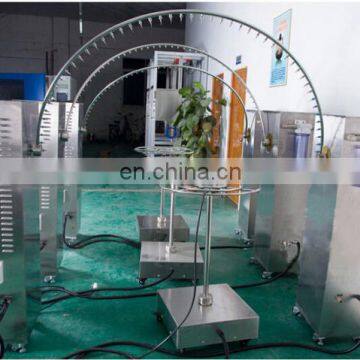

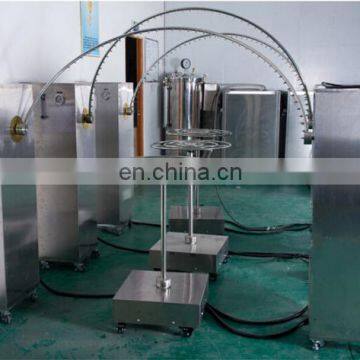

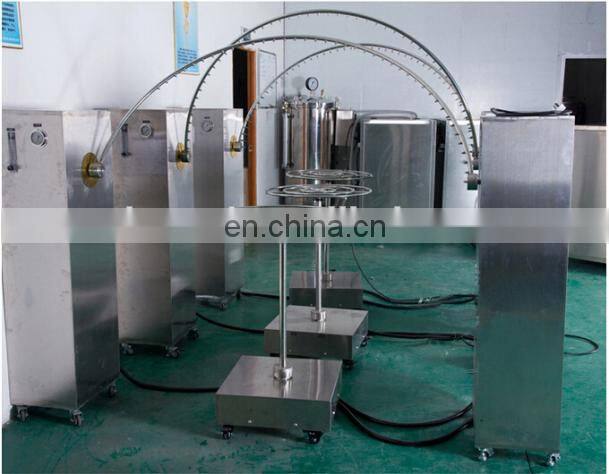

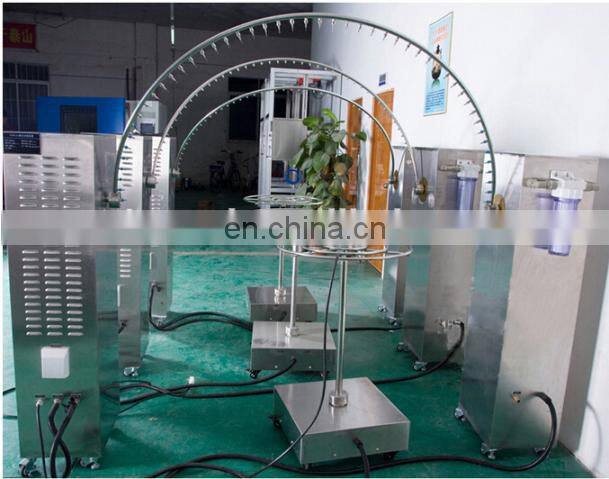

IEC60529 IPX3 IPX4 Oscillating rain Spray Tester
- 50 Piece / Pieces per Month
- Shenzhen China
- T/T Credit Card
You May Like
-
High Quality IPX6 Spray Nozzle Tester
-
IPX3 /IPX4 Rain Spray Test Chamber ipx3 IPX4 testing equipment
-
IPX5 IPX6 Spray Hose Nozzle Test Device factory price
-
IPX3 IPX4 waterproof IP Tester
-
IPX3/4 Tester /Rock Pipe Shower Testing Instrument (IEC60529 IPX3 IPX4)
-
IEC60598-1 IPX3 IPX4 brass jet spray nozzle
Product Details
| Brand Name | BONAD, BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-IPX3, BND-IPX3 | Power | Electronic | |
Wooden box
Product Description
IEC60529 IEC60335 IEC60598 IPX3 IPX4 Oscillating Spray Tester
IEC60529 IEC60335 IEC60598 IPX3 IPX4 Oscillating Spray Tester
1.Rain Spray Test Chamber is designed according to the standards of IEC 60529-2001 & GB 4208-93 & GB10485 (Enclosure protection level). It is mainly used for electronic products to do the waterproof test of the second characteristic number 3 / 4. The appliance meets the test requirement of IP grade IPX3/IPX4.
2.This appliance is applicable to the enclosure protection grade assessment of electronic appliances and products. It is aiming to test the waterproof performance of enclosures by testing the harmful effect to the appliance when water into the enclosure.
item |
|
Chamber specification | R400mm/R600mm |
Chamber material | SUS304 stainless steel plate (external diameter:19mm Thickness:2mm) |
Dripping aperture | 0.4mm |
Spray angle | 120°C (IPX3 ),180°C(IPX4 ) |
Swing angle | 120°C (IPX3 ),360°C(IPX4 ) |
Rainfall | 0-10L/min (adjustable) |
Chamber swing speed | IPX3(swing when testing,2x120 degree):4s IPX4(swing when testing,2x180 degree):12s |
Testing time | 0-999min |
Material | stainless steel |
Note:
1.It can discharge the water inside the chamber automatically after the test.
2.T he angle between IPX3 and IPX4 is alterable if you block the nozzle in both end when testing.
3.The rotational structure of chamber is driven by servo motor drive, it is precision and accurate in time and amplitude.
Company Profile
14 Stanards drafted and issued by Labthink -- 100 Patents granted by Labthink -- 410 m2 Laboratory to provide testing services -- 20 years experienced lab technicians to provide solutions -- 12 months warranty -- Remote Services (Free of Charge allthrough lifetime)
