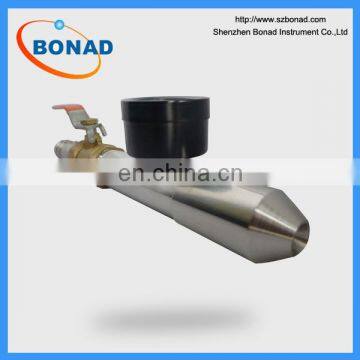

IEC60529 IPX5 stainless steel water spray nozzle
IEC60529 IPX5 stainless steel water spray nozzle
Specifications
internal diameter of the nozzle:6.3mm
--delivery rate:12.5/min+/- 5%
--water pressure:to be adjusted to achieve the specified delivery rate
--Core of the substantial stream:circle of approximately 40mm diameter at 2.5 distance from nozzle
--Test duration per square meter of enclosure surface area likely to be sprayed :1mm
--Minimum test duration :3min
--Distance from nozzle to enclosure surface:between2.5 and 3m

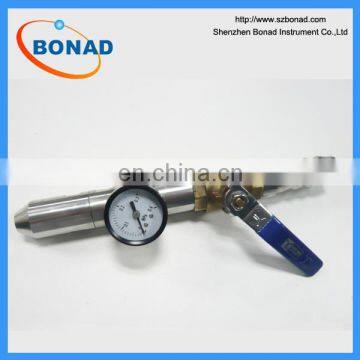

Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.The interchangeable nozzles assemble easily to the jet handle.
The nozzles are made from stainless steel.
Pressure Gauge | 0 - 1.6 bar |

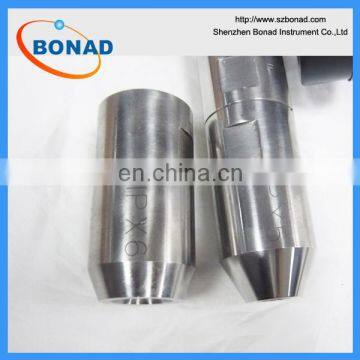

Nozzle Diameter | 6.3mm(IPX5) ; 12.5mm(IPX6) |
Material | Stainless steel nozzle |
Reference standards | IEC60529 IPX5 IPX6, IEC60598-1 IEC 60335-1,IEC60745-1 |
Include: Pressure gauge.
Stainless steel nozzle.
Valve for water flow regulation and shut off.
