Factory hot sales universal the price of a mobile tester test for dropping cell phone drop testing machine
Summary:
Mobile Phone Free Drop Test Machine, Electric Drop Tester for Cell Phone is suitable for mobile phone (mobile phone), walkie-talkie, electronic dictionary, building intercom phone, CD / MD / MP3 and other small consumer electronic products and parts of the free fall test; aircraft using pneumatic structure, Placed in the special fixture (adjustable stroke) clamp, press the drop button, the cylinder release, the specimen will be free fall test, drop height can be adjusted up and down, the height table can be found that the specimen drop
height, the machine key components Reliable performance, a variety of drop floor available.
Corresponding Standard:
GB/T 31485-2015,GB/T 31241-2014,UN38.3,IEC62133,QC/T743-201X,GB/T 8897.4-2008
Features:
1 Mobile Phone Free Drop Test Machine, Electric Drop Tester available for package face, corner, edge free drop testing.
2 With height digital display instrument and tracing height with encoder, so can measure the precision drop height.
3 The drop height tolerance within 2% or 10mm;
4 Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping . The drop height controllable, and with height steel ruler which makes drop height available.
Specifications:
| Item | Mobile Phone Free Drop Test Machine, Electric Drop Tester |
| Drop Height | 300~2000mm |
| Drop method | Face, edge, corner dropping |
| Max Test Loading | 5kg±100g |
| Drop floor material | A3 steel plate (Acrylic plate, marble plate, wooden plate optional ) |
| Lifting method | Motor lifting |
| Clamping method | Pneumatic dropping adsorption, any part can fall |
| Drop height scale | 1mm |
| Drop floor dimension | W500 x D600 x H20mm(solid plate) |
| Air Source | <1mpa |
| Power | 220V 50Hz |

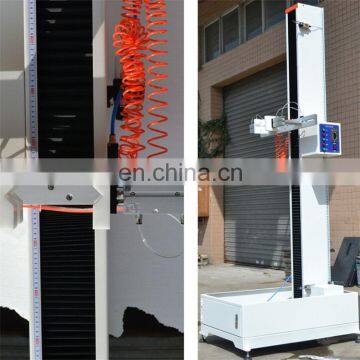

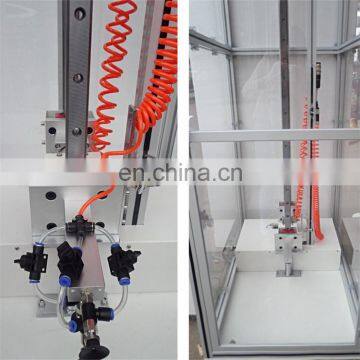

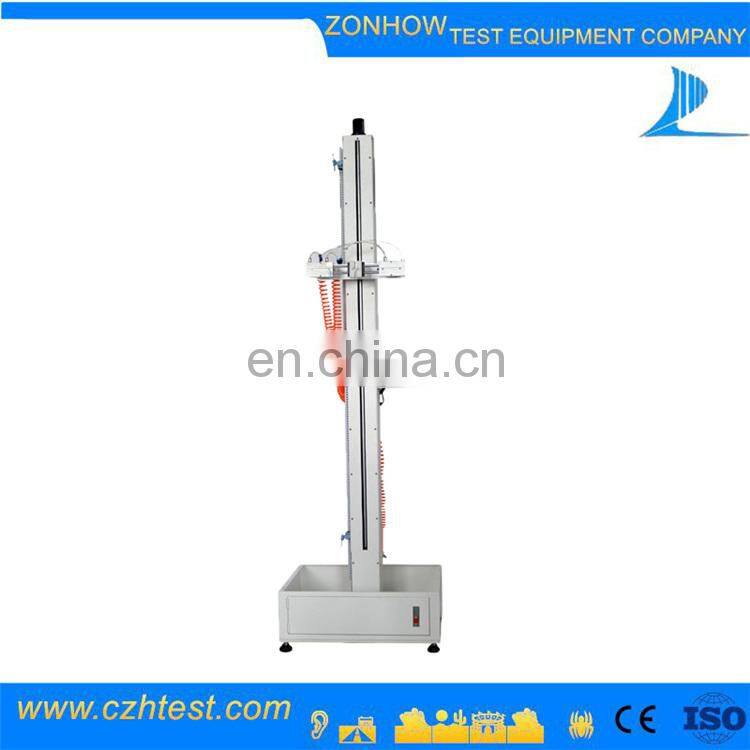

Product show of our Mobile Phone Free Drop Test Machine, Electric Drop Tester
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
