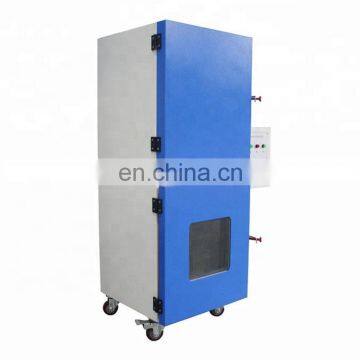

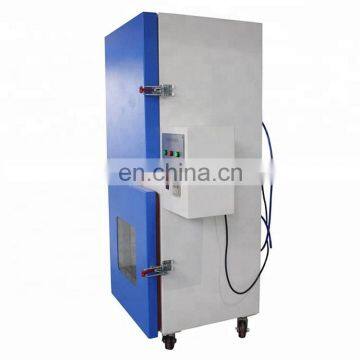

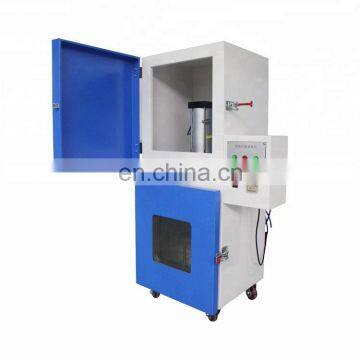

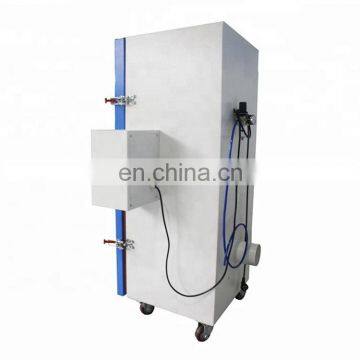

Battery low voltage simulation test boxFeatures:
(1) Put the thermocouple-coupled test sample battery (the thermocouple contacts fixed on the large surface of the battery) in a fume hood, use a 2-8mm diameter rustless steel needle or tungsten needle to 10mm/s - The speed of 40mm/s pierces the center of the largest surface of the battery and remains at any time.
(2) The test should be carried out at an ambient temperature of 20°C±5°C. The safety performance of the battery is verified by acupuncture test.
(3) The sample to be tested shall not be a fire or explode, but shall be qualified, otherwise it shall be a failure.
(4) The testing machine can be remotely controlled and manually controlled, making the operation more convenient and safe.
Battery acupuncture tester is mainly used for simulating the reliability of the battery after the internal battery is damaged after being penetrated by a sharp metal object.
SPECIFICATIONS | ||||
Model |
DZ-507 |
|||
Steel needle |
2mm~8mm high temperature resistant steel needle |
|||
Tip distance from the lower part |
250mm |
|||
Clipping distance |
150mm |
|||
Penetration force |
150-200kg |
|||
Power display |
Pressure sensor, LED display |
|||
Stroke |
100mm |
|||
Driving method |
Cylinder drive |
|||
Box material |
inner box stainless steel, outer box cold rolled steel sheet plastic treatment |
|||
Power supply |
220V, 50/60Hz |
|||
Battery Overcharge Tester Battery squeeze tester
Battery Impact Tester Battery Needle Puncture Tester Battery short-circuit tester
1.Are your company a trading one or a factory ?
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
