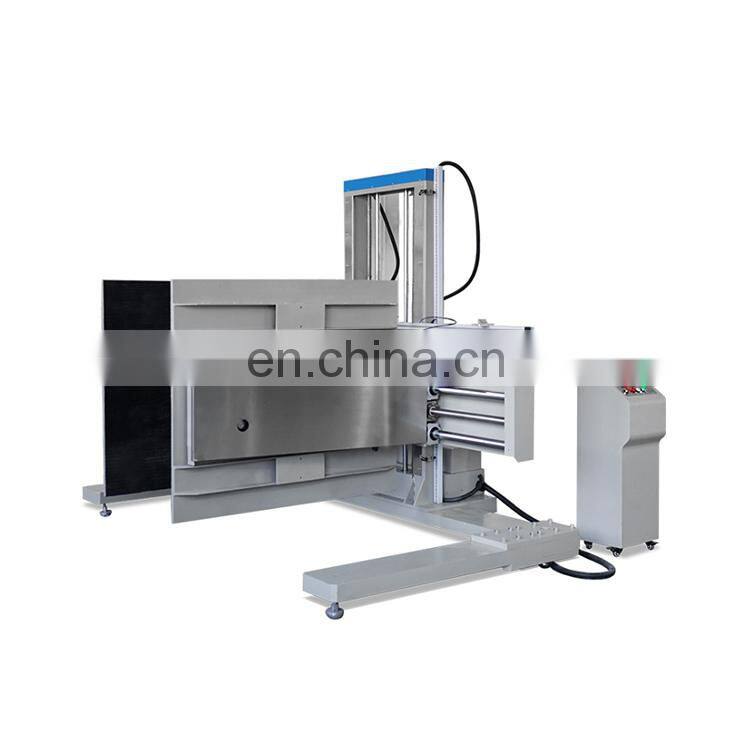

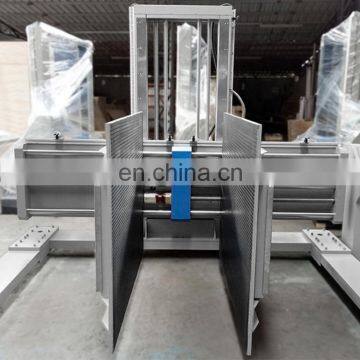

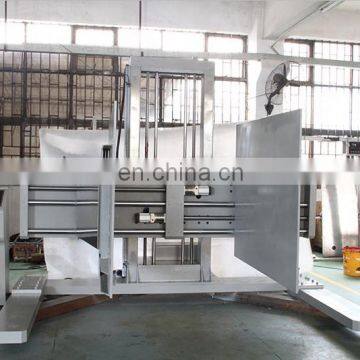

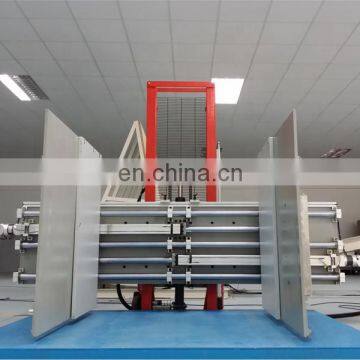

ASTM D6055 Package Horizontal Compression Tester
ISTA Packing Clamp Handling Testing
Summary:
ASTM D6055 Package Horizontal Compression Tester ISTA Packing Clamp Handling Testing simulates the process the schnabel car discharge the package, during this process, the clamping force of the both boards will affect the package and cargo. And this test is to evaluate the resistance property of the package toward this clamping force.
It is suitable for the packing of kitchen ware, furniture, household appliances, toys and other finished products, especially for the clamping strength test of the packing pieces required by SEARS in the United States.
Standard:
ISTA 6 SERIES: Member Performance Tests.
ASTM D-642
ASTM D6055
Specifications:
Max. Force |
500kg (customized) |
Motor |
Panasonic Servo Motor |
Clamping pressure force |
According to the transport diagram on the test sample, the operator can add 400~3000Lb (adjustable) pressure force on the corresponding surface |
Clamping board size |
1200*1200mm |
Clamping board adjustable height |
0~1000mm |
Lifting speed |
10-305mm/min |
Clamping board expansion width |
200~2000mm |
Baseboard dimension |
1500*1500mm |
Accuracy |
within ±5% |
|
Clamping board requirement |
Make sure the two clamping board are flat, parallel and non-deform under the work condition(2000Pound) and clamp board and land are vertical. Clamping board thickness no less than 25mm. |
Controller |
Touch screen |
|
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Power |
AC380V, 50Hz |
Carton Compression Tester Bursting Strength Tester Edge Ring Crush Tester Simulated Transport Vibration Tester
We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
ZONHOW Though 10 years of continuous development, our company has established the main products line of Universal strength testing machines for tension, compression, flexure, and shear etc. Environmental testing chambers and Cell phone, computer testing machines. Package and paper print test equipment and so on! Our equipment is used in over 80 countries worldwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
