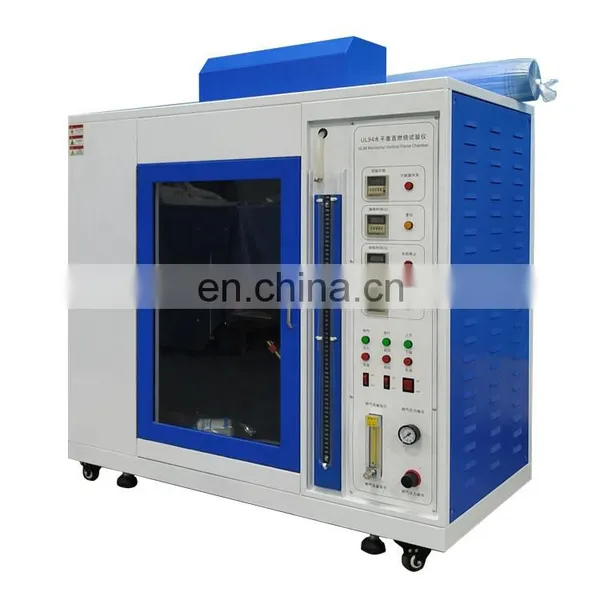

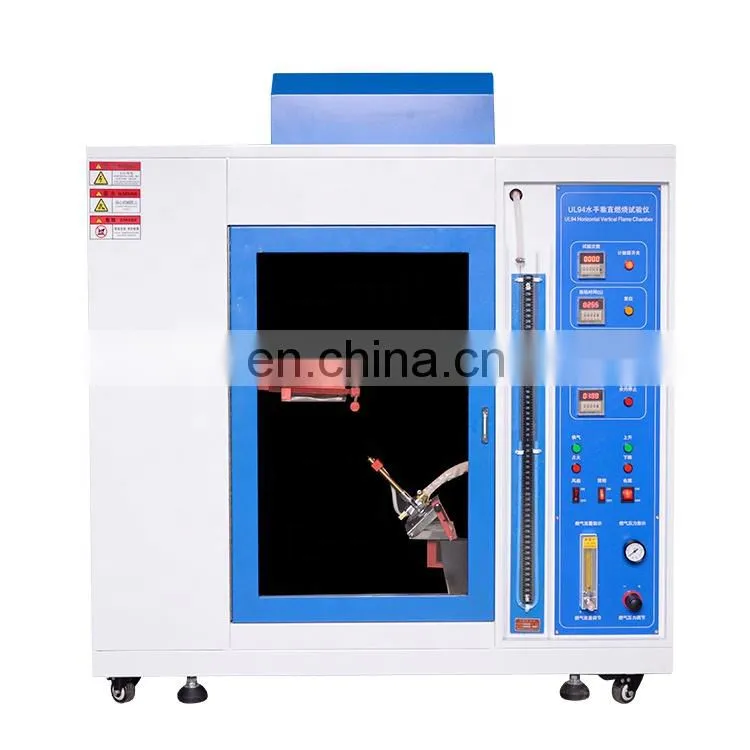

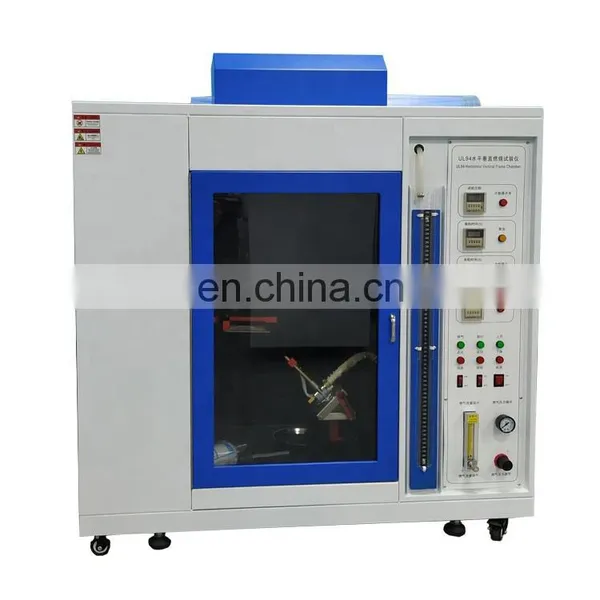

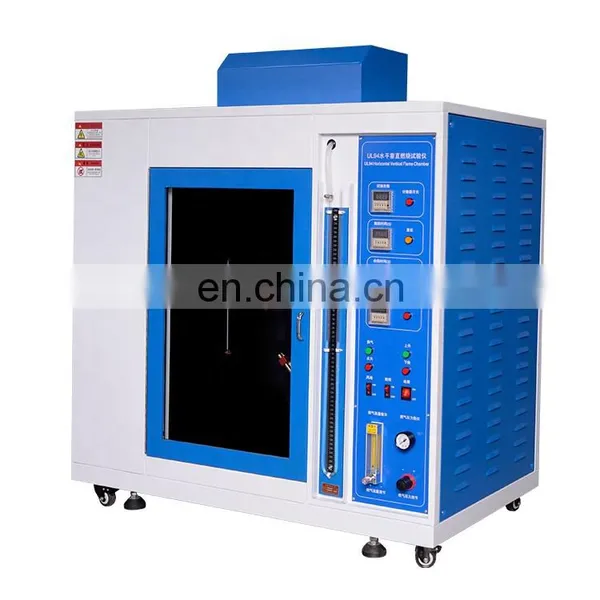

ZONHOW UL 94-2006, UL1581 UL13 UL444 UL1655 UL94 Horizontal Vertical Flame Test Chamber
Summary:
- This testing machine according to the American UL94 StandardGB/T2408-1996 and the relevant provisions of IEC60065 are designed and manufactured to test the combustion characteristics of plastic materials.
- And equipped with gas flowmeter, adjust the flame size, simple and safe operation. This instrument can evaluate the flammability of materials or foam, such as v-0, v-1, v-2, HB, 5V, hf-1, hf-2, HBF grade.
Test standards:
- According to UL 94-2006, UL1581 UL13 UL444 UL1655 CAS ft-1, IEC 60695-11-4, IEC 60695-11-3, GB/ t5169-2008 series and other standards, Bunsen burner of specified size and specific gas sources (methane or propane) are used for the horizontal and vertical combustion of test articles according to a certain flame height and a certain flame Angle. The ignitability and risk of ignition were evaluated by means of ignition duration and burning length.
Application:
- 1. It’s suitable for lighting equipment, electronic wire, low-voltage electrical appliances, household electrical appliances, machine tool electrical appliances, motor, electric tools, electronic instruments, electrical instrumentation, electrical fittings and accessories such as electrical and electronic products and its component parts in the research, production and quality inspection departments, can also be applied to insulation materials, engineering plastics industry or other solid combustible materials.
- 2. Test the flame resistance of organic materials such as wire and cable insulation materials, printed circuit board materials and IC insulators. During the test, put the specimen on the top of the fire, burn for 15 seconds and reduce it by 15 seconds.
- Working Principle: This tester provides a flame burning source, manually operated the flaming time, remaining flame time and remaining glow time.
Technical specifications:
|

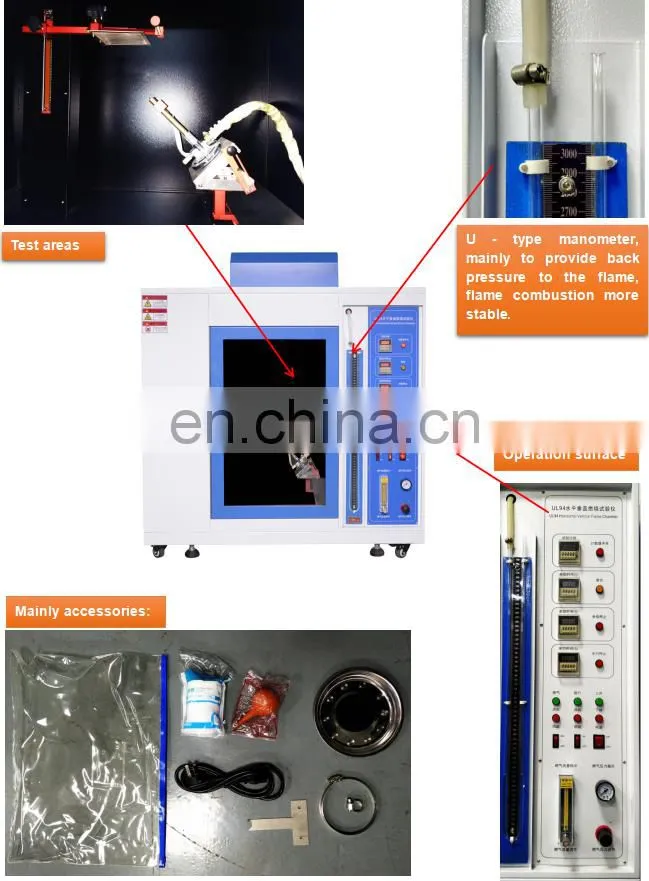

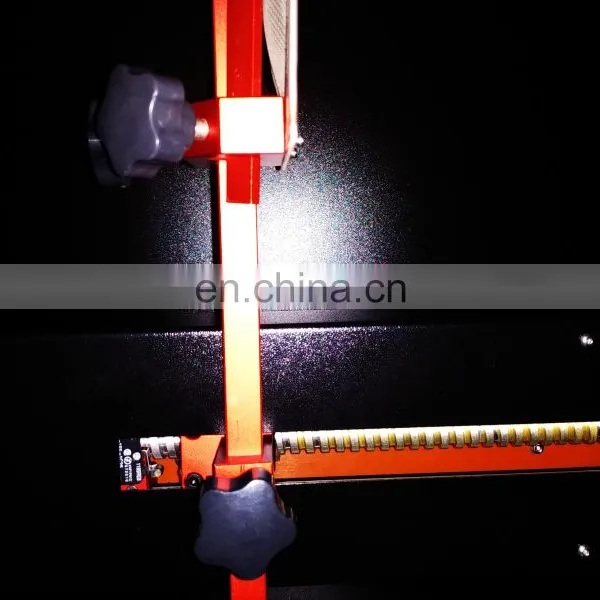

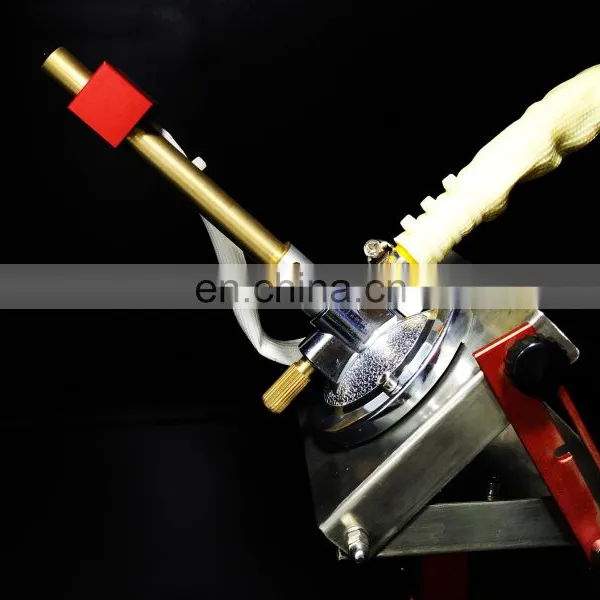

1. Box volume: ≥0.5 m3, with glass observation door 2. Flame time: 0 ~ 99 minutes and 99 seconds can be set 3. Afterflame time: 0 ~ 99 minutes and 99 seconds can be set 4. Afterburn time: 0 ~ 99 minutes and 99 seconds can be set 5. Combustion Angle: 20°, 45°, 90° (i.e. 0°) can be adjusted 6. Size parameters of the burner: Ø 9.5 mm inner diameter nozzle, nozzle effective length is 100 mm, with air conditioning holes 7. Flame height: adjustable from 20mm to 175mm according to standard requirements 8. Sample alignment: the motor drives the positive splines up and down 9. Product features: it is also equipped with lighting device, air extraction device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas u-type pressure meter and sample fixture 10. Working power supply: single phase AC220V/50HZ 11. Control mode: panel button control. 12. Insulation grade F 13. Protection grade: IP20(suitable for indoor use) 14.Fan noise: 45 db 15. Exhaust emission method: side in wind, top out wind 16. Working mode: it can work continuously 17.Protection function: combustible gas concentration detection and alarm: when the concentration of combustible gas in the combustion chamber exceeds the standard, the machine will automatically cut off the gas supply and give an alarm, and start the exhaust system to start pumping until the air quality in the combustion chamber returns to normal. 18. External size host: width 570* depth 500* height 1650mm 19. Applicable ambient temperature -10℃ ~ +50℃ 20. The movement mode adopts universal caster with heavy load, 2 before and 2 after 21.Applicable relative humidity: ≤95% 22. Elevation ≤2500 m |
We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
|
1. Are your company a trading one or a factory? Factory + trade (integration),12 years focusing on test instruments field,5 years exporting experience. OEM is also acceptable for us.
2. How to choose the most suitable products? Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3. What’s the delivery term? Most of the time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
4. Do you accept customization service? Yes, of course, we can not only offer standard machines but also customized machines according toyour request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5. Can we visit your factory before the order? Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange a hotel and pick up you from the airport.
6. Do you have customers from our country before? Now our testing machines have been sold to more than 120 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil and so on.
7.How about your warranty? Generally, our warranty is for one year. Within the warranty period, we can offer technical support and part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for the machine, is it safely protected during transportation? Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
9. What is the order process? Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product The product is shipped with operating instructions and video of the English version. |
|
