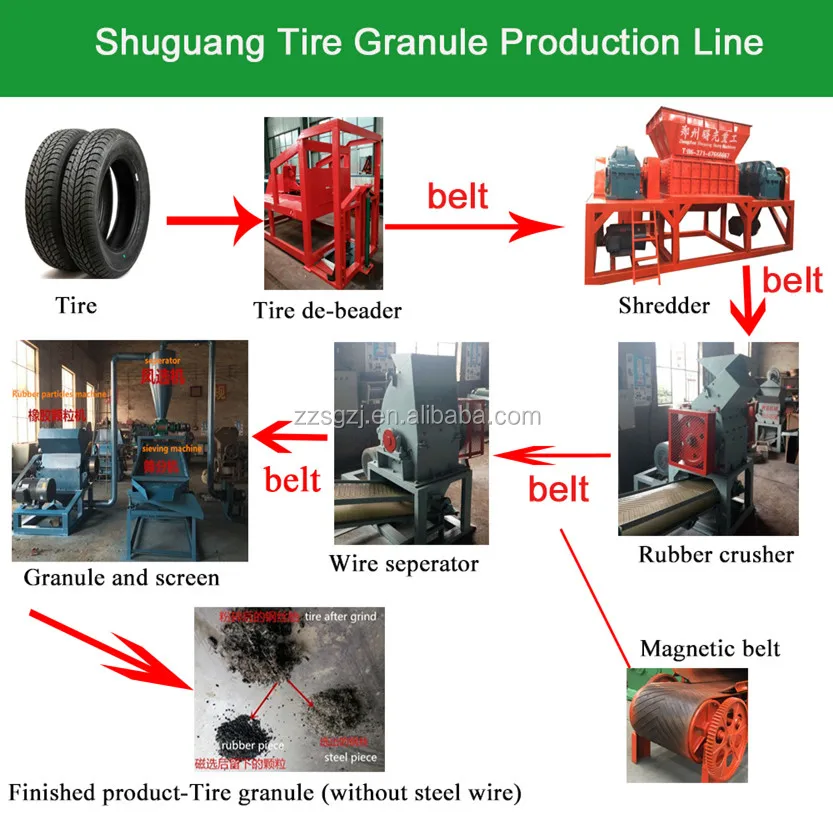

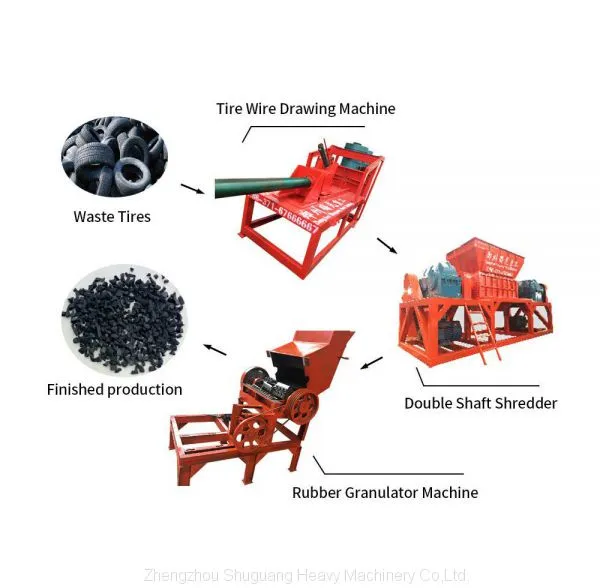

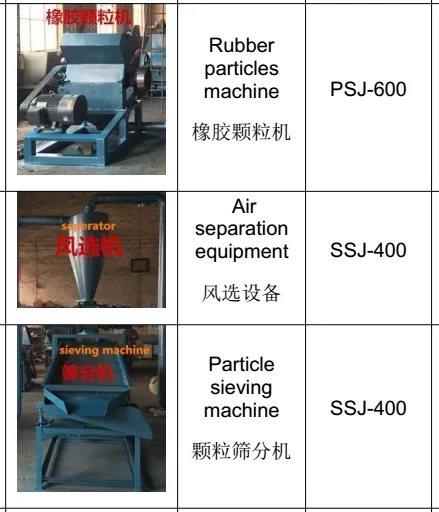

This whole plant will include Tire debeader---Tire shredder----Rubber crusher---Wire seperator----Rubber particles machine--- Air separation equipment----Particle sieving machine.
Equipment can be configured according to actual needs

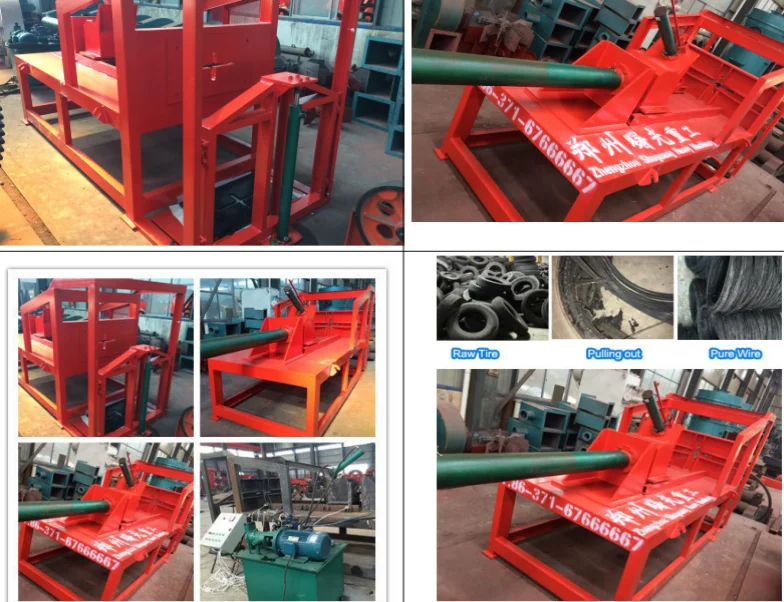

1.Tire de-beader
Pull out the bead wires inside tires’ side walls completely before cutting and shredding processed.
Structure and principle
1.Before cutting and grinding use steel wire drawing machine, it can protect the blades of tire shredder, prolong the service life of the blade and increase the working efficiency of the shredder ;
2.This model is composed of motor, hydraulic system, steel wire retractor, pull mouth, body;
3.The motor drives hydraulic system and oil cylinder, and steel wire retractor is connected to the cylinder pull rod. The movement of oil pump and oil cylinder makes wire retractor do reciprocating movement.
2.Tire Shredder
After seperated with the steel wire,the tire will be conveyed into shredder machine,the remain tire will be shreded to about 30-50mm pieces size.

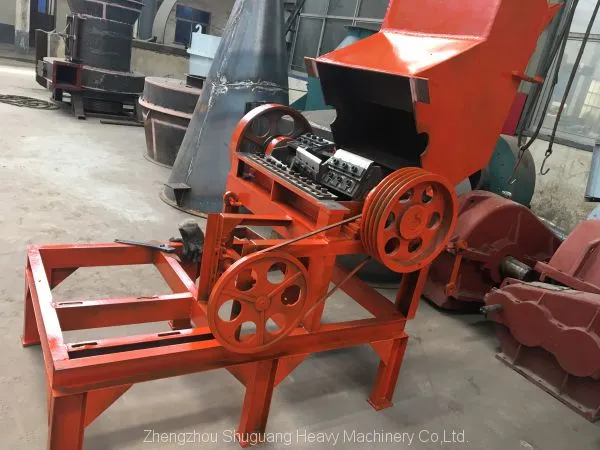

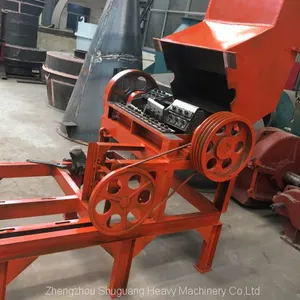

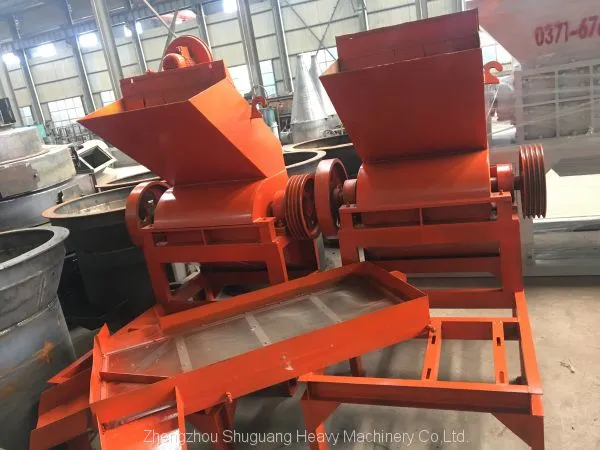

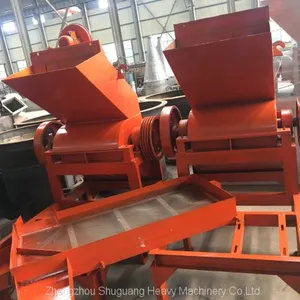

3.Rubber crusher

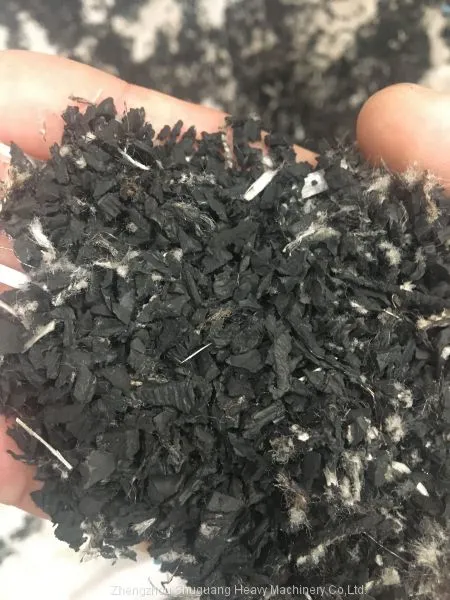

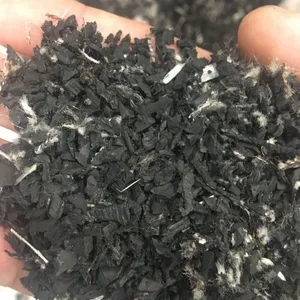

After shreded,the final pieces scarp will be sent into rubber crusher,it will crush the piece into small particles.
Rubber crushing machine is used to crush the rubber from the shredder machine, and the particle size can reach 1mm after crushing.
For the rubber with different shape and thickness, the machine adopts specific cutter body structure, high strength solid shaft and cutter frame which makes crushing efficiency and capacity increase obviously.
4.Seperator machine
The small particles through wire sepatate machine,it will seperate the rubber and residuary steel wire.
This machine can process tire rubber block with the steel wire into rubber granule and separate the steel wire out from rubber with the steel wire, Due to the special design of moving and fixed blades, the machine is high efficient and the blade is strong rigidity, high wear resistance and long service life;
Humanized design: more safety, easy operation and maintenance.

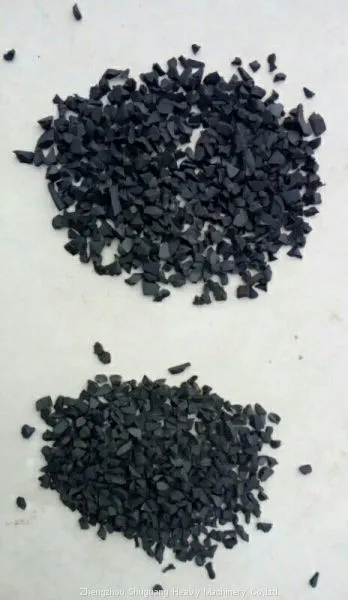

5.Rubber granule and screen

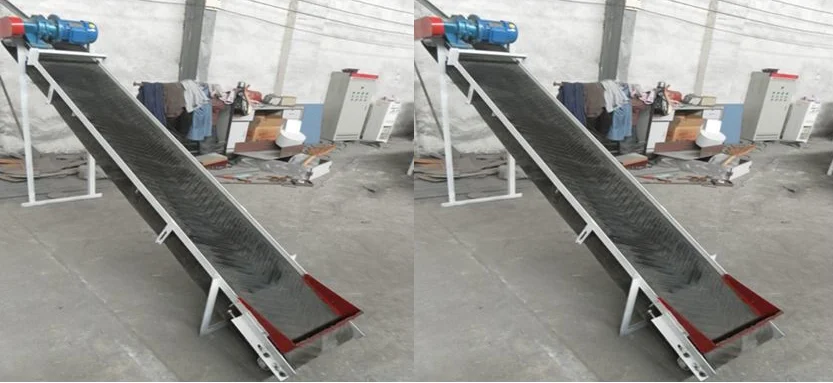

Through belt conveyor which with magnetic roller,wire steel particle will be collected,the rubber
will come into rubber granule machine and make it to smaller partical size,then will get the expected size particle by the screen machine.
6.Magnetic roller
Breif introduction of tire recycling machine production line
Shuguang,which has nearly 30 years production experience,is a company specialising in the manufacturing of equipment and plants for stones crushing and grinding,scrap metal and waste processing and in the design and development of customised machinery to fully meet every single requirement of the recycling industry.The company focuses to propose specific solutions capable to get the maximum value from each category of material and is based in each single stage on Innovation, Quality and Customer Service requirements. Each equipment for the processing and the recycling of ferrous scrap is designed for meeting the expectation of whoever buys them fully and for many years, seeking our sole goal, customer satisfaction.
Pre-sales
Answer customers'doubts within 24 hours.
Help customers select more suitable equipment;
Customize the equipment to meet the specific needs of customers.
On-sales
Check every part of the equipment carefully to make sure there is no problem.
Delivery before the specified delivery date and delivery to the customer's required location
After-sales
Provide on-site guidance for engineers to install equipment.
Provide replacement parts;
Provide 12-month warranty service;
Engineers regularly visit the site to inspect the equipment and provide guidance for production and maintenance;
When you encounter any problems in the production process, contact us online or send an email,we will provide solutions within 24 hours.
