Wood Shredder

Wood Shredder thumbnail-1
Wood Shredder thumbnail-2
Wood Shredder thumbnail-3
Wood Shredder thumbnail-4
Wood Shredder photo-1
Wood Shredder photo-2
Wood Shredder photo-3
Wood Shredder photo-4
US$ 1 - 100000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Shuguang
Place of Origin:
China
Type:
Other, industrial shredder
Contact Supplier Request Quote Chat Now
Zhengzhou Shuguang Heavy Machinery Co,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shuguang
Place of Origin China
Type Other, industrial shredder
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight 6000kg
Dimension(L*W*H) 3.4*1.25*2.2 m
Condition New
Power(W) According to model
Motor Type AC Motor
Capacity(t/h) According to model
Wood Shredder is a shearing Industry Shredder which is mainly used to smash miscellaneous Wood, edge material, tree technology and waste Wood. The main raw materials for cutting are miscellaneous wood, edge materials, tree technology, waste wood, and can also be used to cut irregular wood and furniture to process leftovers. The most advanced technology of this product is the closed shear structure adopted, and the control feeding mode determines the unity of the length of the wood. This product has the characteristics of reasonable structure, high quality of cutting materials, large output and small power, etc., which is the preferred equipment for cutting miscellaneous wood, edge material, tree technology and waste wood.
SHREDDER  SPECIFICATION



Model

Type

Power(kw)

Capacity(T/H)

Blades

Qty (pcs)

Reducer

Overall Size(m)



Weight (t)



SX-600

6-8 tooth

Φ200*20

11*2

03-0.5

30

350*2

2.6*1*2.1

2

Φ220*20

11*2

0.4-1

30

350*2

2.6*1.1*2.1

2.2



 SX-1000

6-8 tooth

Φ300*30

30*2

1-1.2

34

400*2

3.4*1.25*2.2

6

Φ300*40

37*2

1-1.5

26

500*2

3.4*1.25*2.2

6.3

Φ400*40

37*2

1-2

26

500*2

3.4*1.25*2.2

6.5

Φ400*50

45*2

1.5-2.5

20

650*2

3.4*1.25*2.2

7



 SX-1200

6-12 tooth

Φ300*40

45*2

2.5-3

30

650*2

3.8*1.25*2.2

8

Φ400*40

45*2

2.8-3.3

30

650*2

3.8*1.25*2.2

8.5

Φ500*40

55*2

3-3.5

30

650*2

3.8*1.25*2.2

9





 SX-1500

6-15 tooth

Φ300*30

55*2

3.8-4.5

50

750*2

4.4*1.5*2.5

11

Φ400*40

55*2

4-5

38

750*2

4.4*1.5*2.5

12

Φ500*50

75*2

4.5-5.5

30

750*2

4.4*1.5*2.5

14

Φ550*50

75*2

5-6

30

750*2

4.4*1.5*2.5

16





 SX-1800

9-18 tooth

Φ400*40

90*2

6-7

45

Zsy355*2

5.3*2.1*2.8

17

Φ550*50

90*2

7.5-8.5

36

Zsy355*2

5.3*2.1*2.8

18

Φ600*60

90*2

9-10

30

Zsy400*2

5.3*2.1*2.8

19





SX-2000

9-18 tooth

Φ550*50

110*2

10-13

40

Zsy400*2

6*2.2*3.5

22

Φ600*60

110*2

12-16

34

Zsy450*2

6*2.2*3.5

23

Φ650*60

110*2

15-20

34

Zsy450*2

6*2.2*3.5

25

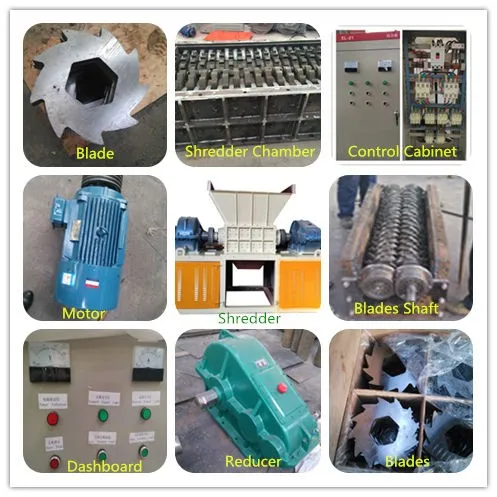

Shredder Parts

Industrial Shredders/Paper Shredder Machine

Industrial Shredders/Paper Shredder Machine

 Main Parts

Industrial Shredders/Paper Shredder Machine



Product Tags: Wood Shredder , industrial shredder , single shaft shredder , double shaft shredder , dual shaft shredder , tire shredder , tyre shredder , plastic shredder , leather shredder
