Home > Products > deep groove ball bearing > 6214 Deep Groove Ball Bearing 70*125*24mm SUNBEARING

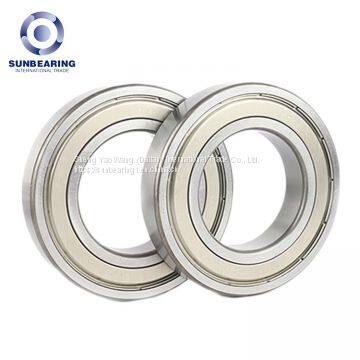

6214 Deep Groove Ball Bearing 70*125*24mm SUNBEARING
- 2000 Piece / Pieces per Month
- Dalian
- T/T L/C
- 14 days
- UCP205 Metric 2 Bolts Pillow Block Bearing 25*140*71mm SUNBEARING
- UCF213 4 Bolts Flange Bearing 65*187*69.7mm Cast Iron SUNBEARING
- UCP206 2 Bolts Metric Pillow Block Bearing 30mm Cast Iron SUNBEARING
- UCP208 40mm Pillow Block Housing Unit Bearing Cast Iron SUNBEARING
- SUCF206 4 Bolts Stainless Steel Flange Bearing with Insert Ball Bearing SUNBEARING
- 22213-EK Spherical Roller Bearing with Tapered Bore 65*120*31mm SUNBEARING
Product Details
Brand Name: | SUNBEARING | Place of Origin: | China | Model Number: | 6214 |
Number of Row: | Single Row | Seals Type: | ZZ | Precision Rating: | P5 |
Outside Diameter: | , | Bore Size: | , |
Product Description
Bore diameter: | 70 mm | Basic dynamic load rating | 63.7 kN |
Outside diameter: | 125 mm | Basic static load rating | 45 kN |
Overall width: | 24 mm | Fatigue load limit | 1.9 kN |
Rows of Balls | Single | Reference speed | 11000 r/min |
Outer ring type: | Unsplit | Limiting speed | 7000 r/min |
Radial clearance class | CN (Standard) | Mass | 1.09 kg |
Closure type: | ZZ | r1,2 | min. 1.5 mm |
Material | Chrome Steel | da | min. 79 mm |
Cage Material | Sheet Steel | Da | max. 116 mm |
Calculation factor | 14,4 | ra | max. 1.5 mm |
6214 deep groove ball bearings are one of the most common styles of ball bearings which support axial forces in both directions as well as radial forces.
Radial ball bearings are composed of an inner ring and an outer ring, plus a cage with a precision ball set.
Ball-bearing is one of the most common and used. It can support thrust and radial loads. Its speed of rotation is superior to other types of bearings.
Bearings facilitate the movement between a shaft and the parts attached to it. There is a lot of types depending on different aspects such as loads, accuracy, rolling elements, or speed.
Why Choose 6214 Bearing?This type of ball bearing is often the most popular because of its versatility. They are ideal for high speeds and can handle a good radial load capacity, all will very little maintenance required.
“Deep Groove” refers to the race (the groove where the balls rest). There is therefore a larger space between the inner and outer rings, than the diameter of the ball. This leaves space for the rubber seals.
Steel is the perfect material for ball bearings as it provides strength and reliability whilst being corrosion-resistant. Steel ball bearings are suitable for installing as they require very little maintenance and are designed to last.
